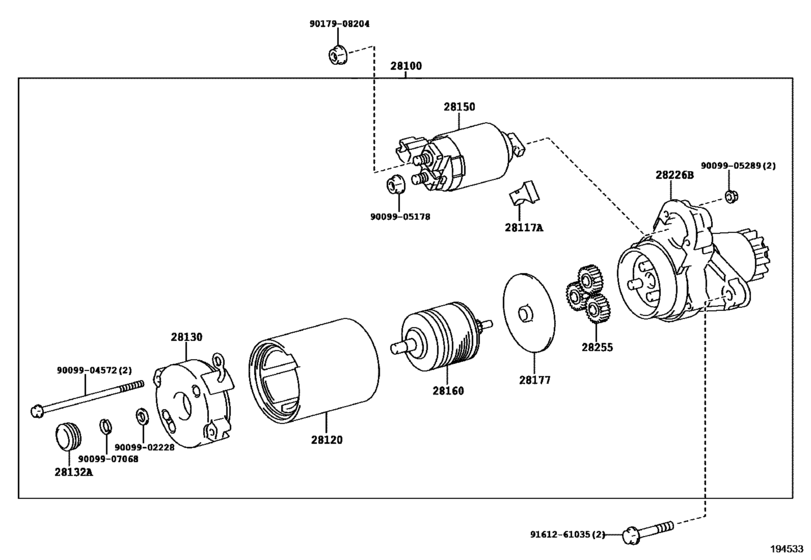

Starter ([01.2015 - ] 12V 1.7KW (1501- )2GRFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28100
|
28100
28100-28072 Starter Assy[01.2015 -] 2GRFE..GGH30 12V 1.7KW |
28100-28072 |
US $885.25 |
||
|
28117A
|
28117A
28117-28060
Seal, Rubber
[01.2015 -] 2GRFE..GGH30 |
28117-28060 |
— | ||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[01.2015 -] 2GRFE..GGH30 |
28120-28060 |
— | ||
|
28130
|
28130
28130-20020 Frame Assy, Starter Commutator End[01.2015 -] 2GRFE..GGH30 |
28130-20020 |
from US $31.08 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[01.2015 -] 2GRFE..GGH30 |
28132-28040 |
US $1.75 |
||
|
28150
|
28150
28150-40090 Switch Assy, Magnet Starter[01.2015 -] 2GRFE..GGH30 |
28150-40090 |
from US $130.46 |
||
|
28160
|
28160
28160-28040 Armature Assy, Starter[01.2015 -] 2GRFE..GGH30 |
28160-28040 |
US $211.41 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[01.2015 -] 2GRFE..GGH30 |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-28060
Starter Kit, Repair Service
[01.2015 -] 2GRFE..GGH30 |
28226-28060 |
— | ||
|
28255
|
28255
28255-20020
Gear, Planet
[01.2015 -] 2GRFE..GGH30 |
28255-20020 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
|
9009907068
|
9009907068
90099-07068 RING SNAP |
90099-07068 |
from US $0.28 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
US $1.60 |
||
