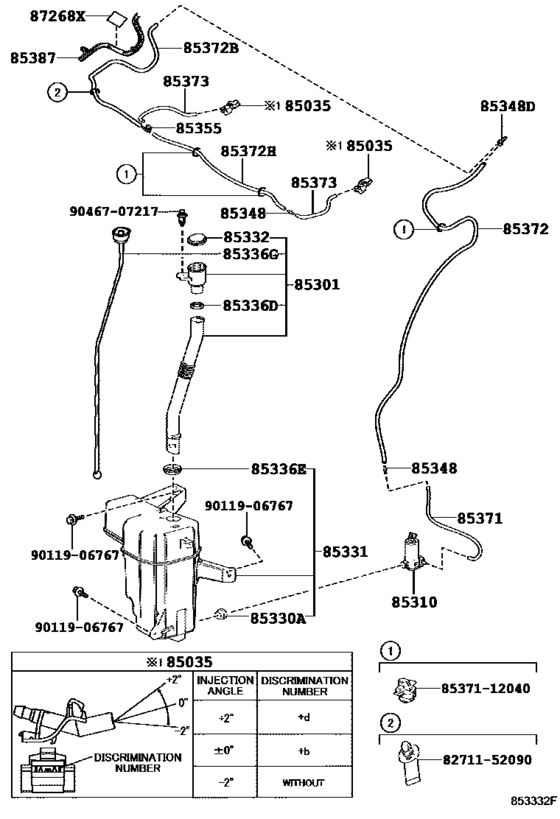

Windshield Washer ([01.2015 - ] (1501- )LHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-30220 Nozzle Sub-Assy, Washer[01.2015 -] AGH30,AYH30,GGH30 ANGLE 0 |
85381-30220 |
from US $9.43 |
||
|
85035
|
85035
85381-30230 Nozzle Sub-Assy, Washer[01.2015 -] AGH30,AYH30,GGH30 ANGLE -2 |
85381-30230 |
US $14.53 |
||
|
85035
|
85035
85381-30240 Nozzle Sub-Assy, Washer[01.2015 -] AGH30,AYH30,GGH30 ANGLE +2 |
85381-30240 |
from US $7.69 |
||
|
85301
|
85301
85319-58050
Inlet Sub-Assy, Washer
[01.2015 -] GGH30..LHD |
85319-58050 |
— | ||
|
85310
|
85310
85330-58010 Motor And Pump Assy, Windshield Washer[01.2015 - 01.2017] AGH30,AYH30,GGH30 |
85330-58010 |
US $82.99 |
||
|
85310
|
85310
85330-58011 Motor And Pump Assy, Windshield Washer[02.2017 -] AGH30,AYH30,GGH30 |
85330-58011 |
US $74.26 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.2015 -] AGH30,AYH30,GGH30 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.2015 -] AGH30,AYH30,GGH30 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[01.2015 -] AGH30,AYH30,GGH30 |
90068-32002 |
US $7.46 |
||
|
85331
|
85331
85315-58050 Jar Sub-Assy, Windshield Washer[01.2015 -] GGH30..LHD |
85315-58050 |
US $92.27 |
||
|
85332
|
85332
85316-58050
Cap, Windshield Washer Jar
[01.2015 -] GGH30..LHD |
85316-58050 |
— | ||
|
85336D
|
85336D
85336-42320 Packing, Windshield Washer Jar[01.2015 -] AGH30,AYH30,GGH30 |
85336-42320 |
US $1.27 |
||
|
85336E
|
85336E
85336-30160 Bush, Windshield Washer Jar[01.2015 -] AGH30,AYH30,GGH30 |
85336-30160 |
from US $3.32 |
||
|
85336G
|
85336G
85312-28010 Filter, Windshield Washer Jar[01.2015 -] AGH30,AYH30,GGH30 |
85312-28010 |
US $6.84 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.2015 -] AGH30,AYH30,GGH30 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-20200 Joint, Windshield Washer Hose, No.1[01.2015 -] AGH30,AYH30,GGH30 |
85355-20200 |
from US $1.03 |
||
|
85355
|
85355
85321-28020 Valve Sub-Assy, Washer[01.2015 -] AGH30,AYH30,GGH30 |
85321-28020 |
from US $10.65 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2015 -] AGH30,AYH30,GGH30 *H,L=300 |
90099-33080 |
US $9.43 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2015 -] AGH30,AYH30,GGH30 *H,L=1000 |
90099-33080 |
US $9.43 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2015 -] AGH30,AYH30,GGH30 *H,L=730 |
90099-33080 |
US $9.43 |
||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2015 -] AGH30,AYH30,GGH30 *H,L=590 |
90099-33080 |
US $9.43 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2015 -] AGH30,AYH30,GGH30 *H,L=180 |
90099-33080 |
US $9.43 |
||
|
85387
|
85387
85387-58220 Clamp No.1 (For Windseield Washer)[01.2015 -] AGH30,AYH30,GGH30 |
85387-58220 |
US $8 |
||
|
87268X
|
87268X
85389-58220 Protector[01.2015 -] AGH30,AYH30,GGH30 |
85389-58220 |
US $5.24 |
||
|
8271152090
|
8271152090
82711-52090 Clamp |
82711-52090 |
from US $0.96 |
||
|
8537112040
|
8537112040
85371-12040 Clamp, Rear Washer Hose |
85371-12040 |
from US $0.96 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $1.03 |
||
