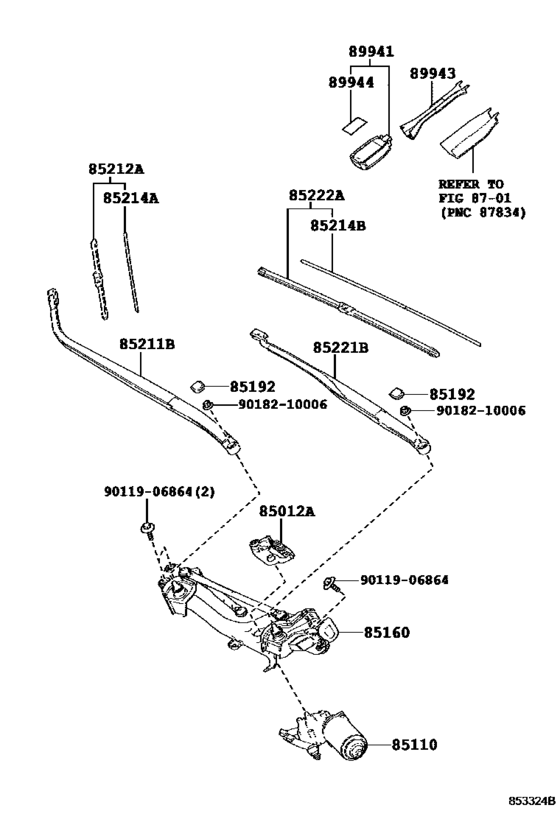

Windshield Wiper ([01.2015 - ] (1501- )LHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GGH30
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- Alphard III
- From
- 01.2015
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85012A
|
85012A
85012-58070
Crank Sub-Assy, Front Wiper
[01.2015 -] GGH30..LHD |
85012-58070 |
— | ||
|
85110
|
85110
85110-58050
Motor Assy, Windshield Wiper
[01.2015 -] GGH30..LHD |
85110-58050 |
— | ||
|
85160
|
85160
85150-58040
Link Assy, Windshield Wiper
[01.2015 -] GGH30..LHD |
85150-58040 |
— | ||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[01.2015 -] AGH30,AYH30,GGH30 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-58050
Arm, Front Wiper, Rh
[01.2015 -] GGH30..LHD |
85211-58050 |
— | ||
|
85212A
|
85212A
85212-58050
Blade, Fr Wiper, Rh
[01.2015 - 05.2015] GGH30..LHD |
85212-58050 |
— | ||
| replacement | |||||
|
85212A
|
85212A
85212-58051 Blade, Fr Wiper, Rh[01.2015 - 05.2015] GGH30..LHD |
85212-58051 |
US $21.55 |
||
|
85212A
|
85212A
85212-58051 Blade, Fr Wiper, Rh[06.2015 - 10.2016] GGH30..LHD |
85212-58051 |
US $21.55 |
||
|
85212A
|
85212A
85212-58052 Blade, Fr Wiper, Rh[11.2016 -] GGH30..LHD |
85212-58052 |
US $55.40 |
||
|
85214A
|
85214A
85214-58010 Rubber, Wiper, Lh[01.2015 - 02.2015] GGH30..LHD |
85214-58010 |
US $10.92 |
||
| replacement | |||||
|
85214A
|
85214A
85214-62020
Rubber, Wiper, Lh
[01.2015 - 02.2015] GGH30..LHD |
85214-62020 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-58070 Rubber, Wiper, Lh[01.2015 - 02.2015] GGH30..LHD |
85214-58070 |
US $12 |
||
|
85214A
|
85214A
85214-58070 Rubber, Wiper, Lh[11.2016 -] GGH30..LHD |
85214-58070 |
US $12 |
||
|
85214A
|
85214A
85214-62020
Rubber, Wiper, Lh
[02.2015 - 05.2015] GGH30..LHD |
85214-62020 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-58070 Rubber, Wiper, Lh[02.2015 - 05.2015] GGH30..LHD |
85214-58070 |
US $12 |
||
|
85214B
|
85214B
85214-58020 Rubber, Wiper, Rh[01.2015 - 10.2016] GGH30..LHD |
85214-58020 |
US $13.83 |
||
|
85214B
|
85214B
85214-58060 Rubber, Wiper, Rh[11.2016 -] GGH30..LHD |
85214-58060 |
US $15.20 |
||
|
85221B
|
85221B
85221-58070
Arm, Front Wiper, Lh
[01.2015 -] GGH30..LHD |
85221-58070 |
— | ||
|
85222A
|
85222A
85222-58050
Blade, Fr Wiper, Lh
[01.2015 - 04.2015] GGH30..LHD |
85222-58050 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-58051
Blade, Fr Wiper, Lh
[01.2015 - 04.2015] GGH30..LHD |
85222-58051 |
— | ||
|
85222A
|
85222A
85222-58051
Blade, Fr Wiper, Lh
[05.2015 - 10.2016] GGH30..LHD |
85222-58051 |
— | ||
|
85222A
|
85222A
85222-58052
Blade, Fr Wiper, Lh
[11.2016 - 12.2016] GGH30..LHD |
85222-58052 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-58053
Blade, Fr Wiper, Lh
[11.2016 - 12.2016] GGH30..LHD |
85222-58053 |
— | ||
|
85222A
|
85222A
85222-58053
Blade, Fr Wiper, Lh
[12.2016 - 01.2017] GGH30..LHD |
85222-58053 |
— | ||
|
85222A
|
85222A
85222-58054
Blade, Fr Wiper, Lh
[01.2017 -] GGH30..LHD |
85222-58054 |
— | ||
|
89941
|
89941
89941-52010 Sensor, Rain[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
89941-52010 |
from US $177.94 |
||
|
89943
|
89943
89943-47010 Cover, Rain SensorRAIN SENSOR [01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
89943-47010 |
US $23.56 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
89944-42010 |
from US $13.26 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.28 |
||
