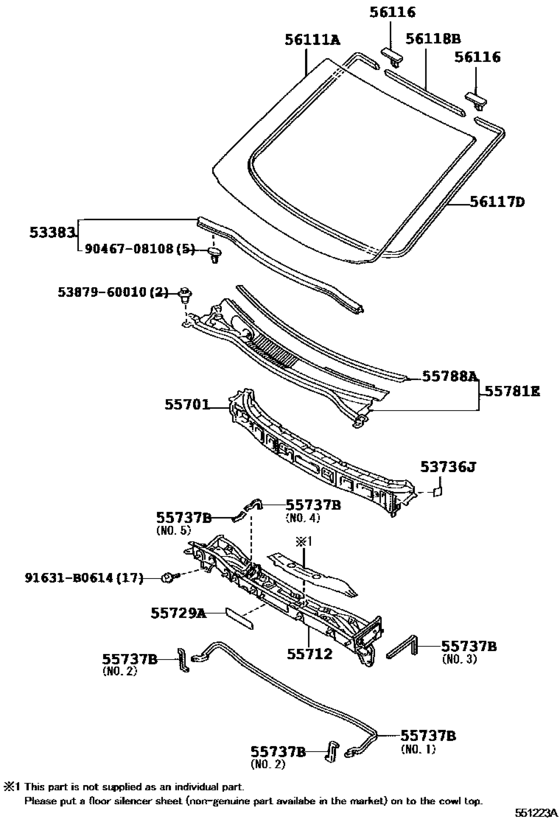

Cowl Panel & Windshield Glass ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-58010 Seal, Hood To Cowl Top[04.2005 -] MNH10 |
53383-58010 |
US $13.98 |
||
|
53736J
|
53736J
53736-58010 Seal, Fender Apron[04.2005 -] MNH10 |
53736-58010 |
US $13.40 |
||
|
55701
|
55701
55700-58010 Panel Sub-Assy, Cowl[04.2005 -] MNH10 |
55700-58010 |
US $171.81 |
||
|
55712
|
55712
55720-58011 Panel, Cowl Top Outside, Front[04.2005 -] MNH10 |
55720-58011 |
US $216.94 |
||
|
55729A
|
55729A
55729-28010 Cover, Cowl Panel Hole[04.2005 -] MNH10 |
55729-28010 |
US $8.44 |
||
|
55737B
|
55737B
55737-58010 Seal, Heater Air Duct Splash Shield, No.1[04.2005 - 04.2008] MNH10 NO.1 |
55737-58010 |
US $15.58 |
||
|
55737B
|
55737B
55737-58020 Seal, Heater Air Duct Splash Shield, No.1[04.2005 - 04.2008] MNH10 NO.2 |
55737-58020 |
US $6.70 |
||
|
55737B
|
55737B
55737-58030 Seal, Heater Air Duct Splash Shield, No.1[04.2005 - 04.2008] MNH10 NO.3 |
55737-58030 |
US $14.71 |
||
|
55737B
|
55737B
55737-58040 Seal, Heater Air Duct Splash Shield, No.1[04.2005 - 04.2008] MNH10 NO.4 |
55737-58040 |
US $18.64 |
||
|
55737B
|
55737B
55737-58050 Seal, Heater Air Duct Splash Shield, No.1[04.2005 - 04.2008] MNH10 NO.5 |
55737-58050 |
US $13.10 |
||
|
55781E
|
55781E
55708-58010
Louver Sub-Assy, Cowl Top Ventilator
[04.2005 -] MNH10 |
55708-58010 |
— | ||
| replacement | |||||
|
55781E
|
55781E
55708-58020 Louver Sub-Assy, Cowl Top Ventilator[04.2005 -] MNH10 |
55708-58020 |
US $159 |
||
|
55788A
|
55788A
55788-58010 Protector, Cowl Top Ventilator Louver[04.2005 -] MNH10 |
55788-58010 |
US $14.85 |
||
|
56111A
|
56111A
56101-58100
Glass, Windshield
[04.2005 -] MNH10..MZ *TL,T=4.76,GREEN |
56101-58100 |
— | ||
|
56116
|
56116
56116-35050 Stopper, Windshield Glass, No.1[04.2005 -] MNH10 |
56116-35050 |
from US $1.77 |
||
|
56117D
|
56117D
56117-58010
Dam, Window Glass Adhesive
[04.2005 -] MNH10 L=3734 |
56117-58010 |
— | ||
| replacement | |||||
|
56117D
|
56117D
56117-47010 Dam Kit, Back Window Glass Adhesive[04.2005 -] MNH10 L=3734 |
56117-47010 |
from US $21.94 |
||
|
56118B
|
56118B
56118-58010
Dam, Window Glass Adhesive, No.2
[04.2005 -] MNH10 L=782 |
56118-58010 |
— | ||
| replacement | |||||
|
56118B
|
56118B
64813-52010
Dam Kit, Window Glass
[04.2005 -] MNH10 L=782 |
64813-52010 |
— | ||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
5387960010
|
5387960010
53879-60010 Retainer, Front Fender Liner |
53879-60010 |
from US $0.84 |
||
|
9046708108
|
9046708108
90467-08108 Clip(For Hood To Cowl Top Seal) |
90467-08108 |
from US $0.78 |
||
