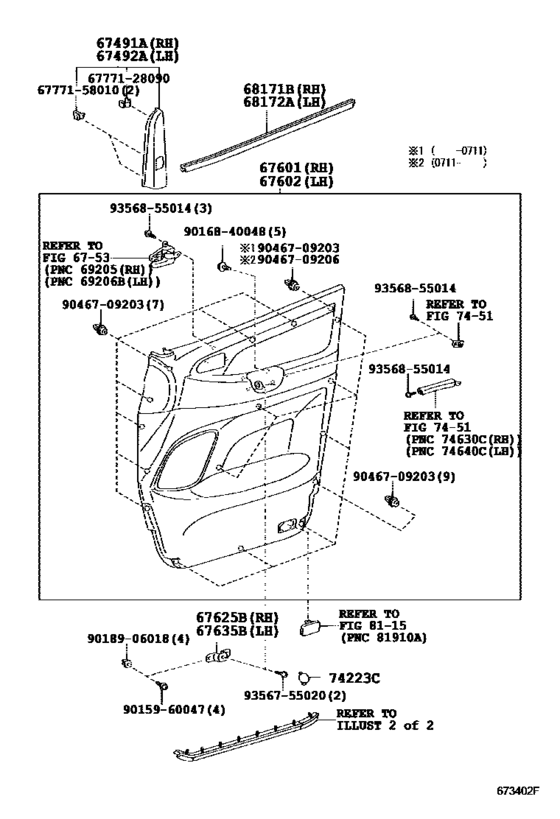

Front Door Panel & Glass ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-58010 Garnish, Front Door Lower Frame Bracket, Rh[04.2005 -] MNH10 |
67491-58010 |
US $31.16 |
||
|
67492A
|
67492A
67492-58010 Garnish, Front Door Lower Frame Bracket, Lh[04.2005 -] MNH10 |
67492-58010 |
US $31.16 |
||
|
67601
|
67601
67610-58140-A0 Board Sub-Assy, Front Door Trim, Rh[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
67610-58140-A0 |
US $637.73 |
||
|
67602
|
67602
67620-58140-A0 Board Sub-Assy, Front Door Trim, Lh[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
67620-58140-A0 |
US $637.73 |
||
|
67625B
|
67625B
67625-58010 Bracket, Door Trim, No.1 Rh[04.2005 -] MNH10 |
67625-58010 |
US $5.10 |
||
|
67635B
|
67635B
67625-58010 Bracket, Door Trim, No.1 Rh[04.2005 -] MNH10 |
67625-58010 |
US $5.10 |
||
|
68171B
|
68171B
68171-58010 Weatherstrip, Front Door Glass, Inner Rh[04.2005 -] MNH10 |
68171-58010 |
US $51.91 |
||
|
68172A
|
68172A
68172-58010 Weatherstrip, Front Door Glass, Inner Lh[04.2005 -] MNH10 |
68172-58010 |
US $51.91 |
||
|
74223C
|
74223C
74223-58010-E0 Cap, Door Armrest[04.2005 - 04.2008] MNH10..MZ ORCHID BROWN,TRIM0# |
74223-58010-E0 |
US $1.60 |
||
| replacement | |||||
|
74223C
|
74223C
74223-58010-B0 Cap, Door Armrest[04.2005 - 04.2008] MNH10..MZ ORCHID BROWN,TRIM0# |
74223-58010-B0 |
US $1.56 |
||
|
6777128090
|
6777128090
67771-28090 Retainer, Door Trim |
67771-28090 |
US $2.34 |
||
|
6777158010
|
6777158010
67771-58010 Clip, Front Pillar Garnish |
67771-58010 |
from US $1.79 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.11 |
||
|
9016840048
|
9016840048
90168-40048 New Genuine Part |
90168-40048 |
US $1.08 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9046709203
|
9046709203
90467-09203 Clip(For Rear Floor Mat Plate) |
90467-09203 |
from US $0.88 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.47 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
