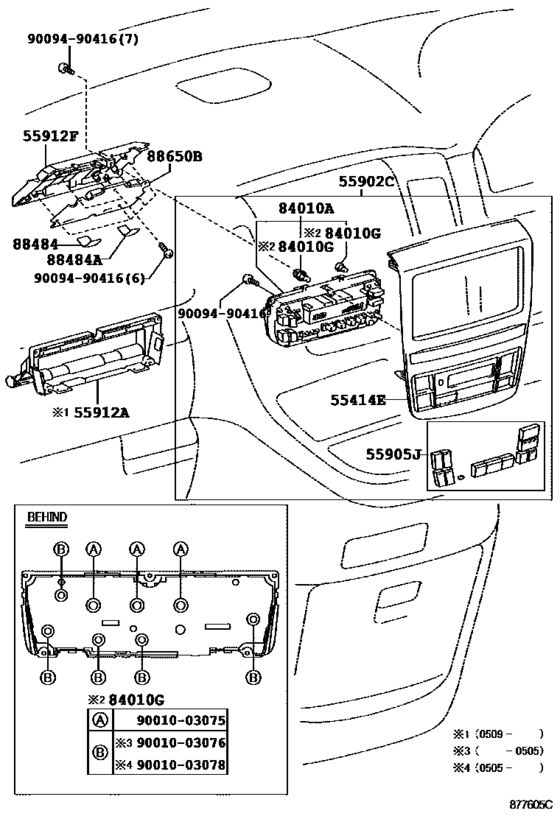

Heating & Air Conditioning - Control & Air Duct ([04.2005 - ] FRONT CONTROL (0504- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55414E
|
55414E
55414-58040
Panel, Instrument Cluster Finish, End
[04.2005 - 08.2005] MNH10 |
55414-58040 |
— | ||
| replacement | |||||
|
55414E
|
55414E
55414-58041
Panel, Instrument Cluster Finish, End
[04.2005 - 08.2005] MNH10 |
55414-58041 |
— | ||
|
55414E
|
55414E
55414-58041
Panel, Instrument Cluster Finish, End
[09.2005 - 04.2008] MNH10 |
55414-58041 |
— | ||
|
55902C
|
55902C
55902-58080
Panel Sub-Assy, Air Conditioner
[04.2005 - 08.2005] MNH10..MZ |
55902-58080 |
— | ||
| replacement | |||||
|
55902C
|
55902C
55902-58081
Panel Sub-Assy, Air Conditioner
[04.2005 - 08.2005] MNH10..MZ |
55902-58081 |
— | ||
|
55902C
|
55902C
55902-58081
Panel Sub-Assy, Air Conditioner
[09.2005 -] MNH10..MZ |
55902-58081 |
— | ||
|
55905J
|
55905J
55905-58100
Knob Sub-Assy, Control
[04.2005 -] MNH10..MZ |
55905-58100 |
— | ||
|
55912A
|
55912A
55912-58060
Housing, Heater Control
[09.2005 -] MNH10 |
55912-58060 |
— | ||
|
55912F
|
55912F
55912-58050
Housing, Heater Control
[04.2005 -] MNH10 |
55912-58050 |
— | ||
|
84010A
|
84010A
84012-58100
Control & Panel Assy, Integration
[04.2005 -] MNH10..MZ |
84012-58100 |
— | ||
|
84010G
|
84010G
90010-03075
Bulb, Integration Control & Panel
[04.2005 -] MNH10 14V 0.84W,TYPE A:REFER ILLUST. |
90010-03075 |
— | ||
|
84010G
|
84010G
90010-03076
Bulb, Integration Control & Panel
[04.2005 - 05.2005] MNH10 14V 0.84W,TYPE B:REFER ILLUST. |
90010-03076 |
— | ||
|
84010G
|
84010G
90010-03078
Bulb, Integration Control & Panel
[05.2005 -] MNH10 14V 0.84W,TYPE B:REFER ILLUST. |
90010-03078 |
— | ||
|
88484
|
88484
88484-58040
Wire, Cooler, No.1
[04.2005 -] MNH10 |
88484-58040 |
— | ||
|
88484A
|
88484A
88484-58050
Wire, Cooler, No.1
[04.2005 -] MNH10 |
88484-58050 |
— | ||
|
88650B
|
88650B
88650-58140
Amplifier Assy, Airconditioner
[04.2005 -] MNH10 |
88650-58140 |
— | ||
|
9009490416
|
9009490416
90094-90416
New Genuine Part
|
90094-90416 |
— | ||
