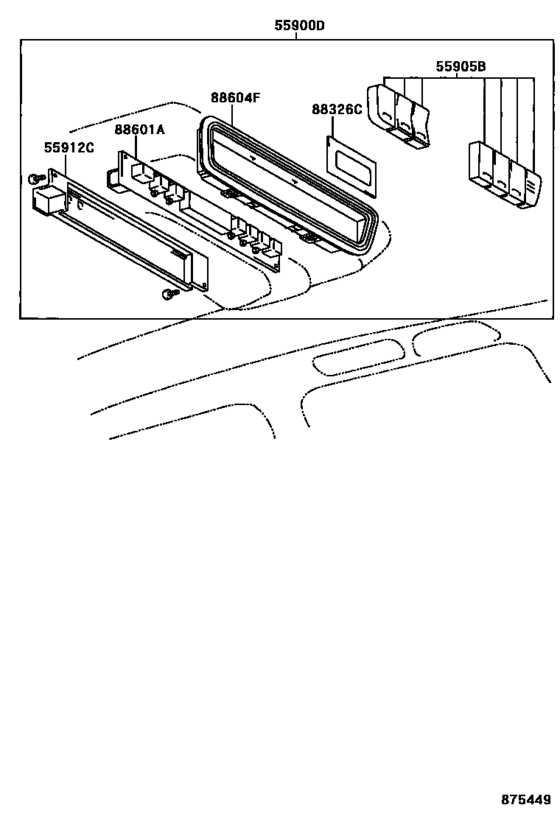

Heating & Air Conditioning - Control & Air Duct ([12.2003 - ] REAR CONTROL (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900D
|
55900D
84010-58020-A0 Control Assy, Air Conditioner, No.2[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
84010-58020-A0 |
US $267.90 |
||
|
55905B
|
55905B
55905-58050-A0 Knob, Heater Control, No.2[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
55905-58050-A0 |
US $57.51 |
||
|
55912C
|
55912C
55912-58010 Housing, Heater Control[04.2005 -] MNH10 |
55912-58010 |
US $14.71 |
||
|
88326C
|
88326C
88326-58010 Plate, Cover[04.2005 -] MNH10 |
88326-58010 |
US $10.92 |
||
|
88601A
|
88601A
84012-58050 Switch Sub-Assy, Cooler Control[04.2005 -] MNH10 |
84012-58050 |
US $198.02 |
||
|
88604F
|
88604F
87491-58020-A0 Panel Sub-Assy, Cooler Control[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
87491-58020-A0 |
US $18.20 |
