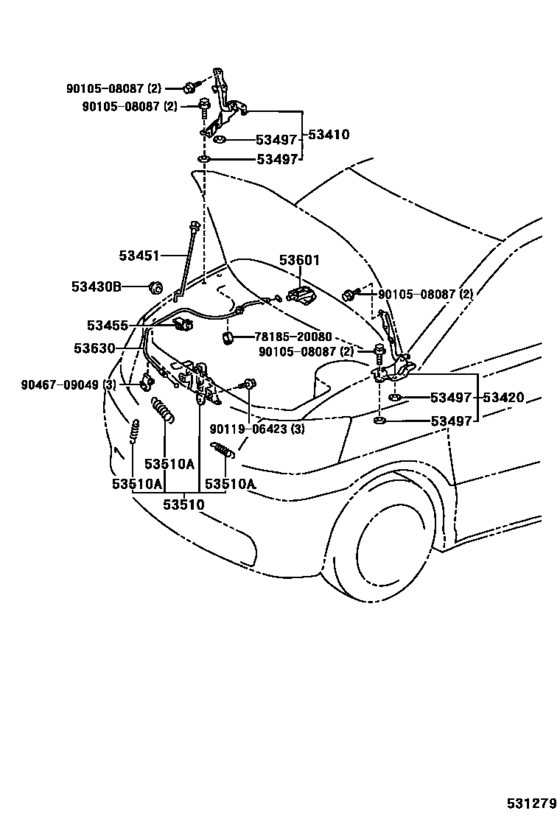

Hood Lock & Hinge ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-58010 Hinge Assy, Hood, Rh[04.2005 -] MNH10 |
53410-58010 |
US $34.62 |
||
|
53420
|
53420
53420-58010 Hinge Assy, Hood, Lh[04.2005 -] MNH10 |
53420-58010 |
US $34.65 |
||
|
53430B
|
53430B
90480-15028 Grommet(For Hood Support)[04.2005 -] MNH10 |
90480-15028 |
from US $1.83 |
||
|
53451
|
53451
53440-58020 Rod, Hood Support[04.2005 -] MNH10 |
53440-58020 |
US $16.60 |
||
|
53455
|
53455
53455-28020 Clamp, Hood Support Rod[04.2005 -] MNH10 |
53455-28020 |
from US $2.89 |
||
|
53497
|
53497
53497-12050
Pad, Hood Hinge, No.1
[04.2005 -] MNH10 T=1.0 |
53497-12050 |
— | ||
| replacements | |||||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[04.2005 -] MNH10 T=1.0 |
53497-42010 |
US $1.79 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[04.2005 -] MNH10 T=1.0 |
53497-12070 |
US $1.79 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[04.2005 -] MNH10 T=2.0 |
53497-20070 |
US $2.51 |
||
|
53510
|
53510
53510-58010 Lock Assy, Hood[04.2005 -] MNH10 |
53510-58010 |
US $38.36 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[04.2005 -] MNH10 WD=1.2,CW=8.5 |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-16077 Spring, Tension(For Hood Lock)[04.2005 -] MNH10 WD=1.6,CW=12 |
90506-16077 |
US $2.15 |
||
|
53510A
|
53510A
90905-06005 Spring, Tension(For Hood Lock)[04.2005 -] MNH10 WD=0.9,CW=21.25 |
90905-06005 |
US $1.60 |
||
|
53601
|
53601
53601-52010-A0 Lever Sub-Assy, Hood Lock Control[04.2005 - 04.2008] MNH10..MZ IVORY,TRIM0# |
53601-52010-A0 |
from US $2.55 |
||
|
53630
|
53630
53630-58020 Cable Assy, Hood Lock Control[04.2005 -] MNH10 |
53630-58020 |
US $27.05 |
||
|
7818520080
|
7818520080
78185-20080 Clamp, Accelerator Control Cable, No.2 |
78185-20080 |
US $2.20 |
||
|
9010508087
|
9010508087
90105-08087 New Genuine Part |
90105-08087 |
US $2.15 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9046709049
|
9046709049
90467-09049 Clamp, No.3(For Luggage Door Lock Control Cable) |
90467-09049 |
US $2.87 |
||
