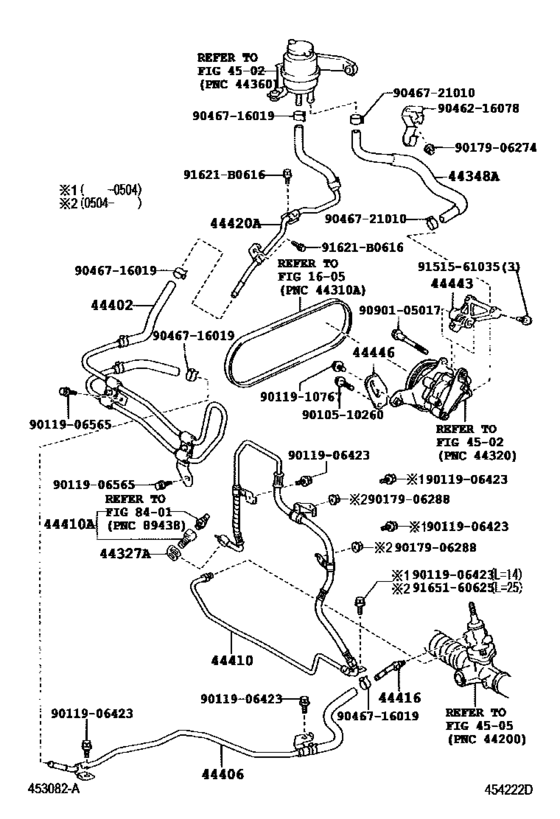

Power Steering Tube ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[04.2005 -] MNH10 |
44327-30030 |
from US $2.15 |
||
|
44348A
|
44348A
44348-58020 Hose, Oil Reservoir To Pump, No.1[04.2005 - 04.2008] MNH10 |
44348-58020 |
from US $98.40 |
||
|
44402
|
44402
44402-58011 Cooler Sub-Assy, Power Steering Oil, No.1[04.2005 -] MNH10 |
44402-58011 |
US $126.28 |
||
|
44406
|
44406
44406-58011 Tube Sub-Assy, Return[04.2005 -] MNH10 |
44406-58011 |
US $71.74 |
||
|
44410
|
44410
44410-58051 Tube Assy, Pressure Feed[04.2005 - 09.2005] MNH10 |
44410-58051 |
US $474.66 |
||
| replacement | |||||
|
44410
|
44410
44410-58070 Tube Assy, Pressure Feed[04.2005 - 09.2005] MNH10 |
44410-58070 |
US $546 |
||
|
44410
|
44410
44410-58070 Tube Assy, Pressure Feed[10.2005 -] MNH10 |
44410-58070 |
US $546 |
||
|
44410A
|
44410A
44338-33090 Bolt, Union(For Pressure Feed Tube)[04.2005 - 04.2008] MNH10 |
44338-33090 |
US $57.79 |
||
|
44416
|
44416
44416-28370 Tube, Return(For Steering Gear Outlet)[04.2005 -] MNH10 |
44416-28370 |
US $15.59 |
||
|
44420A
|
44420A
44420-58010 Tube Assy, Return[04.2005 -] MNH10 |
44420-58010 |
US $126.28 |
||
|
44443
|
44443
44443-33041 Bracket, Pump[04.2005 - 04.2008] MNH10 |
44443-33041 |
US $49.80 |
||
|
44446
|
44446
44446-28030 Strut, Adjusting[04.2005 -] MNH10 |
44446-28030 |
US $10.48 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
9010510260
|
9010510260
90105-10260 New Genuine Part |
90105-10260 |
US $2.62 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011906565
|
9011906565
90119-06565 BOLT WWASHER |
90119-06565 |
US $1.97 |
||
|
9011910767
|
9011910767
90119-10767 New Genuine Part |
90119-10767 |
US $8.06 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906288
|
9017906288
90179-06288 NUT |
90179-06288 |
from US $0.86 |
||
|
9046216078
|
9046216078
90462-16078 New Genuine Part |
90462-16078 |
US $5.97 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9090105017
|
9090105017
90901-05017 New Genuine Part |
90901-05017 |
US $5.10 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.94 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.87 |
||
