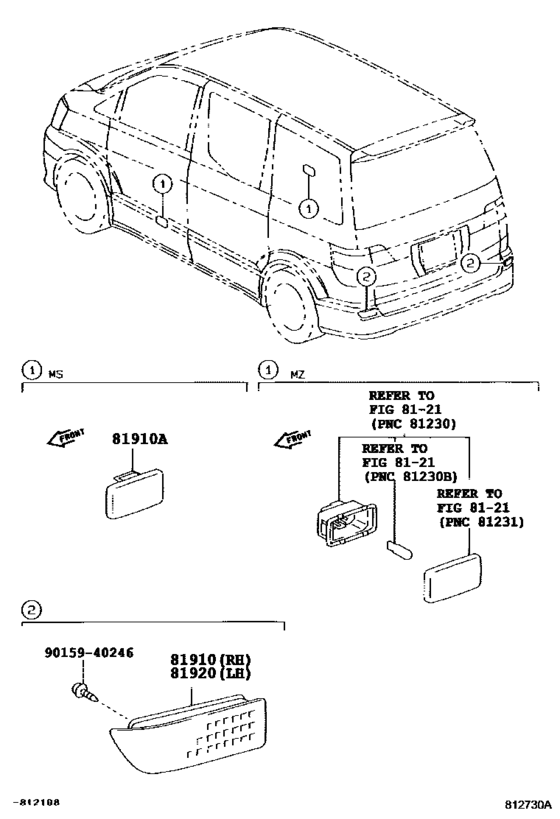

Reflex Reflector ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81910
|
81910
81910-13020 Reflector Assy, Reflex, Rh[04.2005 - 12.2006] MNH10 |
81910-13020 |
US $23.44 |
||
| replacement | |||||
|
81910
|
81910
81910-13022 Reflector Assy, Reflex, RhREFLEX, RH [04.2005 - 12.2006] MNH10 |
81910-13022 |
from US $20.85 |
||
|
81910
|
81910
81910-13021
Reflector Assy, Reflex, Rh
[01.2007 - 04.2008] MNH10 |
81910-13021 |
— | ||
| replacement | |||||
|
81910
|
81910
81910-13022 Reflector Assy, Reflex, RhREFLEX, RH [01.2007 - 04.2008] MNH10 |
81910-13022 |
from US $20.85 |
||
|
81920
|
81920
81920-13020 Reflector Assy, Reflex, Lh[04.2005 - 12.2006] MNH10 |
81920-13020 |
US $28.39 |
||
| replacement | |||||
|
81920
|
81920
81920-13022 Reflector Assy, Reflex, Lh[04.2005 - 12.2006] MNH10 |
81920-13022 |
from US $20.44 |
||
|
81920
|
81920
81920-13021
Reflector Assy, Reflex, Lh
[01.2007 - 04.2008] MNH10 |
81920-13021 |
— | ||
| replacement | |||||
|
81920
|
81920
81920-13022 Reflector Assy, Reflex, Lh[01.2007 - 04.2008] MNH10 |
81920-13022 |
from US $20.44 |
||
|
9015940246
|
9015940246
90159-40246 SCREW WWASHER |
90159-40246 |
from US $0.49 |
||
