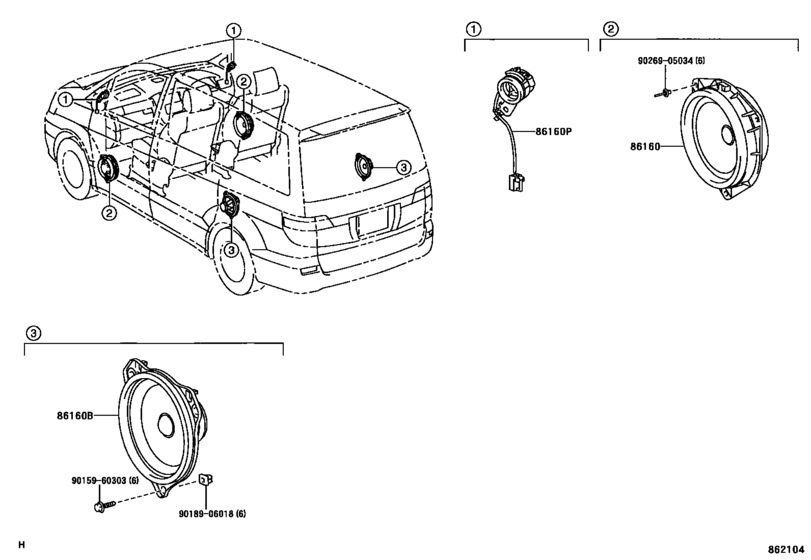

Speaker ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MZ
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-2B580 Speaker Assy, Front No.1[04.2005 -] MNH10 |
86160-2B580 |
US $154.16 |
||
|
86160B
|
86160B
86160-58070 Speaker Assy, Rear[04.2005 -] MNH10 |
86160-58070 |
US $154.34 |
||
|
86160P
|
86160P
86160-58010 Speaker Assy, Front No.2[04.2005 -] MNH10 RH |
86160-58010 |
US $77.17 |
||
|
86160P
|
86160P
86160-58020 Speaker Assy, Front No.2[04.2005 -] MNH10 LH |
86160-58020 |
US $77.17 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
