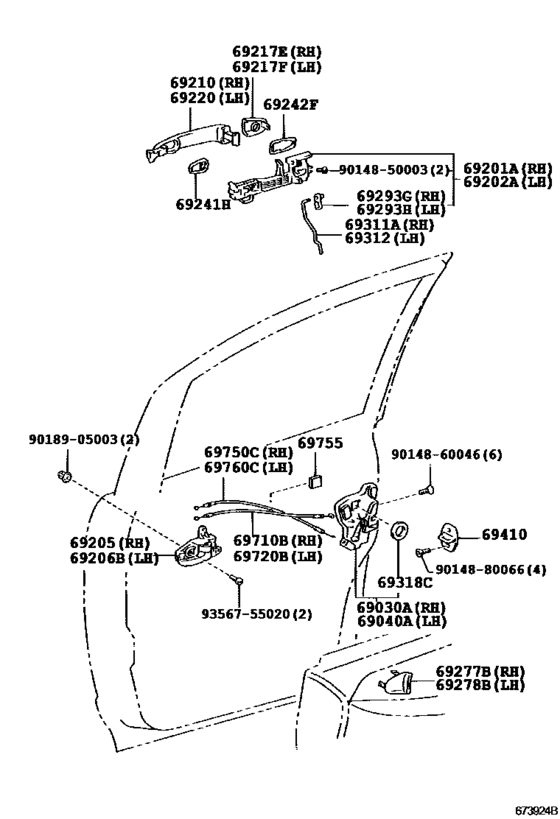

Front Door Lock & Handle ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-33241 Lock Assy, Front Door W/motor, Rh[04.2005 -] MNH10 |
69030-33241 |
US $288 |
||
|
69040A
|
69040A
69040-60170 Lock Assy, Front Door W/motor, Lh[04.2005 -] MNH10 |
69040-60170 |
US $200.93 |
||
|
69201A
|
69201A
69201-28010 Frame Sub-Assy, Front Door Outside Handle, Rh[04.2005 -] MNH10 |
69201-28010 |
US $73.08 |
||
|
69202A
|
69202A
69202-28010 Frame Sub-Assy, Front Door Outside Handle, Lh[04.2005 -] MNH10 |
69202-28010 |
US $73.08 |
||
|
69205
|
69205
69205-20180-B0 Handle Sub-Assy, Front Door Inside, Rh[04.2005 - 04.2008] MNH10..MS DK.GRAY,TRIM1# |
69205-20180-B0 |
US $34.07 |
||
|
69206B
|
69206B
69206-20180-B0 Handle Sub-Assy, Front Door Inside, Lh[04.2005 - 04.2008] MNH10..MS DK.GRAY,TRIM1# |
69206-20180-B0 |
US $34.07 |
||
|
69210
|
69210
69210-58010 Handle Assy, Front Door, Outside Rh[04.2005 - 04.2008] MNH10..MS *CR |
69210-58010 |
from US $24.41 |
||
|
69217E
|
69217E
69217-58010 Cover, Front Door Outside Handle[04.2005 - 04.2008] MNH10..MS *CR |
69217-58010 |
from US $5.30 |
||
|
69217F
|
69217F
69217-58010 Cover, Front Door Outside Handle[04.2005 - 04.2008] MNH10..MS *CR |
69217-58010 |
from US $5.30 |
||
|
69220
|
69220
69210-58010 Handle Assy, Front Door, Outside Rh[04.2005 - 04.2008] MNH10..MS *CR |
69210-58010 |
from US $24.41 |
||
|
69241H
|
69241H
69241-28060 Pad, Front Door Outside Handle, Rh[04.2005 -] MNH10 |
69241-28060 |
from US $0.84 |
||
|
69242F
|
69242F
69242-28020 Pad, Rear Door Outside Handle, Front[04.2005 -] MNH10 |
69242-28020 |
US $9.68 |
||
|
69277B
|
69277B
69297-24020-C0 Bezel, Front Door Inside Handle, Rh[04.2005 - 04.2008] MNH10 BLACK |
69297-24020-C0 |
US $4.89 |
||
|
69278B
|
69278B
69298-24020-C0 Bezel, Front Door Inside Handle, Lh[04.2005 - 04.2008] MNH10 BLACK |
69298-24020-C0 |
US $4.40 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[04.2005 -] MNH10 |
69293-12030 |
from US $1.97 |
||
|
69293H
|
69293H
69293-12040 Snap, Front Door Outside Handle[04.2005 -] MNH10 |
69293-12040 |
from US $1.93 |
||
|
69311A
|
69311A
69311-58010 Rod, Front Door Lock Open, Rh[04.2005 -] MNH10 |
69311-58010 |
US $9.17 |
||
|
69312
|
69312
69312-58010 Rod, Front Door Lock Open, Lh[04.2005 -] MNH10 |
69312-58010 |
US $9.17 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[04.2005 -] MNH10 |
69318-51010 |
US $2.15 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[04.2005 -] MNH10 |
69410-33010 |
from US $18.04 |
||
|
69710B
|
69710B
69710-58010 Cable Assy, Front Door Lock Remote Control, Rh[04.2005 -] MNH10 |
69710-58010 |
US $21.69 |
||
|
69720B
|
69720B
69710-58010 Cable Assy, Front Door Lock Remote Control, Rh[04.2005 -] MNH10 |
69710-58010 |
US $21.69 |
||
|
69750C
|
69750C
69750-58010 Cable Assy, Front Door Inside Locking, Rh[04.2005 -] MNH10 |
69750-58010 |
US $25.04 |
||
|
69755
|
69755
69759-58010 Silencer, Front Door Lock Link[04.2005 -] MNH10 |
69759-58010 |
US $3.93 |
||
|
69760C
|
69760C
69750-58010 Cable Assy, Front Door Inside Locking, Rh[04.2005 -] MNH10 |
69750-58010 |
US $25.04 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.66 |
||
|
9014860046
|
9014860046
90148-60046 New Genuine Part |
90148-60046 |
US $0.84 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.66 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
