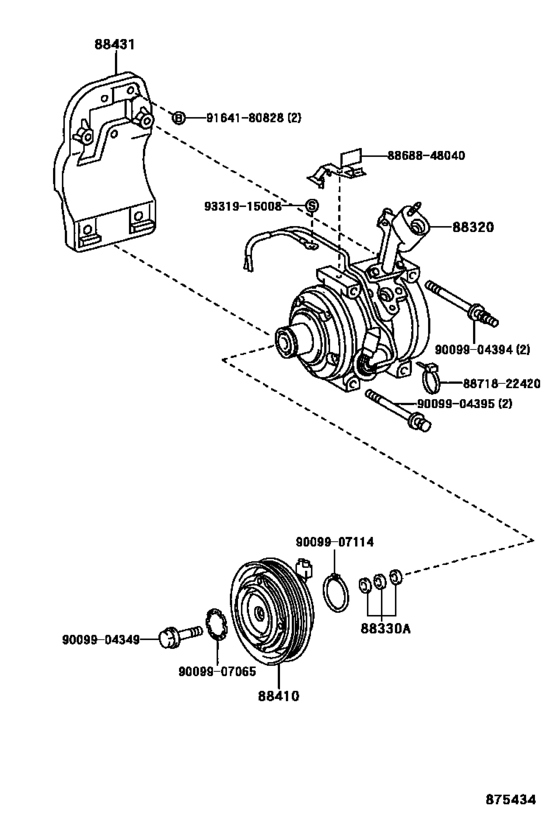

Heating & Air Conditioning - Compressor ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-28400
Compressor Assy, Cooler
[04.2005 -] MNH10 |
88320-28400 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[04.2005 -] MNH10 |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-28270
Clutch Assy, Magnet
[04.2005 -] MNH10 |
88410-28270 |
— | ||
|
88431
|
88431
88431-33041
Bracket, Compressor Mounting, No.1
[04.2005 -] MNH10 |
88431-33041 |
— | ||
|
8868848040
|
8868848040
88688-48040
Bracket, Cooler Compressor
|
88688-48040 |
— | ||
|
8871822420
|
8871822420
88718-22420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22420 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904394
|
9009904394
90099-04394
Bolt
|
90099-04394 |
— | ||
|
9009904395
|
9009904395
90099-04395 BOLT W-WASHER |
90099-04395 |
from US $1.68 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9164180828
|
9164180828
91641-80828 New Genuine Part |
91641-80828 |
US $1.14 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
