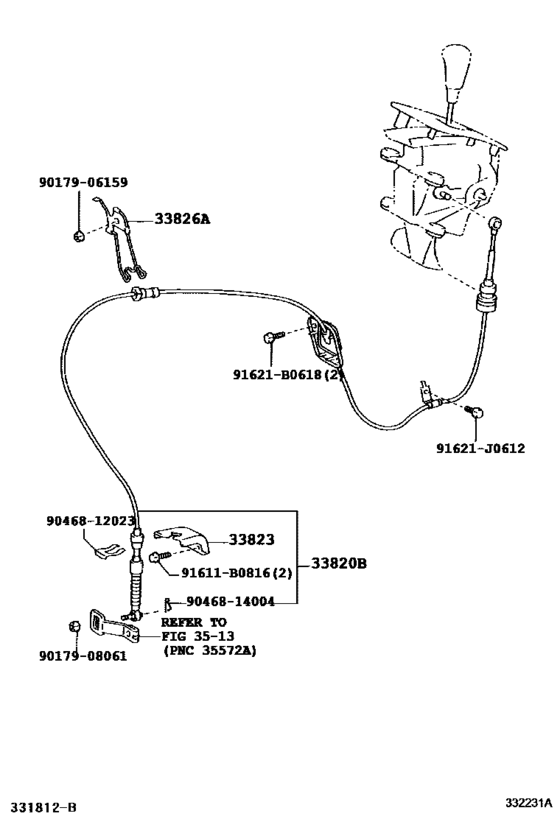

Shift Lever & Retainer ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33820B
|
33820B
33820-58010 Cable Assy, Transmission Control[04.2005 -] MNH10 |
33820-58010 |
US $174.72 |
||
|
33823
|
33823
33823-28240 Bracket, Transmission Control Cable, No.1[04.2005 -] MNH10 |
33823-28240 |
US $16.16 |
||
|
33826A
|
33826A
33826-58010 Bracket, Transmission Control Cable, No.2[04.2005 -] MNH10 |
33826-58010 |
US $6.41 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.25 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9046812023
|
9046812023
90468-12023 CLIP |
90468-12023 |
from US $1.97 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
