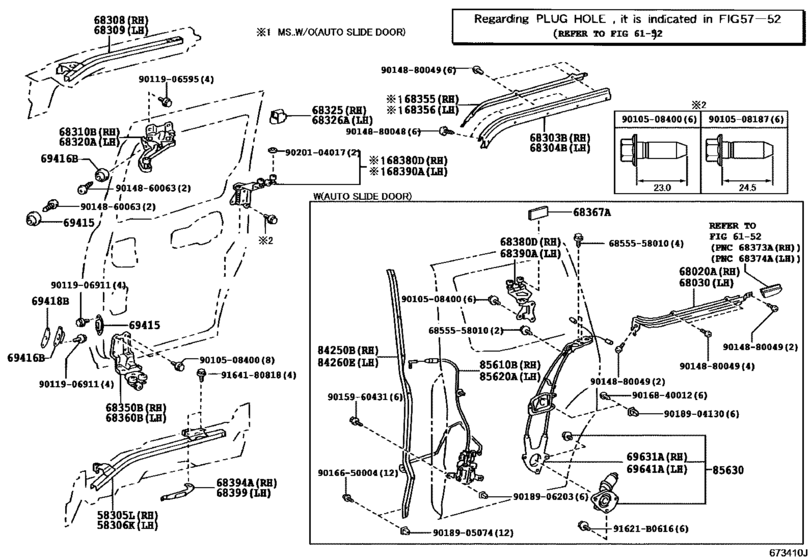

Slide Roller & Rail ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58305L
|
58305L
58305-58010 Guide Sub-Assy, Slide Door Lower Roller, Rh[04.2005 - 04.2008] MNH10 |
58305-58010 |
US $54.89 |
||
|
58306K
|
58306K
58306-58010 Guide Sub-Assy, Slide Door Lower Roller, Lh[04.2005 - 04.2008] MNH10 |
58306-58010 |
US $54.89 |
||
|
68020A
|
68020A
68020-58010 Guide Assy, Slide Door Cable, Rh[04.2005 -] MNH10 |
68020-58010 |
from US $42.11 |
||
|
68030
|
68030
68030-58010 Guide Assy, Slide Door Cable[04.2005 -] MNH10 |
68030-58010 |
US $97.84 |
||
|
68303B
|
68303B
68303-58012 Rail Sub-Assy, Slide Door, Center Rh[04.2005 -] MNH10 |
68303-58012 |
US $152.88 |
||
|
68304B
|
68304B
68304-58012 Rail Sub-Assy, Slide Door, Center Lh[04.2005 -] MNH10 |
68304-58012 |
US $152.88 |
||
|
68308
|
68308
68308-58011 Rail Sub-Assy, Slide Door, Upper Rh[04.2005 - 04.2008] MNH10 |
68308-58011 |
US $49.80 |
||
|
68309
|
68309
68309-58011 Rail Sub-Assy, Slide Door, Upper Lh[04.2005 - 04.2008] MNH10 |
68309-58011 |
US $49.80 |
||
|
68310B
|
68310B
68310-58010 Roller Assy, Slide Door, Upper Rh[04.2005 -] MNH10 |
68310-58010 |
US $72.80 |
||
|
68320A
|
68320A
68320-58010 Roller Assy, Slide Door, Upper, Lh[04.2005 -] MNH10 |
68320-58010 |
US $72.80 |
||
|
68325
|
68325
68325-58014
Cushion, Slide Door Upper Rail, Rh
[04.2005 - 03.2006] MNH10 |
68325-58014 |
— | ||
| replacement | |||||
|
68325
|
68325
68325-58015 Cushion, Slide Door Upper Rail, Rh[04.2005 - 03.2006] MNH10 |
68325-58015 |
US $12.23 |
||
|
68325
|
68325
68325-58015 Cushion, Slide Door Upper Rail, Rh[04.2006 -] MNH10 |
68325-58015 |
US $12.23 |
||
|
68326A
|
68326A
68326-58014
Cushion, Slide Door Upper Rail, Lh
[04.2005 - 03.2006] MNH10 |
68326-58014 |
— | ||
| replacement | |||||
|
68326A
|
68326A
68326-58015 Cushion, Slide Door Upper Rail, Lh[04.2005 - 03.2006] MNH10 |
68326-58015 |
US $12.23 |
||
|
68326A
|
68326A
68326-58015 Cushion, Slide Door Upper Rail, Lh[04.2006 -] MNH10 |
68326-58015 |
US $12.23 |
||
|
68350B
|
68350B
68350-58010 Roller Assy, Slide Door, Lower Rh[04.2005 -] MNH10 |
68350-58010 |
US $174.08 |
||
|
68360B
|
68360B
68360-58010 Roller Assy, Slide Door, Lower Lh[04.2005 -] MNH10 |
68360-58010 |
US $186.37 |
||
|
68367A
|
68367A
68367-58010 Pad, Slide Door Center Rail[04.2005 - 04.2008] MNH10 |
68367-58010 |
US $1.10 |
||
|
68380D
|
68380D
68380-58021 Hinge Assy, Slide Door, Center Rh[04.2005 -] MNH10 |
68380-58021 |
US $56.38 |
||
|
68390A
|
68390A
68390-58021 Hinge Assy, Slide Door, Center Lh[04.2005 -] MNH10 |
68390-58021 |
US $61.50 |
||
|
68394A
|
68394A
68394-28020 Plate, Slide Door Lower Rail, Rh[04.2005 -] MNH10 |
68394-28020 |
US $3.20 |
||
|
68399
|
68399
68399-28030 Plate, Slide Door Lower Rail, Lh[04.2005 -] MNH10 |
68399-28030 |
US $3.20 |
||
|
69415
|
69415
69415-26020 Stopper, Slide Door Down Female[04.2005 -] MNH10 LOWER |
69415-26020 |
from US $12.46 |
||
|
69415
|
69415
69415-58010
Stopper, Slide Door Down Female
[04.2005 - 04.2006] MNH10 UPPER |
69415-58010 |
— | ||
| replacement | |||||
|
69415
|
69415
69415-58011 Stopper, Slide Door Down Female[04.2005 - 04.2006] MNH10 UPPER |
69415-58011 |
US $10.88 |
||
|
69415
|
69415
69415-58011 Stopper, Slide Door Down Female[05.2006 -] MNH10 UPPER |
69415-58011 |
US $10.88 |
||
|
69416B
|
69416B
69046-58010
Stopper, Slide Door Down Male
[10.2005 -] MNH10 LOWER |
69046-58010 |
— | ||
| replacement | |||||
|
69416B
|
69416B
69046-28020 Stopper, Slide Door Down MaleSLIDE DOOR DOWN MALE [10.2005 -] MNH10 LOWER |
69046-28020 |
US $4.32 |
||
|
69416B
|
69416B
69416-26020 Stopper, Slide Door Down Male[04.2005 - 10.2005] MNH10 LOWER |
69416-26020 |
from US $10.76 |
||
|
69416B
|
69416B
69416-58010 Stopper, Slide Door Down Male[04.2005 -] MNH10 UPPER |
69416-58010 |
US $7.43 |
||
|
69418B
|
69418B
69418-28060 Shim, Slide Door Down Stop Male[04.2005 -] MNH10 |
69418-28060 |
US $5.76 |
||
|
69631A
|
69631A
69631-58010 Control, Slide Door Attachment, RhSLIDE DOOR ATTACHMENT, RH [04.2005 - 04.2008] MNH10 |
69631-58010 |
US $164.16 |
||
|
69641A
|
69641A
69641-58010 Control, Slide Door Attachment, LhSLIDE DOOR ATTACHMENT, LH [04.2005 - 04.2008] MNH10 |
69641-58010 |
from US $164.16 |
||
|
84250B
|
84250B
84250-58010 Sensor Assy, Power Slide Door, Rh[04.2005 -] MNH10 |
84250-58010 |
US $458.64 |
||
|
84260E
|
84260E
84260-58010 Sensor Assy, Power Slide Door[04.2005 -] MNH10 |
84260-58010 |
US $445.54 |
||
|
85610B
|
85610B
85610-58010
Motor Assy, Slide Door Lock Release, Rh
[04.2005 - 03.2007] MNH10 |
85610-58010 |
— | ||
| replacement | |||||
|
85610B
|
85610B
85610-58011 Motor Assy, Slide Door Lock Release, Rh[04.2005 - 03.2007] MNH10 |
85610-58011 |
US $366.80 |
||
|
85610B
|
85610B
85610-58011 Motor Assy, Slide Door Lock Release, Rh[04.2007 -] MNH10 |
85610-58011 |
US $366.80 |
||
|
85620A
|
85620A
85620-58020
Motor Assy, Slide Door Lock Release, Lh
[04.2005 - 03.2007] MNH10 |
85620-58020 |
— | ||
| replacement | |||||
|
85620A
|
85620A
85620-58021 Motor Assy, Slide Door Lock Release, Lh[04.2005 - 03.2007] MNH10 |
85620-58021 |
US $366.80 |
||
|
85620A
|
85620A
85620-58021 Motor Assy, Slide Door Lock Release, Lh[04.2007 -] MNH10 |
85620-58021 |
US $366.80 |
||
|
85630
|
85630
85005-58012
Motor Assy, Slide Door
[04.2005 - 06.2007] MNH10 RH |
85005-58012 |
— | ||
| replacement | |||||
|
85630
|
85630
85005-58013 Motor Assy, Slide Door (Rh)[04.2005 - 06.2007] MNH10 RH |
85005-58013 |
US $1,070.32 |
||
|
85630
|
85630
85005-58013 Motor Assy, Slide Door (Rh)[07.2007 - 04.2008] MNH10 RH |
85005-58013 |
US $1,070.32 |
||
|
85630
|
85630
85006-58012
Motor Assy, Slide Door
[04.2005 - 06.2007] MNH10 LH |
85006-58012 |
— | ||
| replacement | |||||
|
85630
|
85630
85006-58013 Motor Assy, Slide Door (Lh)[04.2005 - 06.2007] MNH10 LH |
85006-58013 |
US $1,070.32 |
||
|
85630
|
85630
85006-58013 Motor Assy, Slide Door (Lh)[07.2007 - 04.2008] MNH10 LH |
85006-58013 |
US $1,070.32 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.84 |
||
|
6855558010
|
6855558010
68555-58010 Bolt, Door Stay |
68555-58010 |
US $1.24 |
||
|
9010508187
|
9010508187
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.11 |
||
|
9010508400
|
9010508400
90105-08400 New Genuine Part |
90105-08400 |
US $1.76 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9014860063
|
9014860063
90148-60063 New Genuine Part |
90148-60063 |
US $0.96 |
||
|
9014880048
|
9014880048
90148-80048 New Genuine Part |
90148-80048 |
US $5.82 |
||
|
9014880049
|
9014880049
90148-80049 New Genuine Part |
90148-80049 |
US $0.96 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9016650004
|
9016650004
90166-50004 Screw Hex Lobular |
90166-50004 |
from US $0.66 |
||
|
9016840012
|
9016840012
90168-40012 SCREW |
90168-40012 |
US $1.92 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9018905074
|
9018905074
90189-05074 GROMMET SCREW |
90189-05074 |
US $1.44 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.80 |
||
|
9020104017
|
9020104017
90201-04017 New Genuine Part |
90201-04017 |
US $1.60 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
