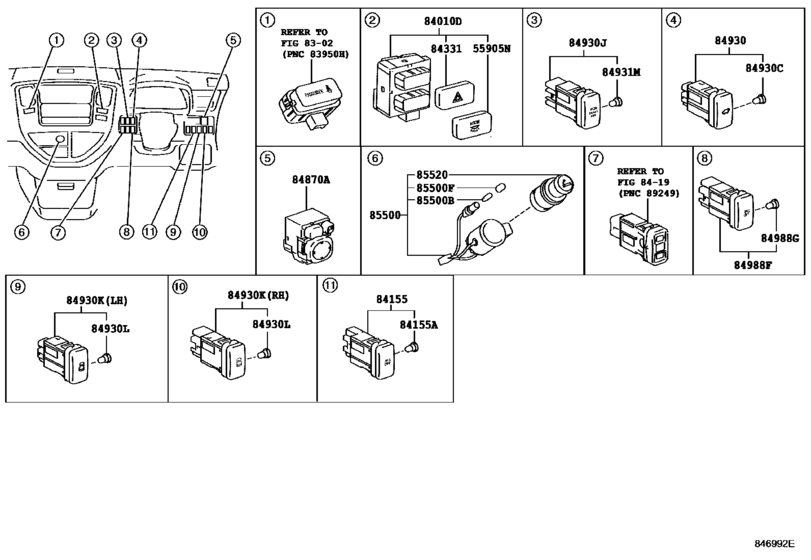

Switch & Relay & Computer ([04.2005 - ] INSTRUMENT PANEL (0504- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55905N
|
55905N
55937-58020 Knob Sub-Assy, Control, No.1[04.2005 -] MNH10 |
55937-58020 |
US $8.30 |
||
|
84010D
|
84010D
84010-58040 Control & Panel Assy, Integration[04.2005 - 04.2008] MNH10 |
84010-58040 |
US $77.17 |
||
|
84155
|
84155
84155-22010 Switch, Headlamp Swivel Main[04.2005 -] MNH10 |
84155-22010 |
US $47.76 |
||
|
84155A
|
84155A
90010-01062 Bulb, Hdeadlamp Swivel Main Switch[04.2005 - 04.2008] MNH10 |
90010-01062 |
from US $3.65 |
||
|
84331
|
84331
84331-58010 Knob, Hazard Warning Signal Switch[04.2005 -] MNH10 |
84331-58010 |
US $4.80 |
||
|
84870A
|
84870A
84872-52040 Switch Assy, Outer Mirror[04.2005 -] MNH10 |
84872-52040 |
US $113.16 |
||
|
84930J
|
84930J
84930-58030 Switch Assy, Door Control[04.2005 -] MNH10 |
84930-58030 |
from US $36.11 |
||
|
84930K
|
84930K
84930-28080 Switch Assy, Door Control[04.2005 -] MNH10 RH |
84930-28080 |
US $39.75 |
||
|
84930K
|
84930K
84930-58021 Switch Assy, Auto Slide Door Control[04.2005 -] MNH10 LH |
84930-58021 |
US $71.57 |
||
|
84930L
|
84930L
90010-01061 Bulb (For Headlamp Leveling Switch)[04.2005 - 04.2008] MNH10 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.65 |
||
|
84931M
|
84931M
90010-01061 Bulb (For Headlamp Leveling Switch)[04.2005 - 04.2008] MNH10 14V0.84W,W(GREEN CAP) |
90010-01061 |
from US $3.65 |
||
|
85500
|
85500
85500-24050 Lighter Assy, Cigarette[04.2005 - 04.2008] MNH10 |
85500-24050 |
US $64.28 |
||
|
85500B
|
85500B
90981-11018 Bulb, Position Indicator Lamp[04.2005 -] MNH10 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
85500F
|
85500F
84998-10510 Cap, Cigarette Lighter Bulb[04.2005 -] MNH10 |
84998-10510 |
US $4.12 |
||
|
85520
|
85520
85520-89101 Knob And Element Assy, Cigarette Lighter[04.2005 -] MNH10 |
85520-89101 |
from US $17.18 |
