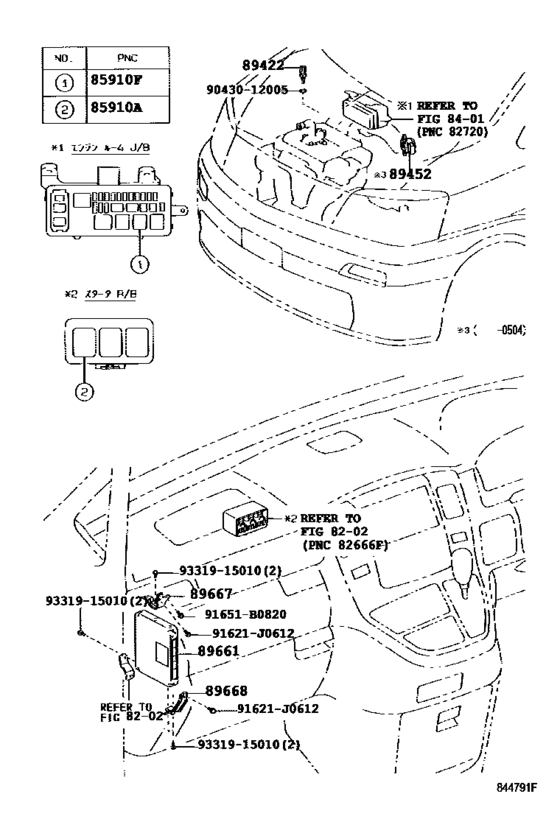

Electronic Fuel Injection System ([05.2002 - ] (0205- )MNH1#) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02024 Relay, Ignition, No.1[04.2005 - 04.2008] ANH1#,MNH1# |
90987-02024 |
US $38.75 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[04.2005 - 04.2008] ANH1#,MNH1# |
90987-02009 |
from US $26.15 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.2005 - 04.2008] MNH1# |
89422-35010 |
from US $44.67 |
||
|
89661
|
89661
89661-58080 Computer, Engine Control[04.2005 - 06.2007] MNH10 |
89661-58080 |
US $1,951.04 |
||
|
89661
|
89661
89661-58110 Computer, Engine Control[06.2007 -] MNH10 |
89661-58110 |
US $2,169.44 |
||
|
89667
|
89667
89667-58010 Bracket, Engine Control Computer[04.2005 -] ANH1#,MNH1# |
89667-58010 |
US $10.48 |
||
|
89668
|
89668
89668-58030 Bracket, Engine Control Computer, No.2[04.2005 -] ANH1#,MNH1# |
89668-58030 |
US $12.08 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
