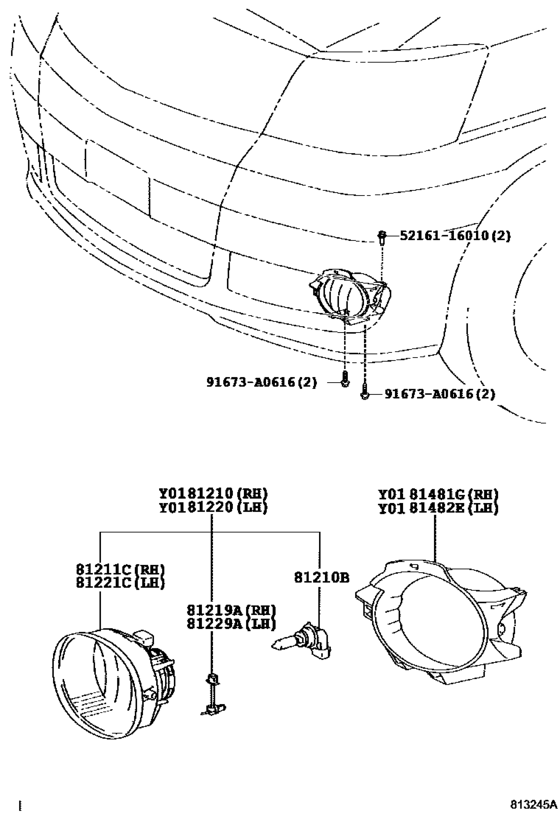

Fog Lamp ([04.2005 - ] (0504- )AS,MS) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210
|
81210
81210-42050 Lamp Assy, Fog, Rh[04.2005 -] ANH1#,MNH1#..AS,MS |
81210-42050 |
from US $143.29 |
||
|
81210B
|
81210B
90981-13047 Bulb (HB4)[04.2005 -] ANH1#,MNH1# １２Ｖ ５５Ｗ，ハロゲン |
90981-13047 |
from US $15.29 |
||
|
81211C
|
81211C
81211-42050 Lamp Unit, Fog Lamp, Rh[04.2005 -] ANH1#,MNH1#..AS,MS |
81211-42050 |
from US $104.85 |
||
|
81219A
|
81219A
81218-42050 Bracket, Fog Lamp, Rh[04.2005 -] ANH1#,MNH1#..AS,MS |
81218-42050 |
from US $9.73 |
||
|
81220
|
81220
81220-42050 Lamp Assy, Fog, Lh[04.2005 -] ANH1#,MNH1#..AS,MS |
81220-42050 |
from US $144.46 |
||
|
81221C
|
81221C
81221-42050 Lamp Unit, Fog Lamp, Lh[04.2005 -] ANH1#,MNH1#..AS,MS |
81221-42050 |
from US $105.36 |
||
|
81229A
|
81229A
81228-42050 Bracket, Fog Lamp, Lh[04.2005 -] ANH1#,MNH1#..AS,MS |
81228-42050 |
from US $13.90 |
||
|
81481G
|
81481G
81481-58020 Bracket, Fog Lamp, Rh[04.2005 -] ANH1#,MNH1#..AS,MS |
81481-58020 |
US $62.60 |
||
|
81482E
|
81482E
81482-58020 Bracket, Fog Lamp, Lh[04.2005 -] ANH1#,MNH1#..AS,MS |
81482-58020 |
US $62.60 |
||
|
91673A0616
|
91673A0616
91673-A0616 BOLT, FLANGE |
91673-A0616 |
from US $0.64 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
