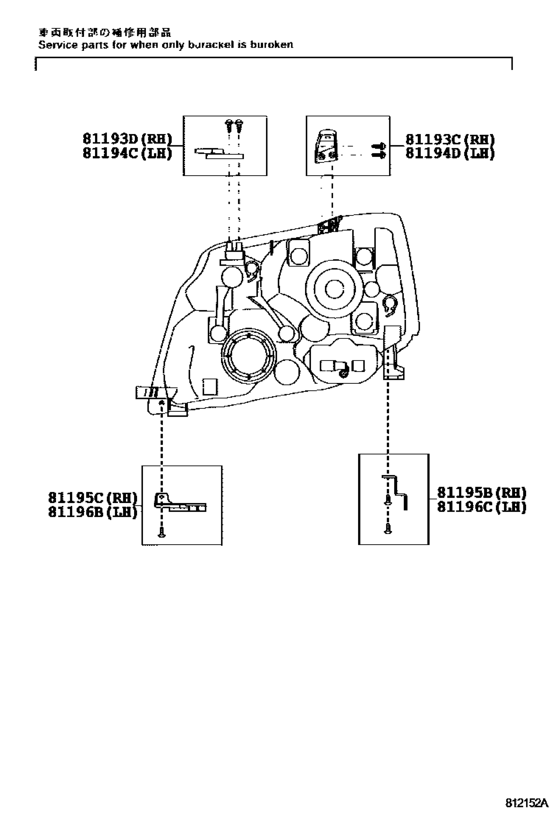

Headlamp ([05.2002 - ] (0205- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MZ
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81193C
|
81193C
81193-58010 Retainer, Rh Headlamp Protector, Upper Rh[04.2005 -] ANH1#,MNH1# |
81193-58010 |
US $9.32 |
||
|
81193D
|
81193D
81193-58020 Retainer, Rh Headlamp Protector, Upper Lh[04.2005 -] ANH1#,MNH1# |
81193-58020 |
US $8.74 |
||
|
81194C
|
81194C
81194-58020 Retainer, Lh Headlamp Protector, Upper Rh[04.2005 -] ANH1#,MNH1# |
81194-58020 |
US $8.74 |
||
|
81194D
|
81194D
81194-58010 Retainer, Lh Headlamp Protector, Upper Lh[04.2005 -] ANH1#,MNH1# |
81194-58010 |
US $9.32 |
||
|
81195B
|
81195B
81195-58010 Retainer, Rh Headlamp Protector, Lower Rh[04.2005 -] ANH1#,MNH1# |
81195-58010 |
US $9.32 |
||
|
81195C
|
81195C
81195-58020 Retainer, Rh Headlamp Protector, Lower Lh[04.2005 -] ANH1#,MNH1# |
81195-58020 |
US $7.86 |
||
|
81196B
|
81196B
81196-58020 Retainer, Lh Headlamp Protector, Lower Rh[04.2005 -] ANH1#,MNH1# |
81196-58020 |
US $7.86 |
||
|
81196C
|
81196C
81196-58010 Retainer, Lh Headlamp Protector, Lower Lh[04.2005 -] ANH1#,MNH1# |
81196-58010 |
US $9.32 |
