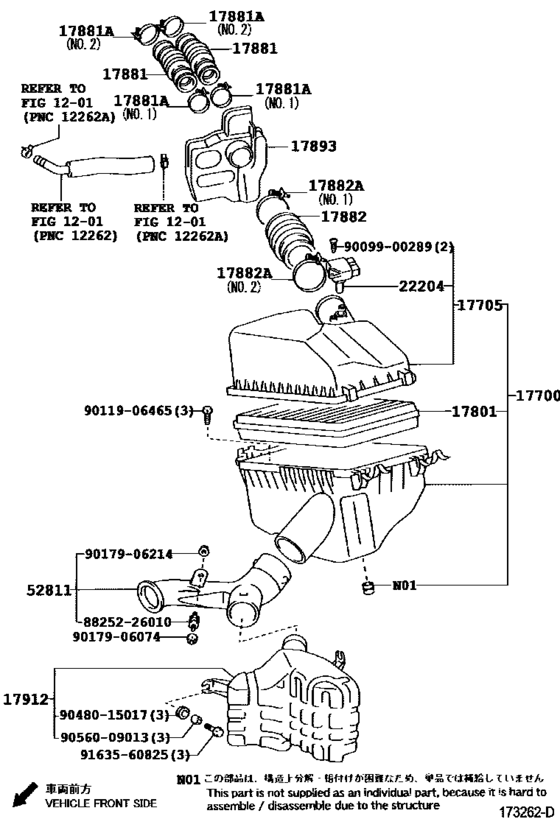

Air Cleaner ([05.2002 - 04.2005] (0205-0504)1MZFE) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- MNH15
- grade
- MX
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2005
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-20140 Cleaner Assy, Air[05.2002 - 04.2005] 1MZFE..MNH1# |
17700-20140 |
US $336.34 |
||
|
17705
|
17705
17705-20110
Cap Sub-Assy, Air Cleaner
[05.2002 - 04.2005] 1MZFE..MNH1# |
17705-20110 |
— | ||
|
17801
|
17801
17801-20040 Element Sub-Assy, Air Cleaner Filter[05.2002 - 04.2005] 1MZFE..MNH1# |
17801-20040 |
from US $32.90 |
||
|
17881
|
17881
17881-20110 Hose, Air Cleaner, No.1[05.2002 - 04.2005] 1MZFE..MNH1# |
17881-20110 |
from US $27.16 |
||
|
17881A
|
17881A
96111-10630 Clamp, Hose[05.2002 - 04.2005] 1MZFE..MNH1# ＮＯ．２ |
96111-10630 |
US $4.12 |
||
|
17881A
|
17881A
96111-10650 Clamp(For Air Cleaner Inlet, No.1)[05.2002 - 04.2005] 1MZFE..MNH1# ＮＯ．１ |
96111-10650 |
from US $2.73 |
||
|
17882
|
17882
17882-20130 Hose, Air Cleaner, No.2[05.2002 - 04.2005] 1MZFE..MNH1# |
17882-20130 |
from US $28.22 |
||
|
17882A
|
17882A
96111-10850 Clamp, Hose(For Air Connector)[05.2002 - 04.2005] 1MZFE..MNH1# ＮＯ．２ |
96111-10850 |
from US $4.10 |
||
|
17882A
|
17882A
96111-10930 Clamp, Hose(For Precleaner Hose)[05.2002 - 04.2005] 1MZFE..MNH1# ＮＯ．１ |
96111-10930 |
from US $2.15 |
||
|
17893
|
17893
17893-20060 Resonator, Intake Air[05.2002 - 04.2005] 1MZFE..MNH1# |
17893-20060 |
US $100.46 |
||
|
17912
|
17912
52820-58010 Duct, Cool Air Intake, No.2[05.2002 - 04.2005] 1MZFE..MNH1# |
52820-58010 |
US $113.52 |
||
|
22204
|
22204
22204-21010 Meter Sub-Assy, Intake Air Flow[05.2002 - 04.2005] 1MZFE..MNH1# |
22204-21010 |
from US $164.56 |
||
|
52811
|
52811
52810-58010 Duct, Cool Air Intake, No.1[05.2002 - 04.2005] MNH1# |
52810-58010 |
US $63.25 |
||
|
8825226010
|
8825226010
88252-26010 Cushion, Vacuum Pump |
88252-26010 |
US $3.06 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9011906465
|
9011906465
90119-06465 BOLT |
90119-06465 |
from US $0.92 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $0.92 |
||
|
9048015017
|
9048015017
90480-15017 New Genuine Part |
90480-15017 |
US $1.08 |
||
|
9056009013
|
9056009013
90560-09013 New Genuine Part |
90560-09013 |
US $3.20 |
||
|
9163560825
|
9163560825
91635-60825 New Genuine Part |
91635-60825 |
US $1.65 |
