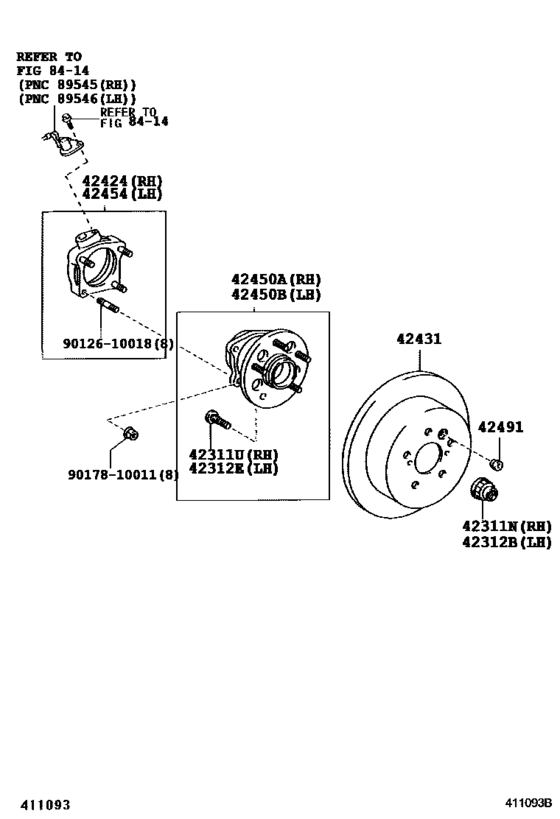

Rear Axle Shaft & Hub ([05.2002 - ] (0205- )ANH15,MNH15) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- MNH15
- grade
- MX
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2005
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311N
|
42311N
90177-22001 Nut (For Axle Shaft)[05.2002 - 04.2005] ANH15,MNH15 |
90177-22001 |
from US $2.36 |
||
|
42311U
|
42311U
90942-02049 Bolt, Hub[05.2002 - 04.2005] ANH1#,MNH1# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42311U
|
42311U
90942-02082 Bolt, Hub[05.2002 - 04.2005] ANH1#,MNH1# |
90942-02082 |
from US $2.32 |
||
|
42312B
|
42312B
90177-22001 Nut (For Axle Shaft)[05.2002 - 04.2005] ANH15,MNH15 |
90177-22001 |
from US $2.36 |
||
|
42312E
|
42312E
90942-02049 Bolt, Hub[05.2002 - 04.2005] ANH1#,MNH1# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
42312E
|
42312E
90942-02082 Bolt, Hub[05.2002 - 04.2005] ANH1#,MNH1# |
90942-02082 |
from US $2.32 |
||
|
42424
|
42424
42405-28010 Retainer, Rear Axle Bearing, Outer, Rh[05.2002 - 04.2005] ANH15,MNH15 |
42405-28010 |
US $65.18 |
||
|
42431
|
42431
42431-28090 Disc, Rear[05.2002 - 09.2004] ANH1#,MNH1#..4FC |
42431-28090 |
US $157.25 |
||
| replacement | |||||
|
42431
|
42431
42431-44030
Disc, Rear
[05.2002 - 09.2004] ANH1#,MNH1#..4FC |
42431-44030 |
— | ||
|
42431
|
42431
42431-28091
Disc, Rear
[09.2004 - 04.2005] ANH1#,MNH1# |
42431-28091 |
— | ||
| replacements | |||||
|
42431
|
42431
42431-44030
Disc, Rear
[09.2004 - 04.2005] ANH1#,MNH1# |
42431-44030 |
— | ||
|
42431
|
42431
42431-44031 Disc, Rear[09.2004 - 04.2005] ANH1#,MNH1# |
42431-44031 |
US $160.72 |
||
|
42450A
|
42450A
42410-28021 Hub & Bearing Assy, Rear Axle, Rh[05.2002 - 04.2005] ANH15,MNH15 |
42410-28021 |
US $400.92 |
||
|
42450B
|
42450B
42410-28021 Hub & Bearing Assy, Rear Axle, Rh[05.2002 - 04.2005] ANH15,MNH15 |
42410-28021 |
US $400.92 |
||
|
42454
|
42454
42406-28010 Retainer, Rear Axle Bearing, Outer, Lh[05.2002 - 04.2005] ANH15,MNH15 |
42406-28010 |
US $65.18 |
||
|
42491
|
42491
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[05.2002 - 04.2005] ANH1#,MNH1# |
47491-22020 |
from US $1.77 |
||
|
9012610018
|
9012610018
90126-10018 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10018 |
US $6.63 |
||
|
9017810011
|
9017810011
90178-10011 Nut(For Front Suspension Support) |
90178-10011 |
US $1.61 |
||
