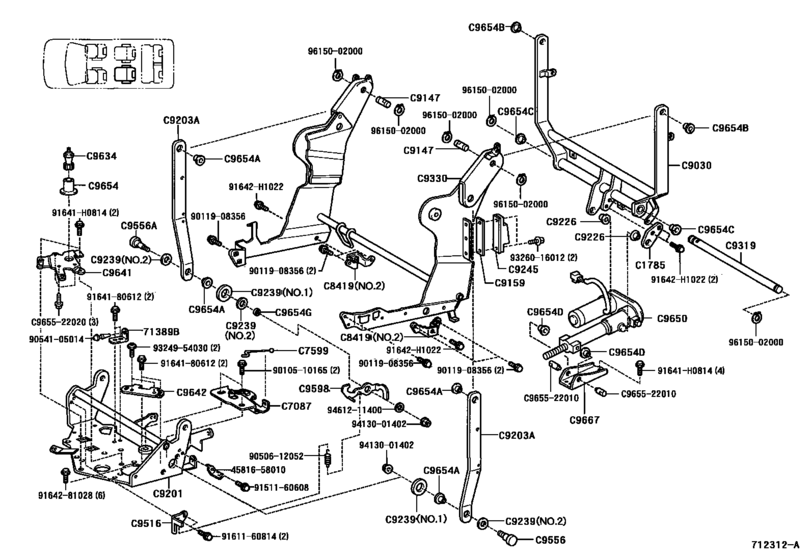

Seat & Seat Track ([05.2002 - 07.2003] ﾘﾔ NO.1 ｼ-ﾄ:ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ(3/5) (0205-0307)07S..AX,MX,MZ) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- MNH15
- grade
- MX
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 05.2002
- To
- 04.2005
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71389B
|
71389B
71389-58010 Plate, Rear Seat Cushion Bracket[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
71389-58010 |
US $4.95 |
||
|
91641H0814
|
91641H0814
91641-H0814 New Genuine Part |
91641-H0814 |
US $1.16 |
||
|
91642H1022
|
91642H1022
91642-H1022 BOLT WWASHER |
91642-H1022 |
US $2.51 |
||
|
4581658010
|
4581658010
45816-58010 Bracket, Wire Harness |
45816-58010 |
US $3.35 |
||
|
9010510165
|
9010510165
90105-10165 New Genuine Part |
90105-10165 |
US $1.60 |
||
|
9011908356
|
9011908356
90119-08356 New Genuine Part |
90119-08356 |
US $2.15 |
||
|
9050612052
|
9050612052
90506-12052 New Genuine Part |
90506-12052 |
US $0.61 |
||
|
9054105014
|
9054105014
90541-05014
New Genuine Part
|
90541-05014 |
— | ||
|
9151160608
|
9151160608
91511-60608 New Genuine Part |
91511-60608 |
US $1.97 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9164180612
|
9164180612
91641-80612 New Genuine Part |
91641-80612 |
US $1.97 |
||
|
9164281028
|
9164281028
91642-81028 New Genuine Part |
91642-81028 |
US $2.51 |
||
|
9324954030
|
9324954030
93249-54030 New Genuine Part |
93249-54030 |
US $1.16 |
||
|
9326016012
|
9326016012
93260-16012
New Genuine Part
|
93260-16012 |
— | ||
| replacement | |||||
|
9326016012
|
9326016012
93260-56012 SCREW |
93260-56012 |
US $0.52 |
||
|
9413001402
|
9413001402
94130-01402 Nut, Timer Round |
94130-01402 |
US $2.51 |
||
|
9461211400
|
9461211400
94612-11400 WASHERPLATE |
94612-11400 |
US $2.87 |
||
|
9615002000
|
9615002000
96150-02000 Ring, Shaft Snap(For Tension Gear) |
96150-02000 |
US $3.05 |
||
|
C965522010
|
C965522010
C9655-22010 New Genuine Part |
C9655-22010 |
US $60.28 |
||
|
C965522020
|
C965522020
C9655-22020
New Genuine Part
|
C9655-22020 |
— | ||
|
C1785
|
C1785
C1785-58010 Bracket, Control Stay, No.2 Rh[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C1785-58010 |
US $12.38 |
||
|
C7087
|
C7087
C7087-22040 Lock Sub-Assy, Rear Seat Turn, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C7087-22040 |
US $87.36 |
||
|
C7599
|
C7599
C7599-58010 Cable, Rear Seat Lock Control[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C7599-58010 |
US $16.45 |
||
|
C8419
|
C8419
C8419-58010 Bracket, Power Lift Seat Junction[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,ＮＯ．１ |
C8419-58010 |
US $4.95 |
||
|
C8419
|
C8419
C8419-58030 Bracket, Power Lift Seat Junction[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,ＮＯ．２ |
C8419-58030 |
US $8.15 |
||
|
C9030
|
C9030
C9030-58020 Link Assy, Power Lift Arm, No.2[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9030-58020 |
US $1,102.19 |
||
|
C9147
|
C9147
C9147-58010 Shaft, Power Lift Beam[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9147-58010 |
US $7.72 |
||
|
C9159
|
C9159
C9159-58010 Spacer, Lift Arm Guide Stopper[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9159-58010 |
US $3.35 |
||
|
C9201
|
C9201
C9201-58020 Guide Sub-Assy, Power Lift[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9201-58020 |
US $990.08 |
||
|
C9203A
|
C9203A
C9203-58010 Link Sub-Assy, Power Lift Arm, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,左側 |
C9203-58010 |
US $301.39 |
||
|
C9203A
|
C9203A
C9203-58020 Link Sub-Assy, Power Lift Arm, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,右側 |
C9203-58020 |
US $301.39 |
||
| replacement | |||||
|
C9203A
|
C9203A
C9203-58010 Link Sub-Assy, Power Lift Arm, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,右側 |
C9203-58010 |
US $301.39 |
||
|
C9226
|
C9226
C9226-22070 Collar, Platform Support Shaft[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9226-22070 |
US $11.21 |
||
|
C9239
|
C9239
C9239-58020 Spacer, Lift Arm Link[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,ＮＯ．１ |
C9239-58020 |
US $3.93 |
||
|
C9239
|
C9239
C9239-58050 Spacer, Lift Arm Link[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車,ＮＯ．２ |
C9239-58050 |
US $3.93 |
||
|
C9245
|
C9245
C9245-22080 Cushion, Power Lift Platform[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9245-22080 |
US $16.45 |
||
|
C9319
|
C9319
C9319-58010 Pin, Platform Hinge[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9319-58010 |
US $56.35 |
||
|
C9330
|
C9330
C9330-58030 Holder Assy, Power Lift Platform[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9330-58030 |
US $1,320.59 |
||
|
C9516
|
C9516
C9516-58010 Support, Return Spring Pipe[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9516-58010 |
US $6.12 |
||
|
C9556
|
C9556
C9556-58010 Shaft, Platform Guide Roller[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9556-58010 |
US $12.67 |
||
|
C9556A
|
C9556A
C9556-58030 Shaft, Platform Guide Roller[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9556-58030 |
US $12.67 |
||
|
C9598
|
C9598
C9598-58030 Catch, Platform Safety Hook[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9598-58030 |
US $25.63 |
||
|
C9634
|
C9634
C9634-22020 Gear, Power Lift, No.4[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9634-22020 |
US $12.67 |
||
|
C9641
|
C9641
C9641-58010 Bracket, Power Lift Motor, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9641-58010 |
US $19.36 |
||
|
C9642
|
C9642
C9642-58010 Bracket, Power Lift Motor, No.2[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9642-58010 |
US $12.38 |
||
|
C9650
|
C9650
C9650-58020
Cylinder Assy, Power Lift
[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9650-58020 |
— | ||
|
C9654
|
C9654
C9654-58010 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58010 |
US $16.89 |
||
|
C9654A
|
C9654A
C9654-58010 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58010 |
US $16.89 |
||
|
C9654B
|
C9654B
C9654-58010 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58010 |
US $16.89 |
||
|
C9654C
|
C9654C
C9654-58020 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58020 |
US $16.89 |
||
|
C9654D
|
C9654D
C9654-58030 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58030 |
US $16.31 |
||
|
C9654G
|
C9654G
C9654-58050 Collar, Power Lift Cylinder[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9654-58050 |
US $3.20 |
||
|
C9667
|
C9667
C9667-58010 Support, Power Lift Cylinder, No.1[05.2002 - 07.2003] ANH1#,MNH1#..07S..(AX,MX,MZ) サイドリフトアップシート車 |
C9667-58010 |
US $59.40 |
||
