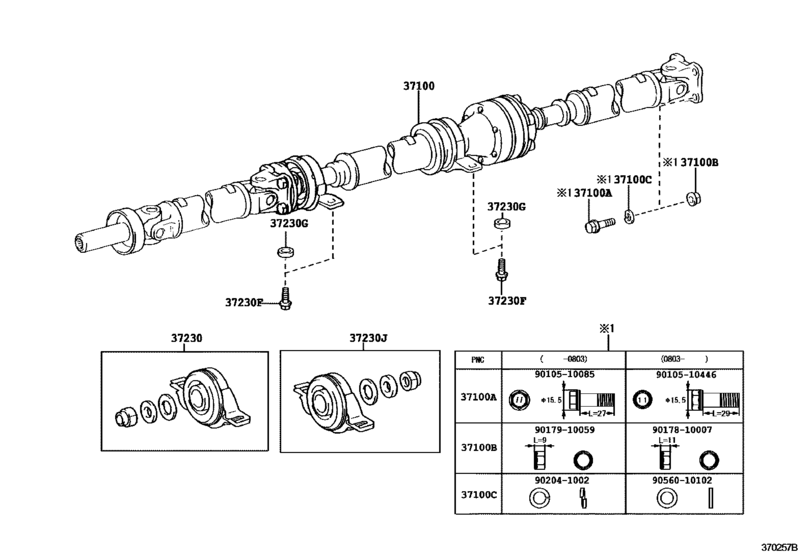

Propeller Shaft & Universal Joint ([05.2002 - ] (0205- )ANH15,MNH15) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- Japan
- Frame
- MNH15
- grade
- MX
- ENGINE
- 1MZFE
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 08S
- Vehicle Model
- Alphard G/V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-58010 Shaft Assy, Propeller W/center Bearing[04.2005 -] ANH15,MNH15 |
37100-58010 |
US $1,680.52 |
||
|
37100A
|
37100A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.2005 - 03.2008] ANH15,MNH15 |
90105-10085 |
from US $1.08 |
||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[03.2008 -] ANH15,MNH15 |
90105-10466 |
from US $1.12 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[03.2008 -] ANH15,MNH15 |
90178-10007 |
from US $0.72 |
||
|
37100B
|
37100B
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[04.2005 - 03.2008] ANH15,MNH15 |
90179-10059 |
from US $2.34 |
||
|
37100C
|
37100C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[04.2005 - 03.2008] ANH15,MNH15 |
90204-10002 |
— | ||
| replacement | |||||
|
37100C
|
37100C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.2005 - 03.2008] ANH15,MNH15 |
90560-10H00 |
from US $1.54 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[03.2008 -] ANH15,MNH15 |
90560-10102 |
from US $0.83 |
||
|
37230
|
37230
37230-29015 Bearing Assy, Center Support, No.1[04.2005 -] ANH15,MNH15 |
37230-29015 |
from US $97.68 |
||
|
37230F
|
37230F
90119-10444 Bolt, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 |
90119-10444 |
US $1.93 |
||
|
37230G
|
37230G
90201-10081 Washer, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 厚さ＝４．５ |
90201-10081 |
US $2.34 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 厚さ＝６．５ |
90201-10083 |
US $3.03 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10085 Washer, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 厚さ＝１１．０ |
90201-10085 |
US $4.86 |
||
|
37230G
|
37230G
90201-10095 Washer, No.1 (For Center Support Bearing)[04.2005 -] ANH15,MNH15 厚さ＝３．２ |
90201-10095 |
US $2.20 |
||
|
37230J
|
37230J
37230-29015 Bearing Assy, Center Support, No.1[04.2005 -] ANH15,MNH15 |
37230-29015 |
from US $97.68 |
||
