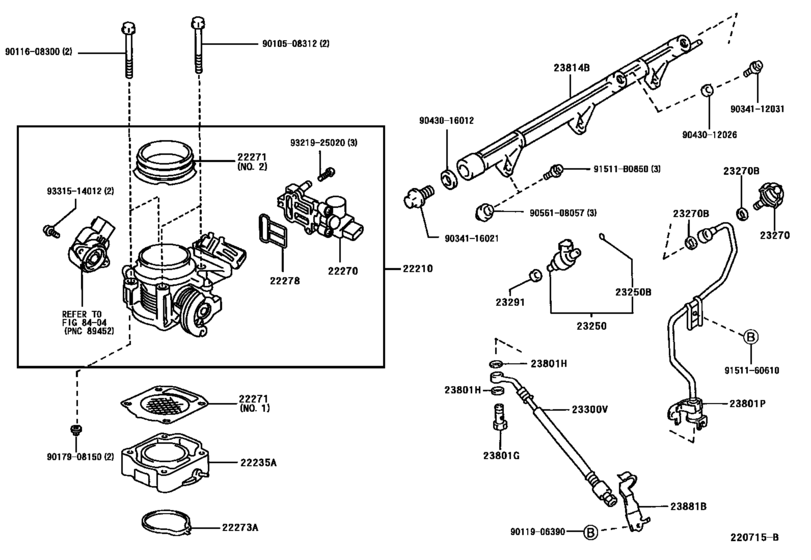

Fuel Injection System ([10.1998 - ] (9810- )1GFE..GXE10..ATM) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- GXE10
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-70420 Body Assy, Throttle[10.1998 - 05.2001] 1GFE..GXE10..ATM |
22210-70420 |
US $1,200.33 |
||
|
22235A
|
22235A
22235-70010 Inlet, Auxiliary Air[10.1998 - 05.2001] 1GFE..GXE10 |
22235-70010 |
US $56.35 |
||
|
22270
|
22270
22270-70130 Valve Assy, Idle Speed Control(For Thlottle Body)[10.1998 - 05.2001] 1GFE..GXE10..ATM |
22270-70130 |
US $695.76 |
||
|
22271
|
22271
22271-70030 Gasket, Throttle Body[10.1998 - 05.2001] 1GFE..GXE10 ＮＯ．１ |
22271-70030 |
from US $8.33 |
||
|
22271
|
22271
22271-70040 Gasket, Throttle Body[10.1998 - 05.2001] 1GFE..GXE10 ＮＯ．２ |
22271-70040 |
from US $8.40 |
||
|
22273A
|
22273A
22273-70020 Gasket, Throttle Body, No.2[10.1998 - 05.2001] 1GFE..GXE10 |
22273-70020 |
from US $4.45 |
||
|
22278
|
22278
22278-46020 Gasket, Idle Speed Control Valve[10.1998 - 05.2001] 1GFE..GXE10..ATM |
22278-46020 |
US $2.94 |
||
|
23250
|
23250
23209-70120 Injector Assy, Fuel[10.1998 - 05.2001] 1GFE..GXE10 |
23209-70120 |
US $313.56 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[10.1998 - 05.2001] 1GFE..GXE10 |
90301-07024 |
from US $2.55 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[10.1998 - 05.2001] 3SGE..SXE10; 1GFE..GXE10 |
23207-46010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[10.1998 - 05.2001] 3SGE..SXE10; 1GFE..GXE10 |
23207-20011 |
from US $59.75 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[10.1998 - 05.2001] 1GFE..GXE10 |
23232-41081 |
from US $1.40 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[10.1998 - 05.2001] 1GFE..GXE10 |
23291-41010 |
from US $2.61 |
||
|
23300V
|
23300V
90923-01410 Hose, Fuel(For Fuel Inlet)[10.1998 - 05.2001] 1GFE..GXE10 |
90923-01410 |
US $174.72 |
||
|
23801G
|
23801G
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[10.1998 - 05.2001] 1GFE..GXE10 |
90401-12029 |
US $6.60 |
||
|
23801H
|
23801H
90430-12026 Gasket[10.1998 - 05.2001] 1GFE..GXE10 |
90430-12026 |
from US $0.82 |
||
|
23801P
|
23801P
23801-70120
Pipe Sub-Assy, Fuel, No.1
[10.1998 - 05.2001] 1GFE..GXE10 |
23801-70120 |
— | ||
|
23814B
|
23814B
23814-70050
Pipe, Fuel Delivery
[10.1998 - 05.2001] 1GFE..GXE10 |
23814-70050 |
— | ||
| replacement | |||||
|
23814B
|
23814B
23814-70061 Pipe, Fuel Delivery[10.1998 - 05.2001] 1GFE..GXE10 |
23814-70061 |
US $144.14 |
||
|
23814B
|
23814B
23814-70061 Pipe, Fuel Delivery[11.2003 -] 1GFE..GXE1# |
23814-70061 |
US $144.14 |
||
|
23881B
|
23881B
23881-46030 Bracket, Fuel Hose[10.1998 - 05.2001] 1GFE..GXE10 |
23881-46030 |
US $9.32 |
||
|
91511B0850
|
91511B0850
91511-B0850 Bolt |
91511-B0850 |
from US $1.44 |
||
|
9010508312
|
9010508312
90105-08312 BOLT WASHER BASED |
90105-08312 |
US $1.40 |
||
|
9011608300
|
9011608300
90116-08300 New Genuine Part |
90116-08300 |
US $4.08 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $0.99 |
||
|
9034112031
|
9034112031
90341-12031 New Genuine Part |
90341-12031 |
US $2.77 |
||
|
9034116021
|
9034116021
90341-16021 New Genuine Part |
90341-16021 |
US $3.20 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.82 |
||
|
9043016012
|
9043016012
90430-16012 Gasket, W/head Taper Screw Plug |
90430-16012 |
from US $0.80 |
||
|
9056108057
|
9056108057
90561-08057 New Genuine Part |
90561-08057 |
US $2.91 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
9321925020
|
9321925020
93219-25020 New Genuine Part |
93219-25020 |
US $2.87 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
