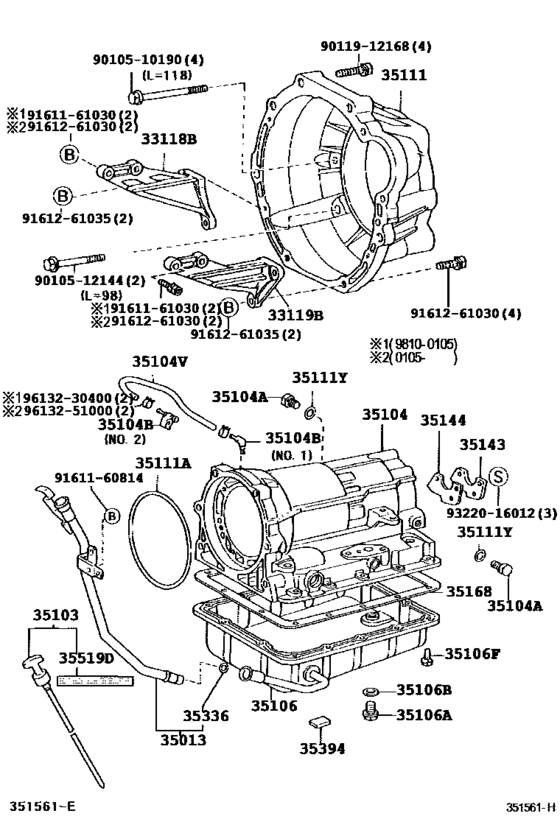

Transmission Case & Oil Pan (Atm) ([10.1998 - ] A47DE (9810- )GXE10..ATM) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- GXE10
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33118B
|
33118B
33118-22051 Plate, Stiffener, Rh(Mtm)[10.1998 - 05.2001] GXE10..ATM |
33118-22051 |
US $31.89 |
||
|
33119B
|
33119B
33119-22042 Plate, Stiffener, Lh(Mtm)[10.1998 - 05.2001] GXE10..ATM |
33119-22042 |
US $29.99 |
||
|
35013
|
35013
35013-53020 Tube Sub-Assy, Transmission Oil Filler[10.1998 - 04.1999] GXE10 |
35013-53020 |
US $44.41 |
||
| replacement | |||||
|
35013
|
35013
35013-53041 Tube Sub-Assy, Transmission Oil FillerTRANSMISSION OIL FILLER [10.1998 - 04.1999] GXE10 |
35013-53041 |
US $44.12 |
||
|
35013
|
35013
35013-53021 Tube Sub-Assy, Transmission Oil Filler[04.1999 - 05.2001] GXE10..ATM |
35013-53021 |
US $44.12 |
||
| replacement | |||||
|
35013
|
35013
35013-53041 Tube Sub-Assy, Transmission Oil FillerTRANSMISSION OIL FILLER [04.1999 - 05.2001] GXE10..ATM |
35013-53041 |
US $44.12 |
||
|
35103
|
35103
35103-53020 Gage Sub-Assy, Transmission Oil Level[10.1998 - 05.2001] GXE10..ATM |
35103-53020 |
US $15.58 |
||
|
35104
|
35104
35104-22060 Case Sub-Assy, Automatic Transmission[10.1998 - 05.2001] GXE10..ATM |
35104-22060 |
US $374.19 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[10.1998 - 05.2001] GXE10..ATM |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[10.1998 - 05.2001] GXE10,SXE10..ATM ＮＯ．１ |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[10.1998 - 12.2000] GXE10,SXE10..ATM ＮＯ．２ |
90930-03149 |
from US $3.94 |
||
|
35104B
|
35104B
90930-03168 Plug, Breather, No.1 (Atm)[12.2000 - 05.2001] GXE10,SXE10..ATM ＮＯ．２ |
90930-03168 |
US $6.45 |
||
|
35104V
|
35104V
90445-11145 Hose (For Breather Plug)[10.1998 - 05.2001] GXE10..ATM |
90445-11145 |
US $4.66 |
||
|
35106
|
35106
35106-22100
Pan Sub-Assy, Automatic Transmission Oil
[10.1998 - 12.1998] GXE10 |
35106-22100 |
— | ||
| replacement | |||||
|
35106
|
35106
35106-53010 Pan Sub-Assy, Automatic Transmission Oil[10.1998 - 12.1998] GXE10 |
35106-53010 |
US $84.45 |
||
|
35106
|
35106
35106-22101 Pan Sub-Assy, Automatic Transmission Oil[12.1998 - 06.1999] GXE10 |
35106-22101 |
US $93.18 |
||
|
35106
|
35106
35106-53030 Pan Sub-Assy, Automatic Transmission Oil[05.2001 - 07.2005] GXE10..ATM |
35106-53030 |
US $81.54 |
||
|
35106
|
35106
35106-53040 Pan Sub-Assy, Automatic Transmission Oil[06.1999 - 05.2001] GXE10..ATM |
35106-53040 |
US $81.54 |
||
| replacement | |||||
|
35106
|
35106
35106-53030 Pan Sub-Assy, Automatic Transmission Oil[06.1999 - 05.2001] GXE10..ATM |
35106-53030 |
US $81.54 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[04.2003 -] GXE1#,JCE1#,SXE10..ATM |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10018
Plug Sub-Assy, Drain (Atm)
[10.1998 - 05.2001] GXE10,SXE10..ATM |
90341-10018 |
— | ||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[04.2003 -] GXE1#,JCE1#,SXE10..ATM |
35178-30010 |
US $3.40 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[10.1998 - 05.2001] GXE10,SXE10..ATM |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[10.1998 - 05.2001] GXE10,SXE10..ATM |
35178-30010 |
US $3.40 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[10.1998 - 05.2001] GXE10..ATM |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.1998 - 05.2001] GXE10..ATM |
90119-06173 |
from US $0.76 |
||
|
35111
|
35111
35111-53010 Housing, Automatic Transmission[10.1998 - 05.2001] GXE10..ATM |
35111-53010 |
US $608.61 |
||
|
35111A
|
35111A
90301-99054 Ring, O (For Automatic Transmission Housing)[10.1998 - 05.2001] GXE10..ATM |
90301-99054 |
US $13.63 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[10.1998 - 05.2001] GXE10..ATM |
90301-06196 |
from US $2.24 |
||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[10.1998 - 05.2001] GXE10..ATM |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[10.1998 - 05.2001] GXE10..ATM |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[10.1998 - 05.2001] GXE10..ATM |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90301-09173 |
from US $2.03 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[10.1998 - 05.2001] GXE10..ATM |
35394-30011 |
from US $5.62 |
||
|
35519D
|
35519D
35519-30010 Label, Automatic Transmission Information[10.1998 - 05.2001] GXE10,SXE10..ATM |
35519-30010 |
US $5.42 |
||
|
9010510190
|
9010510190
90105-10190 New Genuine Part |
90105-10190 |
US $3.20 |
||
|
9010512144
|
9010512144
90105-12144 New Genuine Part |
90105-12144 |
US $3.20 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
