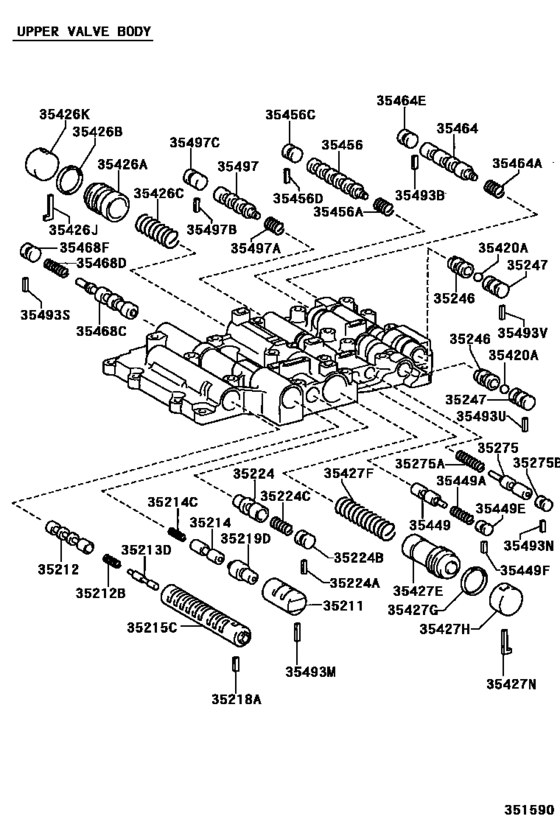

Valve Body & Oil Strainer (Atm) ([10.1998 - 05.2001] A47DE (9810-0105)GXE10..ATM) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- GXE10
- body
- SED
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211
|
35211
35211-22010 Valve, Lock Up Signal[10.1998 - 05.2001] GXE10..ATM |
35211-22010 |
US $12.67 |
||
|
35212
|
35212
35212-30050 Valve, Lock Up Relay[10.1998 - 05.2001] GXE10..ATM |
35212-30050 |
US $5.42 |
||
|
35212B
|
35212B
90501-06057 Spring, Compression (For Lock Up Relay Valve)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90501-06057 |
US $0.96 |
||
|
35213D
|
35213D
35213-50010 Plunger, Lock Up Relay Valve[10.1998 - 05.2001] GXE10..ATM |
35213-50010 |
US $7.13 |
||
|
35214
|
35214
35214-50010 Valve, Lock Up Control[10.1998 - 05.2001] GXE10,SXE10..ATM |
35214-50010 |
US $11.88 |
||
|
35214C
|
35214C
90501-07111 Spring, Compression (For Lock Up Control Valve)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90501-07111 |
US $0.61 |
||
|
35215C
|
35215C
35215-22020 Sleeve, Lock Up Relay Valve, No.1[10.1998 - 05.2001] GXE10..ATM |
35215-22020 |
US $24.90 |
||
|
35218A
|
35218A
90282-03016 Key, Straight (For Lock Up Relay Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
90282-03016 |
US $2.62 |
||
|
35219D
|
35219D
35219-50010 Plunger, Lock Up Control Valve[10.1998 - 05.2001] GXE10,SXE10..ATM |
35219-50010 |
US $9.17 |
||
|
35224
|
35224
35224-30010
Valve, Reverse Control
[10.1998 - 05.2001] GXE10,SXE10..ATM |
35224-30010 |
— | ||
|
35224A
|
35224A
35493-22020 Seat, Plug (For Lock Up Relay Valve)[10.1998 - 05.2001] GXE10..ATM |
35493-22020 |
US $2.48 |
||
|
35224B
|
35224B
90339-05020 Plug (For Reverse Control Valve)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90339-05020 |
US $1.46 |
||
|
35224C
|
35224C
90501-06056 Spring, Compression (For Reverse Control Valve)[10.1998 - 05.2001] GXE10..ATM |
90501-06056 |
US $0.96 |
||
|
35246
|
35246
35246-30010 Valve, Check, No.1[10.1998 - 05.2001] GXE10..ATM |
35246-30010 |
US $12.52 |
||
|
35247
|
35247
35247-30010 Valve, Check, No.2[10.1998 - 05.2001] GXE10..ATM |
35247-30010 |
US $13.98 |
||
|
35275
|
35275
35275-30010 Valve, Solenoid Modulator[10.1998 - 05.2001] GXE10..ATM |
35275-30010 |
US $6.99 |
||
|
35275A
|
35275A
90501-12143 Spring, Compression(For Low-High Shift Valve)[10.1998 - 05.2001] GXE10..ATM |
90501-12143 |
US $0.70 |
||
|
35275B
|
35275B
90339-04030 Plug (For Solenoid Modulator Valve)[10.1998 - 05.2001] GXE10..ATM |
90339-04030 |
US $1.46 |
||
|
35420A
|
35420A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[10.1998 - 05.2001] GXE10..ATM |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
35420A
|
35420A
90080-36191
Ball, Check Valve
[10.1998 - 05.2001] GXE10..ATM |
90080-36191 |
— | ||
|
35426A
|
35426A
35426-22010 Piston, C-0 Accumulator[10.1998 - 05.2001] GXE10..ATM |
35426-22010 |
US $21.11 |
||
|
35426B
|
35426B
35232-50010
Ring, C-1 Accumulator Seal
[10.1998 - 05.2001] GXE10..ATM |
35232-50010 |
— | ||
|
35426C
|
35426C
90905-01045 Spring, Compression (For C-0 Accumulator Piston)[10.1998 - 05.2001] GXE10..ATM |
90905-01045 |
US $1.60 |
||
|
35426J
|
35426J
35493-22040 Seat, C-0 Accumulator Piston Plug[10.1998 - 05.2001] GXE10..ATM |
35493-22040 |
US $5.24 |
||
|
35426K
|
35426K
90339-24002 Plug, C-0 Accumulator Piston[10.1998 - 05.2001] GXE10..ATM |
90339-24002 |
US $1.60 |
||
|
35427E
|
35427E
35427-22020 Piston, B-0 Accumulator[10.1998 - 05.2001] GXE10..ATM |
35427-22020 |
US $22.86 |
||
|
35427F
|
35427F
90501-20156 Spring, Compression (For B-0 Accumulator Piston)[10.1998 - 05.2001] GXE10..ATM |
90501-20156 |
US $3.49 |
||
|
35427G
|
35427G
35232-50010
Ring, C-1 Accumulator Seal
[10.1998 - 05.2001] GXE10..ATM |
35232-50010 |
— | ||
|
35427H
|
35427H
90339-24002 Plug, C-0 Accumulator Piston[10.1998 - 05.2001] GXE10..ATM |
90339-24002 |
US $1.60 |
||
|
35427N
|
35427N
35493-22040 Seat, C-0 Accumulator Piston Plug[10.1998 - 05.2001] GXE10..ATM |
35493-22040 |
US $5.24 |
||
|
35449
|
35449
35447-22020 Valve, Sequence[10.1998 - 05.2001] GXE10..ATM |
35447-22020 |
US $6.26 |
||
|
35449A
|
35449A
90501-10219 Spring, Compression (For Sequence Valve)[10.1998 - 05.2001] GXE10..ATM |
90501-10219 |
US $1.02 |
||
|
35449E
|
35449E
90339-04030 Plug (For Solenoid Modulator Valve)[10.1998 - 05.2001] GXE10..ATM |
90339-04030 |
US $1.46 |
||
|
35449F
|
35449F
35493-30030 Seat(For Center Differential Clutch Control Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35493-30030 |
US $1.60 |
||
|
35456
|
35456
35456-12020 Valve, 2-3 Shift[10.1998 - 05.2001] GXE10..ATM |
35456-12020 |
US $6.41 |
||
|
35456A
|
35456A
90501-08135 Spring, Compression (For Shift Valve Plug Seat)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90501-08135 |
US $2.04 |
||
|
35456C
|
35456C
90339-05019 Plug[10.1998 - 05.2001] GXE10..ATM |
90339-05019 |
US $2.18 |
||
|
35456D
|
35456D
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35438-22020 |
US $2.48 |
||
|
35464
|
35464
35464-12040 Valve, 1-2 Shift[10.1998 - 05.2001] GXE10..ATM |
35464-12040 |
US $11.79 |
||
|
35464A
|
35464A
90501-08135 Spring, Compression (For Shift Valve Plug Seat)[10.1998 - 05.2001] GXE10..ATM |
90501-08135 |
US $2.04 |
||
|
35464E
|
35464E
90339-05019 Plug[10.1998 - 05.2001] GXE10,SXE10..ATM |
90339-05019 |
US $2.18 |
||
|
35468C
|
35468C
35468-24010 Valve, Secondary Regulator[10.1998 - 05.2001] GXE10..ATM |
35468-24010 |
US $17.82 |
||
|
35468D
|
35468D
90501-12170 Spring, Compression (For Secondary Regulator Valve)[10.1998 - 05.2001] GXE10..ATM |
90501-12170 |
US $1.05 |
||
|
35468F
|
35468F
90339-05020 Plug (For Reverse Control Valve)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90339-05020 |
US $1.46 |
||
|
35493B
|
35493B
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35438-22020 |
US $2.48 |
||
|
35493M
|
35493M
35493-50050 Seat, Throttle Valve Spring[10.1998 - 05.2001] GXE10,SXE10..ATM |
35493-50050 |
US $1.60 |
||
|
35493N
|
35493N
35493-30030 Seat(For Center Differential Clutch Control Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35493-30030 |
US $1.60 |
||
|
35493S
|
35493S
35493-50050 Seat, Throttle Valve Spring[10.1998 - 05.2001] GXE10..ATM |
35493-50050 |
US $1.60 |
||
|
35493U
|
35493U
35493-30030 Seat(For Center Differential Clutch Control Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35493-30030 |
US $1.60 |
||
|
35493V
|
35493V
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35438-22020 |
US $2.48 |
||
|
35497
|
35497
35497-12020 Valve, 3-4 Shift[10.1998 - 05.2001] GXE10..ATM |
35497-12020 |
US $24.75 |
||
|
35497A
|
35497A
90501-08135 Spring, Compression (For Shift Valve Plug Seat)[10.1998 - 05.2001] GXE10,SXE10..ATM |
90501-08135 |
US $2.04 |
||
|
35497B
|
35497B
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[10.1998 - 05.2001] GXE10..ATM |
35438-22020 |
US $2.48 |
||
|
35497C
|
35497C
90339-05033 Plug (For 3-4 Shift Valve)[10.1998 - 05.2001] GXE10..ATM |
90339-05033 |
US $1.16 |
||
