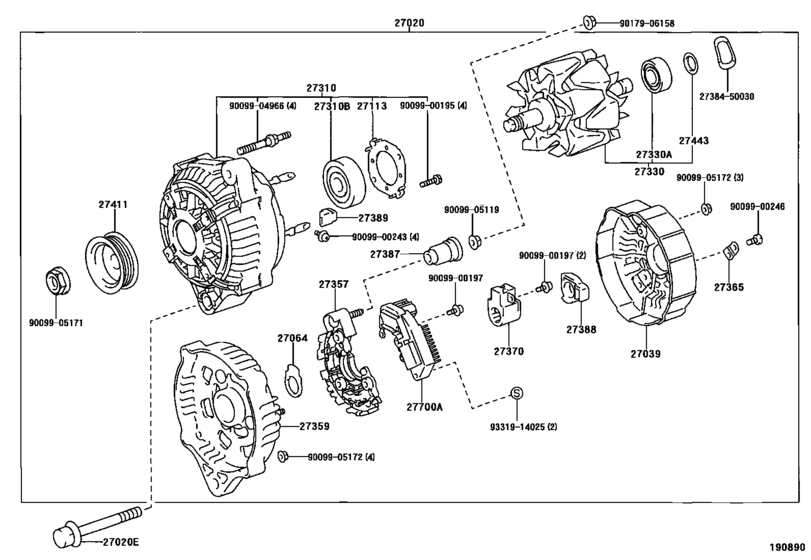

Alternator ([10.1998 - 05.2001] 12V 90A (9810-0105)3SGE) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-74880 Alternator Assy[10.1998 - 05.2001] 3SGE..SXE10 １２Ｖ ９０Ａ |
27060-74880 |
US $1,732.64 |
||
|
27020E
|
27020E
90105-10249 Bolt(For Alternator)[10.1998 - 05.2001] 3SGE..SXE10 |
90105-10249 |
US $5.56 |
||
|
27039
|
27039
27039-74420
Cover, Alternator Rear End
[10.1998 - 01.2001] 3SGE..SXE10 |
27039-74420 |
— | ||
|
27039
|
27039
27039-74680
Cover, Alternator Rear End
[01.2001 - 05.2001] 3SGE..SXE10 |
27039-74680 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27064-42010 |
from US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27312-42010 |
— | ||
|
27310
|
27310
27310-74170
Frame Assy, Drive End, Alternator
[10.1998 - 05.2001] 3SGE..SXE10 |
27310-74170 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
90099-10192 |
from US $13.63 |
||
|
27330
|
27330
27330-28050
Rotor Assy, Alternator
[07.2000 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27330-28050 |
— | ||
|
27330
|
27330
27330-42020
Rotor Assy, Alternator
[10.1998 - 04.2000] 1GFE,3SGE..GXE10,SXE10 |
27330-42020 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-28050
Rotor Assy, Alternator
[10.1998 - 04.2000] 1GFE,3SGE..GXE10,SXE10 |
27330-28050 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-74680
Holder, Alternator, W/rectifier
[10.1998 - 05.2001] 3SGE..SXE10 |
27357-74680 |
— | ||
|
27359
|
27359
27359-74300
Frame, Alternator Rectifier End
[10.1998 - 05.2001] 3SGE..SXE10 |
27359-74300 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27370-75060 |
from US $15.72 |
||
|
27387
|
27387
27387-74440
Insulator, Terminal
[10.1998 - 05.2001] 3SGE..SXE10 |
27387-74440 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27388-42010 |
from US $2.36 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27389-42010 |
— | ||
|
27411
|
27411
27411-42010
Pulley, Alternator
[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27411-42010 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-74070 Regulator Assy, Generator[10.1998 - 05.2001] 3SGE..SXE10 |
27700-74070 |
US $264.99 |
||
|
2738450030
|
2738450030
27384-50030 Holder, Alternator Brush, A |
27384-50030 |
from US $2.80 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
