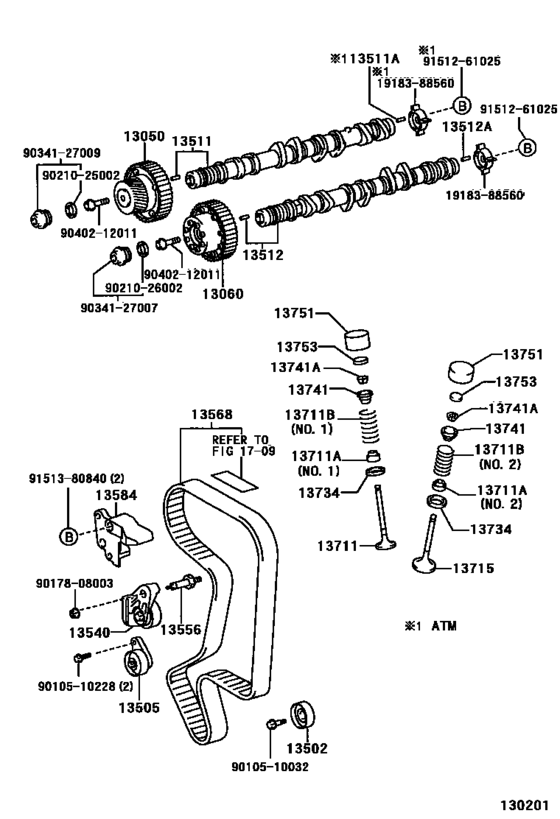

Camshaft & Valve ([10.1998 - ] (9810- )3SGE) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13050
|
13050
13050-74020 Gear Assy, Camshaft Timing (Intake)[10.1998 - 05.2001] 3SGE..SXE10 |
13050-74020 |
from US $175.48 |
||
|
13060
|
13060
13060-74010 Pulley Assy, Camshaft Timing, No.2 (Exhaust)[10.1998 - 05.2001] 3SGE..SXE10 |
13060-74010 |
from US $194.14 |
||
|
13502
|
13502
13503-88560 Idler Sub-Assy, Timing Belt, No.2[10.1998 - 05.2001] 3SGE..SXE10 |
13503-88560 |
US $40.32 |
||
|
13505
|
13505
13505-88570 Idler Sub-Assy, Timing Belt, No.1[10.1998 - 05.2001] 3SGE..SXE10 |
13505-88570 |
US $75.60 |
||
|
13511
|
13511
13501-88570 Camshaft[10.1998 - 05.2001] 3SGE..SXE10..MTM |
13501-88570 |
US $492.13 |
||
|
13512
|
13512
13502-88570 Camshaft, No.2[10.1998 - 05.2001] 3SGE..SXE10..MTM |
13502-88570 |
US $492.13 |
||
|
13512A
|
13512A
90250-04015 Pin, Straight, No.1[10.1998 - 05.2001] 3SGE..SXE10 長さ＝１１．８，外径＝４．０ |
90250-04015 |
US $1.60 |
||
|
13540
|
13540
13540-88570 Tensioner Assy, Chain, No.1[10.1998 - 05.2001] 3SGE..SXE10 |
13540-88570 |
from US $63.26 |
||
|
13556
|
13556
13556-88570 Shaft, Timing Belt Idler[10.1998 - 05.2001] 3SGE..SXE10 |
13556-88570 |
US $28.06 |
||
|
13568
|
13568
13568-80015
Belt, Timing
[10.1998 - 05.2001] 3SGE..SXE10 |
13568-80015 |
— | ||
| replacement | |||||
|
13568
|
13568
13568-79325 Belt, Timing[10.1998 - 05.2001] 3SGE..SXE10 |
13568-79325 |
from US $96.76 |
||
|
13584
|
13584
13584-88570 Bracket, Timing Belt Idler[10.1998 - 05.2001] 3SGE..SXE10 |
13584-88570 |
US $69.55 |
||
|
13711
|
13711
13711-74140
Valve, Intake
[10.1998 - 05.2001] 3SGE..SXE10..MTM |
13711-74140 |
— | ||
|
13711A
|
13711A
90913-02114 Seal Or Ring, O(For Valve Stem Oil)[10.1998 - 05.2001] 3SGE..SXE10 ＮＯ．１ |
90913-02114 |
from US $7.64 |
||
|
13711A
|
13711A
90913-02115 Seal Or Ring, O(For Valve Stem Oil)[10.1998 - 05.2001] 3SGE..SXE10 ＮＯ．２ |
90913-02115 |
from US $8.96 |
||
|
13711B
|
13711B
90501-33016 Spring, Compression(For Inner)[10.1998 - 05.2001] 3SGE..SXE10..MTM ＮＯ．２ |
90501-33016 |
US $4.54 |
||
|
13711B
|
13711B
90501-33017 Spring, Compression(For Inner)[10.1998 - 05.2001] 3SGE..SXE10..MTM ＮＯ．１ |
90501-33017 |
US $4.54 |
||
|
13715
|
13715
13715-74140 Valve, Exhaust[10.1998 - 05.2001] 3SGE..SXE10..MTM |
13715-74140 |
from US $31.90 |
||
|
13734
|
13734
13734-88560 Seat, Valve Spring[10.1998 - 05.2001] 3SGE..SXE10 |
13734-88560 |
US $2.75 |
||
|
13741
|
13741
13741-88560 Retainer, Valve Spring[10.1998 - 05.2001] 3SGE..SXE10 |
13741-88560 |
US $9.14 |
||
|
13741A
|
13741A
90913-03030 Lock, Valve Spring Retainer[10.1998 - 05.2001] 3SGE..SXE10 |
90913-03030 |
US $8.06 |
||
|
13751
|
13751
13751-88570 Lifter, Valve[10.1998 - 05.2001] 3SGE..SXE10..MTM |
13751-88570 |
US $22.85 |
||
|
13753
|
13753
13753-88003 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．５０ |
13753-88003 |
US $7.16 |
||
|
13753
|
13753
13753-88053 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．５５ |
13753-88053 |
US $7.16 |
||
|
13753
|
13753
13753-88103 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．６０ |
13753-88103 |
US $7.16 |
||
|
13753
|
13753
13753-88153 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．６５ |
13753-88153 |
US $7.16 |
||
|
13753
|
13753
13753-88203 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．７０ |
13753-88203 |
US $9.68 |
||
|
13753
|
13753
13753-88253 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．７５ |
13753-88253 |
US $9.68 |
||
|
13753
|
13753
13753-88303 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．８０ |
13753-88303 |
US $9.68 |
||
|
13753
|
13753
13753-88353 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．８５ |
13753-88353 |
US $9.68 |
||
|
13753
|
13753
13753-88403 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．９０ |
13753-88403 |
US $9.68 |
||
|
13753
|
13753
13753-88453 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝２．９５ |
13753-88453 |
US $6.88 |
||
|
13753
|
13753
13753-88503 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．００ |
13753-88503 |
US $9.68 |
||
|
13753
|
13753
13753-88553 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．０５ |
13753-88553 |
US $9.68 |
||
|
13753
|
13753
13753-88603 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．１０ |
13753-88603 |
US $9.68 |
||
|
13753
|
13753
13753-88653 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．１５ |
13753-88653 |
US $9.68 |
||
|
13753
|
13753
13753-88703 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．２０ |
13753-88703 |
US $6.88 |
||
|
13753
|
13753
13753-88753 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．２５ |
13753-88753 |
US $6.87 |
||
|
13753
|
13753
13753-88803
Shim, Valve Adjusting
[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．３０ |
13753-88803 |
— | ||
|
13753
|
13753
13753-88853
Shim, Valve Adjusting
[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．３５ |
13753-88853 |
— | ||
|
13753
|
13753
13753-88893 Shim, Valve Adjusting[10.1998 - 05.2001] 3SGE..SXE10 厚さ＝３．３９ |
13753-88893 |
US $6.88 |
||
|
1918388560
|
1918388560
19183-88560
Rotor, Signal
|
19183-88560 |
— | ||
|
9010510032
|
9010510032
90105-10032 BOLT |
90105-10032 |
from US $1.46 |
||
|
9010510228
|
9010510228
90105-10228 New Genuine Part |
90105-10228 |
US $1.97 |
||
|
9017808003
|
9017808003
90178-08003 NUT FLANGE |
90178-08003 |
from US $0.98 |
||
|
9021025002
|
9021025002
90210-25002 WASHER SEAL |
90210-25002 |
from US $0.88 |
||
|
9021026002
|
9021026002
90210-26002 WASHER SEAL |
90210-26002 |
from US $0.96 |
||
|
9034127007
|
9034127007
90341-27007 Plug, Straight Screw(For Timing Gear) |
90341-27007 |
from US $9.68 |
||
|
9034127009
|
9034127009
90341-27009 PLUG STRAIGHT SCREW |
90341-27009 |
US $7.35 |
||
|
9040212011
|
9040212011
90402-12011 NUT UNION |
90402-12011 |
US $8.96 |
||
|
9151261025
|
9151261025
91512-61025
BOLT WASHER BASED H
|
91512-61025 |
— | ||
| replacement | |||||
|
9151261025
|
9151261025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9151380840
|
9151380840
91513-80840 New Genuine Part |
91513-80840 |
US $2.33 |
||
