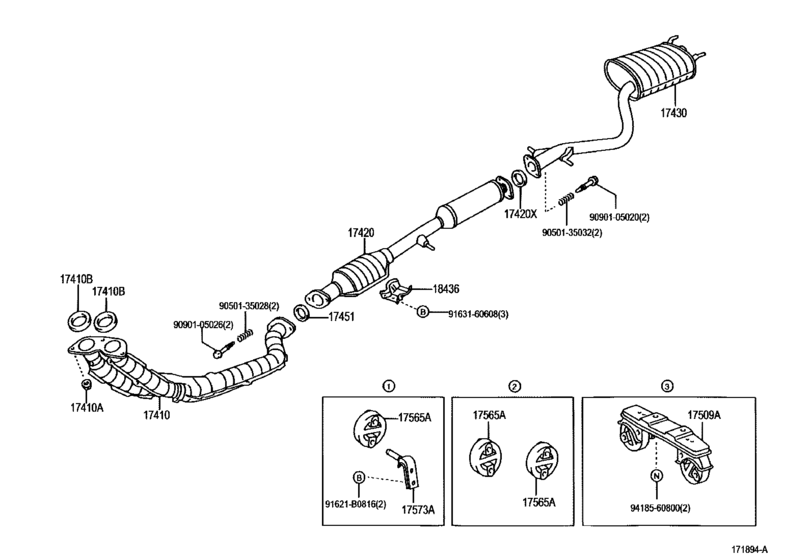

Exhaust Pipe ([10.1998 - ] (9810- )3SGE..MTM) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-7A860 Pipe Assy, Exhaust, Front[10.1998 - 05.2001] 3SGE..SXE10..MTM |
17410-7A860 |
US $592.59 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[10.1998 - 05.2001] 3SGE..SXE10 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[10.1998 - 05.2001] 3SGE..SXE10 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06065 Gasket, Exhaust Pipe[10.1998 - 05.2001] 3SGE..SXE10 |
90917-06065 |
from US $4.66 |
||
|
17420
|
17420
17420-7A230 Pipe Assy, Exhaust, Center[10.1998 - 05.2001] 3SGE..SXE10..MTM |
17420-7A230 |
US $1,199.74 |
||
|
17420
|
17420
17420-7A290 Pipe Assy, Exhaust, Center[05.2001 -] 3SGE..SXE10..MTM |
17420-7A290 |
US $1,456 |
||
|
17420X
|
17420X
17451-74060 Gasket, Exhaust Pipe, Center[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
17451-74060 |
from US $20.14 |
||
|
17430
|
17430
17430-7B100 Pipe Assy, Exhaust, Tail[10.1998 - 05.2001] 3SGE..SXE10 |
17430-7B100 |
US $548.91 |
||
|
17430
|
17430
17430-7B330 Pipe Assy, Exhaust, Tail[05.2001 -] 1GFE,3SGE..GXE10,SXE10..SED |
17430-7B330 |
US $624.62 |
||
|
17451
|
17451
17451-20020 Gasket, Exhaust Pipe[10.1998 - 05.2001] 3SGE..SXE10 |
17451-20020 |
from US $15.27 |
||
|
17509A
|
17509A
17509-74230 Bracket Sub-Assy, Exhaust Pipe No.4 Support[10.1998 - 05.2001] 1GFE,3SGE..GXE10,SXE10 |
17509-74230 |
US $44.02 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[10.1998 - 05.2001] 3SGE..SXE10 |
17565-46040 |
from US $13.12 |
||
|
17573A
|
17573A
17573-74240
Bracket, Exhaust Pipe Support, No.3
[10.1998 - 05.2001] 3SGE..SXE10 |
17573-74240 |
— | ||
|
18436
|
18436
18436-46040 Protector, Monolithic Converter, No.1[10.1998 - 05.2001] 3SGE..SXE10..MTM |
18436-46040 |
US $29.35 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.22 |
||
|
9050135032
|
9050135032
90501-35032 SPRING COMPRESSION |
90501-35032 |
from US $3.41 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
|
9163160608
|
9163160608
91631-60608 New Genuine Part |
91631-60608 |
US $1.46 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
