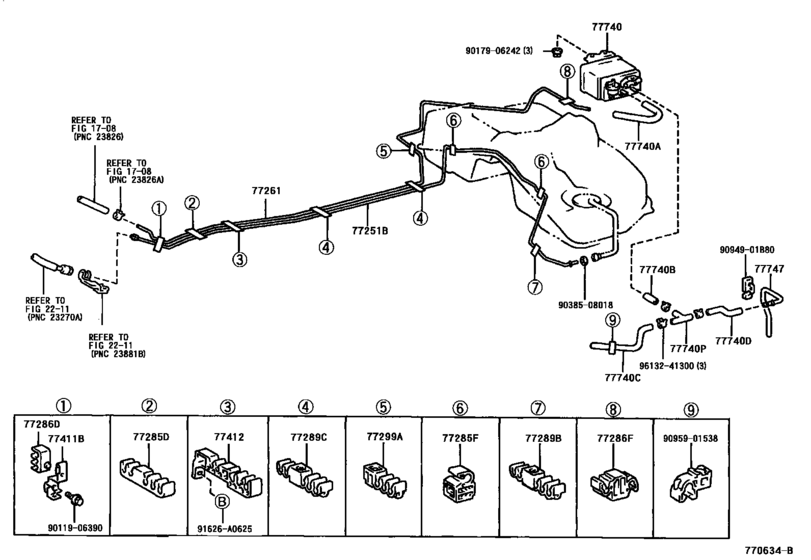

Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-53010 Tube, Fuel Main[10.1998 - 05.2001] SXE10 |
77251-53010 |
US $84.45 |
||
|
77261
|
77261
77261-53010 Tube Sub-Assy, Fuel Emission[10.1998 - 05.2000] SXE10 |
77261-53010 |
US $57.95 |
||
|
77261
|
77261
77261-53011 Tube Sub-Assy, Fuel Emission[05.2000 - 05.2001] SXE10 |
77261-53011 |
US $57.95 |
||
|
77261
|
77261
77261-53050 Tube Sub-Assy, Fuel Emission[05.2001 -] SXE10 |
77261-53050 |
US $58.09 |
||
|
77285D
|
77285D
77285-51010 Clamp, Fuel Tube, No.1[10.1998 - 05.2001] GXE10,SXE10 |
77285-51010 |
US $6.12 |
||
|
77285F
|
77285F
77285-53010 Clamp, Fuel Tube, No.1[10.1998 - 05.2001] SXE10 |
77285-53010 |
US $7.28 |
||
|
77286D
|
77286D
77286-30100 Clamp, Fuel Tube, No.1[10.1998 - 05.2001] GXE10,SXE10 |
77286-30100 |
US $5.82 |
||
|
77286F
|
77286F
77286-53010 Clamp, Fuel Tube W/grommet, No.1[10.1998 - 05.2001] SXE10;GXE10..MTM |
77286-53010 |
US $9.09 |
||
|
77289B
|
77289B
77289-30050 Clamp, Fuel Tube, No.4[10.1998 - 05.2001] SXE10 |
77289-30050 |
US $7.43 |
||
|
77289C
|
77289C
77289-51010 Clamp, Fuel Tube, No.4[10.1998 - 05.2001] GXE10,SXE10 |
77289-51010 |
US $5.77 |
||
|
77299A
|
77299A
77299-51010 Clamp, Brake Tube, No.5[10.1998 - 05.2001] SXE10 |
77299-51010 |
US $8.91 |
||
|
77411B
|
77411B
77411-22030 Support, Fuel Tube Grommet, No.1[10.1998 - 05.2001] SXE10 |
77411-22030 |
US $11.21 |
||
|
77412
|
77412
77412-53010 Support, Fuel Tube Grommet, No.2[10.1998 - 05.2001] SXE10 |
77412-53010 |
US $16.02 |
||
|
77740
|
77740
77740-22460
Canister Assy, Charcoal
[05.2001 -] GXE1#,JCE1#,SXE10 |
77740-22460 |
— | ||
|
77740
|
77740
77740-51010
Canister Assy, Charcoal
[10.1998 - 05.2001] GXE10,SXE10 |
77740-51010 |
— | ||
|
77740A
|
77740A
23829-46140 Hose, Fuel, No.1(For Charcoal Canister)[10.1998 - 05.2001] SXE10 |
23829-46140 |
US $16.60 |
||
|
77740A
|
77740A
23829-46300 Hose, Fuel, No.1(For Charcoal Canister)[05.2001 -] SXE10 長さ＝３２０ |
23829-46300 |
US $24.32 |
||
|
77740B
|
77740B
23826-70020
Hose, Fuel, No.2(For Charcoal Canister)
[10.1998 - 05.2001] GXE10,SXE10 長さ＝４４ |
23826-70020 |
— | ||
| replacement | |||||
|
77740B
|
77740B
95328-07006 Hose, Fuel, No.2(For Charcoal Canister)[10.1998 - 05.2001] GXE10,SXE10 長さ＝４４ |
95328-07006 |
US $1.14 |
||
|
77740B
|
77740B
23829-46320
Hose, Fuel, No.2(For Charcoal Canister)
[05.2001 -] GXE10,SXE10..SED 長さ＝４０,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
23829-46320 |
— | ||
| replacement | |||||
|
77740B
|
77740B
95328-07004
Hose, Fuel Vapor Feed, No.1
[05.2001 -] GXE10,SXE10..SED 長さ＝４０,ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
95328-07004 |
— | ||
|
77740B
|
77740B
23829-74120 Hose, Fuel, No.2(For Charcoal Canister)[05.2002 -] GXE10,SXE10..SED 長さ＝４０ |
23829-74120 |
US $4.95 |
||
| replacement | |||||
|
77740B
|
77740B
95328-07004
Hose, Fuel Vapor Feed, No.1
[05.2002 -] GXE10,SXE10..SED 長さ＝４０ |
95328-07004 |
— | ||
|
77740C
|
77740C
23829-46230 Hose, Fuel, No.3(For Charcoal Canister)[10.1998 - 05.2001] GXE10,SXE10 |
23829-46230 |
US $21.69 |
||
|
77740C
|
77740C
23829-46270
Hose, Fuel, No.1(For Charcoal Canister)
[05.2001 -] GXE1#,JCE1#,SXE10 |
23829-46270 |
— | ||
|
77740D
|
77740D
23829-46280 Hose, Fuel, No.3(For Charcoal Canister)[05.2001 -] GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
23829-46280 |
US $12.75 |
||
|
77740D
|
77740D
23829-46310 Hose, Fuel, No.4(For Charcoal Canister)[05.2002 -] GXE10,SXE10..SED |
23829-46310 |
US $15.29 |
||
|
77740D
|
77740D
23829-70020 Hose, Fuel, No.4(For Charcoal Canister)[10.1998 - 05.2001] GXE10,SXE10 |
23829-70020 |
US $19.66 |
||
|
77740P
|
77740P
90413-07002 Way, 3(For Charcoal Canister)[10.1998 - 05.2001] GXE10,SXE10 |
90413-07002 |
US $7.16 |
||
|
77747
|
77747
77747-51010 Pipe, Charcoal Canister, No.1[05.2001 -] GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
77747-51010 |
US $8.91 |
||
|
77747
|
77747
77747-53010 Pipe, Charcoal Canister, No.1[05.2002 -] GXE10,SXE10..SED |
77747-53010 |
US $13.83 |
||
|
77747
|
77747
77747-53020 Pipe, Charcoal Canister, No.1[10.1998 - 05.2001] GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
77747-53020 |
US $11.50 |
||
|
91626A0625
|
91626A0625
91626-A0625 New Genuine Part |
91626-A0625 |
US $1.38 |
||
|
9094901B80
|
9094901B80
90949-01B80
Clamp, Tube
|
90949-01B80 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9017906242
|
9017906242
90179-06242
Direct
|
90179-06242 |
— | ||
| replacement | |||||
|
9017906242
|
9017906242
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9038508018
|
9038508018
90385-08018 New Genuine Part |
90385-08018 |
US $3.93 |
||
|
9095901538
|
9095901538
90959-01538 New Genuine Part |
90959-01538 |
US $3.35 |
||
|
9613241300
|
9613241300
96132-41300
Clip, No.4(For Idle-Up Hose)
|
96132-41300 |
— | ||
| replacement | |||||
|
9613241300
|
9613241300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
