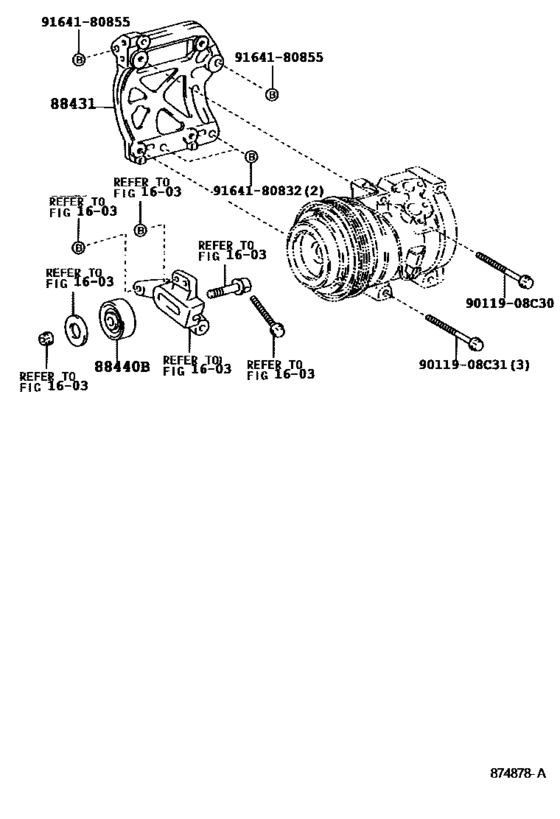

Heating & Air Conditioning - Compressor ([05.2001 - ] (0105- )SXE10) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-53010
Bracket, Compressor Mounting, No.1
[10.1998 - 05.2001] SXE10 |
88431-53010 |
— | ||
|
88440B
|
88440B
88440-20120 Pulley Assy, Idle[10.1998 - 05.2001] SXE10 |
88440-20120 |
US $103.32 |
||
|
9011908C30
|
9011908C30
90119-08C30 New Genuine Part |
90119-08C30 |
from US $0.89 |
||
|
9011908C31
|
9011908C31
90119-08C31 New Genuine Part |
90119-08C31 |
US $5.24 |
||
|
9164180832
|
9164180832
91641-80832
New Genuine Part
|
91641-80832 |
— | ||
|
9164180855
|
9164180855
91641-80855
Bolt
|
91641-80855 |
— |
