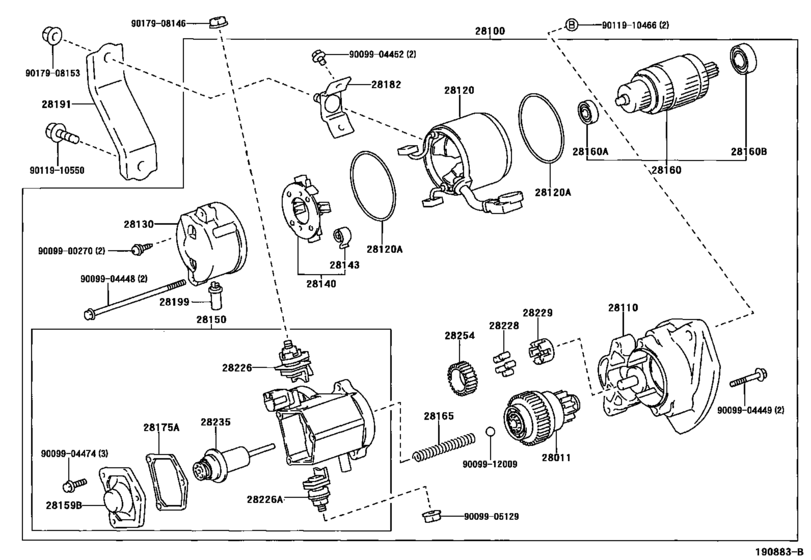

Starter ([10.1998 - 05.2001] 12V 1.4KW (9810-0105)3SGE) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-76070 Clutch Sub-Assy, Starter[10.1998 - 05.2001] 3SGE..SXE10 |
28011-76070 |
from US $48.03 |
||
|
28100
|
28100
28100-74310
Starter Assy
[10.1998 - 05.2001] 3SGE..SXE10 １２Ｖ １．４ＫＷ |
28100-74310 |
— | ||
|
28110
|
28110
28110-74310 Housing Assy, Starter Drive[10.1998 - 05.2001] 3SGE..SXE10 |
28110-74310 |
US $84.45 |
||
|
28120
|
28120
28120-74310
Yoke Assy, Starter
[10.1998 - 05.2001] 3SGE..SXE10 12V 1.4KW |
28120-74310 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[10.1998 - 05.2001] 3SGE..SXE10 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-74310
Frame Assy, Starter Commutator End
[10.1998 - 05.2001] 3SGE..SXE10 |
28130-74310 |
— | ||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[10.1998 - 05.2001] 3SGE..SXE10 |
28140-76070 |
from US $17.18 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[10.1998 - 05.2001] 3SGE..SXE10 |
90099-17112 |
— | ||
|
28150
|
28150
28150-74310 Switch Assy, Magnet Starter[10.1998 - 05.2001] 3SGE..SXE10 |
28150-74310 |
US $203.84 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[10.1998 - 05.2001] 3SGE..SXE10 |
28159-55050 |
— | ||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[10.1998 - 05.2001] 3SGE..SXE10 12V 1.4KW |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[10.1998 - 05.2001] 3SGE..SXE10 |
90099-10196 |
from US $5.59 |
||
|
28160B
|
28160B
90099-10197 Bearing, Starter Armature[10.1998 - 05.2001] 3SGE..SXE10 |
90099-10197 |
from US $6.64 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[10.1998 - 05.2001] 3SGE..SXE10 |
28165-76070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[10.1998 - 05.2001] 3SGE..SXE10 |
28175-55050 |
from US $1.67 |
||
|
28182
|
28182
28183-54230
Stay, Starter Commutator End Frame
[10.1998 - 05.2001] 3SGE..SXE10 |
28183-54230 |
— | ||
|
28191
|
28191
28191-74010 Stay, Starter[10.1998 - 05.2001] 3SGE..SXE10 |
28191-74010 |
US $21.69 |
||
|
28199
|
28199
28199-74110 Cover, Starter End Frame[10.1998 - 05.2001] 3SGE..SXE10 |
28199-74110 |
US $2.89 |
||
|
28226
|
28226
28226-64200
Starter Kit, Battery Terminal
[10.1998 - 05.2001] 3SGE..SXE10 |
28226-64200 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-22050 Starter Kit, Battery Terminal[10.1998 - 05.2001] 3SGE..SXE10 |
28226-22050 |
from US $9.13 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[10.1998 - 05.2001] 3SGE..SXE10 |
28226-74070 |
from US $8.39 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[10.1998 - 05.2001] 3SGE..SXE10 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[10.1998 - 05.2001] 3SGE..SXE10 |
28229-74070 |
US $1.44 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[10.1998 - 05.2001] 3SGE..SXE10 |
28235-55050 |
from US $20.27 |
||
|
28254
|
28254
28254-74070
Pinion, Starter Drive
[10.1998 - 05.2001] 3SGE..SXE10 |
28254-74070 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904452
|
9009904452
90099-04452 New Genuine Part |
90099-04452 |
US $5.10 |
||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.79 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
