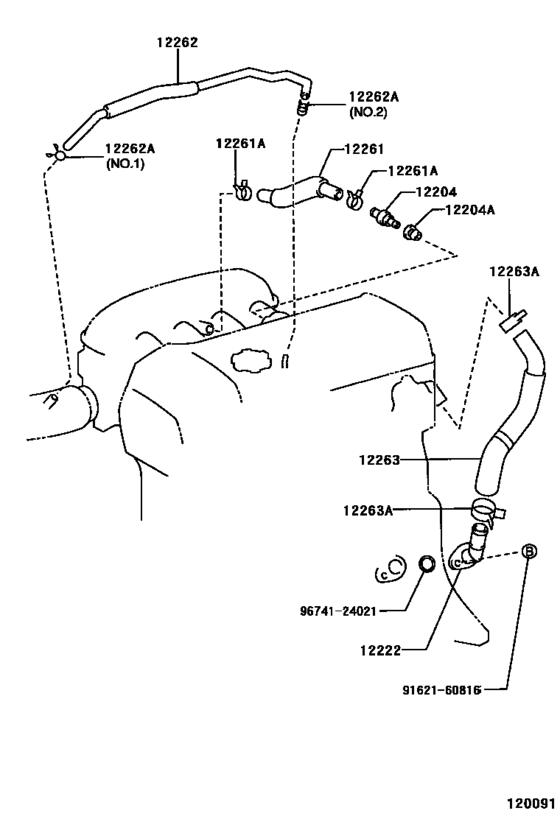

Ventilation Hose ([10.1998 - ] (9810- )3SGE) Diagram Toyota ALTEZZA/ ALTEZZA GITA
- Year
- 1998 - 2005
- Sales region
- Japan
- Frame
- SXE10
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- Altezza
- From
- 10.1998
- To
- 07.2005
- Vehicle Model
- Altezza
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-88570 Valve Sub-Assy, Ventilation[10.1998 - 05.2001] 3SGE..SXE10 |
12204-88570 |
from US $16.19 |
||
|
12204A
|
12204A
90480-18008 Grommet(For Ventilation System)[10.1998 - 05.2001] 3SGE..SXE10 |
90480-18008 |
from US $2.67 |
||
|
12222
|
12222
12222-88560
Tube, Ventilation, No.2
[10.1998 - 05.2001] 3SGE..SXE10 |
12222-88560 |
— | ||
|
12261
|
12261
12261-88570 Hose, Ventilation[10.1998 - 05.2001] 3SGE..SXE10 |
12261-88570 |
US $25.70 |
||
|
12261A
|
12261A
90467-23009 Clip Or Clamp(For Ventilation Hose)[04.2002 -] 3SGE..SXE10 |
90467-23009 |
from US $2.42 |
||
|
12261A
|
12261A
90467-23013 Clip Or Clamp(For Ventilation Hose)[10.1998 - 05.2001] 3SGE..SXE10 |
90467-23013 |
US $4.37 |
||
| replacement | |||||
|
12261A
|
12261A
90467-23009 Clip Or Clamp(For Ventilation Hose)[10.1998 - 05.2001] 3SGE..SXE10 |
90467-23009 |
from US $2.42 |
||
|
12262
|
12262
12262-88570 Hose, Ventilation, No.2[10.1998 - 05.2001] 3SGE..SXE10 |
12262-88570 |
US $41.50 |
||
|
12262A
|
12262A
90467-18003 Clip Or Clamp(For Ventilation Hose)[10.1998 - 05.2001] 3SGE..SXE10 ＮＯ．１ |
90467-18003 |
from US $2.15 |
||
|
12262A
|
12262A
90467-19012
Clip
[10.1998 - 05.2001] 3SGE..SXE10 ＮＯ．２ |
90467-19012 |
— | ||
| replacement | |||||
|
12262A
|
12262A
90467-19019 Clip[10.1998 - 05.2001] 3SGE..SXE10 ＮＯ．２ |
90467-19019 |
from US $4.19 |
||
|
12262A
|
12262A
90467-19019 Clip[04.2002 -] 3SGE..SXE10 ＮＯ．２ |
90467-19019 |
from US $4.19 |
||
|
12263
|
12263
12263-88570
Hose, Ventilation, No.3
[10.1998 - 05.2001] 3SGE..SXE10 |
12263-88570 |
— | ||
|
12263A
|
12263A
90467-26007 Clip(For Ventilation Hose No.2)[10.1998 - 05.2001] 3SGE..SXE10 |
90467-26007 |
US $4.84 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9674124021
|
9674124021
96741-24021
New Genuine Part
|
96741-24021 |
— | ||
