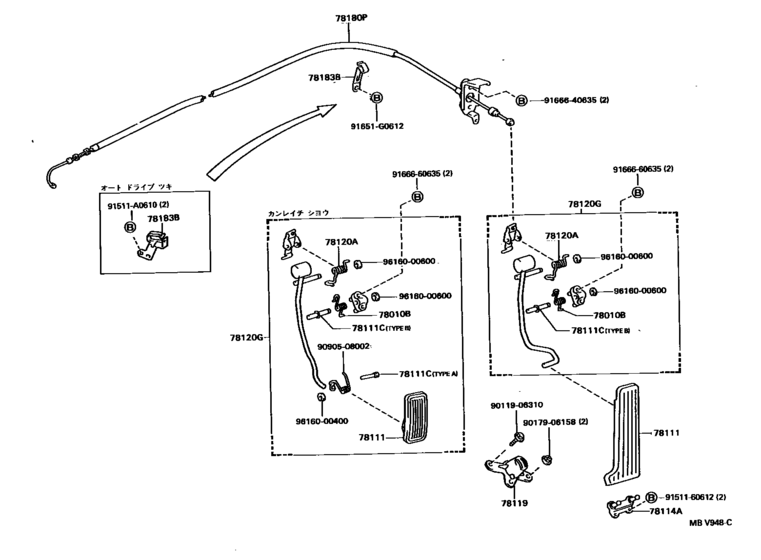

Accelerator Link ([10.1991 - ] (9110- )Q) Diagram Toyota ARISTO
- Year
- 1991 - 1997
- Sales region
- Japan
- Frame
- JZS147
- grade
- Q
- ENGINE
- 2JZ-GE
- From
- 10.1991
- To
- 08.1997
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010B
|
78010B
90508-18103 Spring, Torsion (For Accelerator Link)[10.1991 - 08.1997] JZS147,UZS143 |
90508-18103 |
US $2.62 |
||
|
78111
|
78111
78111-30100 Pedal, Accelerator[10.1991 - 08.1997] JZS147,UZS143 ｶﾝﾚｲﾁ ｼﾖｳ |
78111-30100 |
US $12.38 |
||
|
78111
|
78111
78111-30110 Pedal, Accelerator[10.1991 - 08.1997] JZS147,UZS143 |
78111-30110 |
US $12.38 |
||
|
78111C
|
78111C
90249-05043 Pin (For Accelerator Pedal)[10.1991 - 08.1997] JZS147,UZS143 ｶﾝﾚｲﾁ ｼﾖｳ,タイプ Ａ |
90249-05043 |
US $2.33 |
||
|
78111C
|
78111C
90249-08116
Pin (For Accelerator Pedal)
[10.1991 - 08.1997] JZS147,UZS143 タイプ Ｂ |
90249-08116 |
— | ||
|
78114A
|
78114A
78114-30060 Bracket, Accelerator Pedal Support[10.1991 - 08.1997] JZS147,UZS143 |
78114-30060 |
US $9.46 |
||
|
78119
|
78119
78119-30070 Stopper, Accelerator Pedal Rod[10.1991 - 08.1993] JZS147..Q |
78119-30070 |
US $18.93 |
||
|
78120A
|
78120A
90508-29022 Spring (For Accelerator Link)[10.1991 - 08.1997] JZS147,UZS143 |
90508-29022 |
US $4.80 |
||
|
78120G
|
78120G
78120-30750 Rod Assy, Accelerator Pedal[10.1991 - 08.1997] JZS147,UZS143 |
78120-30750 |
US $49.50 |
||
|
78120G
|
78120G
78120-30760 Rod Assy, Accelerator Pedal[10.1991 - 08.1997] JZS147,UZS143 ｶﾝﾚｲﾁ ｼﾖｳ |
78120-30760 |
US $49.50 |
||
|
78180P
|
78180P
78180-3A320 Cable Assy, Accelerator Control[10.1991 - 08.1997] JZS147..Q |
78180-3A320 |
US $71.34 |
||
|
78183B
|
78183B
78183-30100 Clamp, Accelerator Control Cable[10.1991 - 08.1997] JZS147,UZS143..V,Z; JZS147..Q ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
78183-30100 |
US $4.66 |
||
|
78183B
|
78183B
78183-30110 Clamp, Accelerator Control Cable[10.1991 - 08.1997] JZS147..Q |
78183-30110 |
US $5.10 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91651G0612
|
91651G0612
91651-G0612 New Genuine Part |
91651-G0612 |
US $0.61 |
||
|
9011906310
|
9011906310
90119-06310 New Genuine Part |
90119-06310 |
US $1.60 |
||
| replacement | |||||
|
9011906310
|
9011906310
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9090508002
|
9090508002
90905-08002 Spring (For Accelerator Pedal) |
90905-08002 |
US $2.06 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9166660635
|
9166660635
91666-60635 New Genuine Part |
91666-60635 |
US $1.44 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
