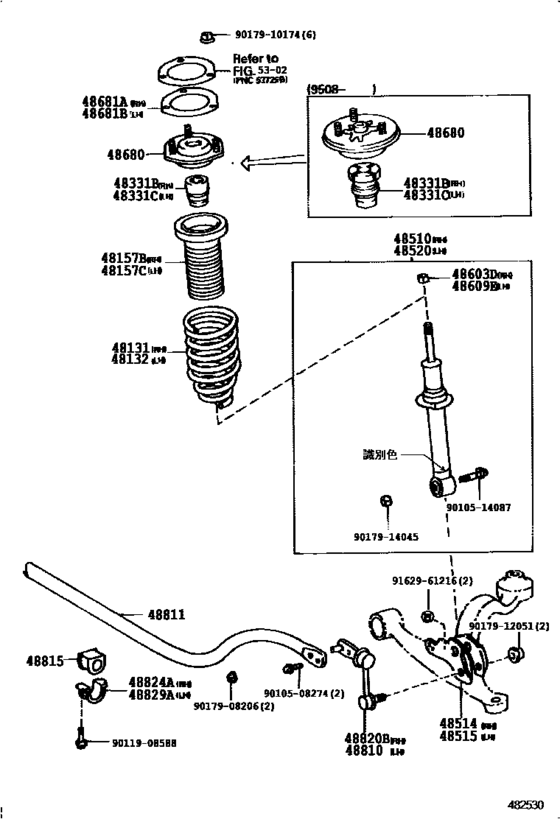

Front Spring & Shock Absorber ([10.1991 - ] (9110- )Q) Diagram Toyota ARISTO
- Year
- 1991 - 1997
- Sales region
- Japan
- Frame
- JZS147
- grade
- Q
- ENGINE
- 2JZ-GE
- From
- 10.1991
- To
- 08.1997
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-30760 Spring, Front Coil, Rh[10.1991 - 08.1995] JZS147..Q |
48131-30760 |
US $110.66 |
||
| replacement | |||||
|
48131
|
48131
48131-30770 Spring, Front Coil, Lh[10.1991 - 08.1995] JZS147..Q |
48131-30770 |
US $110.66 |
||
|
48131
|
48131
48131-3A180 Spring, Front Coil, Rh[08.1995 - 08.1997] JZS147..Q |
48131-3A180 |
from US $122.42 |
||
|
48131
|
48131
48131-3A210 Spring, Front Coil, Rh[08.1996 - 08.1997] JZS147..Q 3.0Qﾘﾐﾃﾂﾄﾞ *(A),*(B) |
48131-3A210 |
US $126.67 |
||
|
48132
|
48132
48131-30770 Spring, Front Coil, Lh[10.1991 - 08.1995] JZS147..Q |
48131-30770 |
US $110.66 |
||
|
48132
|
48132
48131-3A190 Spring, Front Coil, Lh[08.1995 - 08.1997] JZS147..Q |
48131-3A190 |
from US $122.42 |
||
|
48132
|
48132
48131-3A220 Spring, Front Coil, Lh[08.1996 - 08.1997] JZS147..Q 3.0Qﾘﾐﾃﾂﾄﾞ *(A),*(B) |
48131-3A220 |
US $126.67 |
||
|
48157B
|
48157B
48157-30040 Insulator, Front Coil Spring, Upper[10.1991 - 08.1997] JZS147 |
48157-30040 |
from US $24.62 |
||
|
48157C
|
48157C
48157-30040 Insulator, Front Coil Spring, Upper[10.1991 - 08.1997] JZS147 |
48157-30040 |
from US $24.62 |
||
|
48331B
|
48331B
48331-30090 Bumper, Front Spring, Rh[10.1991 - 08.1995] JZS147..Q |
48331-30090 |
US $14.56 |
||
|
48331B
|
48331B
48331-30120 Bumper, Front Spring, Rh[08.1995 - 08.1997] JZS147 |
48331-30120 |
from US $14.36 |
||
|
48331C
|
48331C
48331-30090 Bumper, Front Spring, Rh[10.1991 - 08.1995] JZS147..Q |
48331-30090 |
US $14.56 |
||
|
48331C
|
48331C
48331-30120 Bumper, Front Spring, Rh[08.1995 - 08.1997] JZS147 |
48331-30120 |
from US $14.36 |
||
|
48510
|
48510
48510-39175 Absorber Assy, Shock, Front Rh[10.1991 - 01.1993] JZS147..Q シルバー |
48510-39175 |
US $115.02 |
||
| replacement | |||||
|
48510
|
48510
48510-80156 Absorber Assy, Shock, Front Rh[10.1991 - 01.1993] JZS147..Q シルバー |
48510-80156 |
US $149.97 |
||
|
48510
|
48510
48510-39195 Absorber Assy, Shock, Front Rh[09.1993 - 12.1993] JZS147..Q 紫色 |
48510-39195 |
US $313.04 |
||
| replacement | |||||
|
48510
|
48510
48510-80155 Absorber Assy, Shock, Front Rh[09.1993 - 12.1993] JZS147..Q 紫色 |
48510-80155 |
from US $232.75 |
||
|
48510
|
48510
48510-39206 Absorber Assy, Shock, Front Rh[01.1993 - 09.1993] JZS147..Q シルバー |
48510-39206 |
US $136.86 |
||
| replacement | |||||
|
48510
|
48510
48510-80156 Absorber Assy, Shock, Front Rh[01.1993 - 09.1993] JZS147..Q シルバー |
48510-80156 |
US $149.97 |
||
|
48510
|
48510
48510-39455 Absorber Assy, Shock, Front Rh[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48510-39455 |
US $313.04 |
||
| replacement | |||||
|
48510
|
48510
48510-80155 Absorber Assy, Shock, Front Rh[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48510-80155 |
from US $232.75 |
||
|
48510
|
48510
48510-39465 Absorber Assy, Shock, Front Rh[08.1995 - 08.1997] JZS147..Q |
48510-39465 |
US $313.04 |
||
| replacement | |||||
|
48510
|
48510
48510-80157 Absorber Assy, Shock, Front Rh[08.1995 - 08.1997] JZS147..Q |
48510-80157 |
US $313.04 |
||
|
48514
|
48514
48514-30030 Bracket, Front Shock Absorber, Lower Rh[10.1991 - 08.1997] JZS147 |
48514-30030 |
US $24.46 |
||
|
48515
|
48515
48515-30030 Bracket, Front Shock Absorber, Lower Lh[10.1991 - 08.1997] JZS147 |
48515-30030 |
US $24.46 |
||
|
48520
|
48520
48510-39175 Absorber Assy, Shock, Front Rh[10.1991 - 01.1993] JZS147..Q シルバー |
48510-39175 |
US $115.02 |
||
| replacement | |||||
|
48520
|
48520
48510-80156 Absorber Assy, Shock, Front Rh[10.1991 - 01.1993] JZS147..Q シルバー |
48510-80156 |
US $149.97 |
||
|
48520
|
48520
48510-39195 Absorber Assy, Shock, Front Rh[09.1993 - 12.1993] JZS147..Q 紫色 |
48510-39195 |
US $313.04 |
||
| replacement | |||||
|
48520
|
48520
48510-80155 Absorber Assy, Shock, Front Rh[09.1993 - 12.1993] JZS147..Q 紫色 |
48510-80155 |
from US $232.75 |
||
|
48520
|
48520
48510-39206 Absorber Assy, Shock, Front Rh[01.1993 - 09.1993] JZS147..Q シルバー |
48510-39206 |
US $136.86 |
||
| replacement | |||||
|
48520
|
48520
48510-80156 Absorber Assy, Shock, Front Rh[01.1993 - 09.1993] JZS147..Q シルバー |
48510-80156 |
US $149.97 |
||
|
48520
|
48520
48510-39455 Absorber Assy, Shock, Front Rh[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48510-39455 |
US $313.04 |
||
| replacement | |||||
|
48520
|
48520
48510-80155 Absorber Assy, Shock, Front Rh[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48510-80155 |
from US $232.75 |
||
|
48520
|
48520
48510-39465 Absorber Assy, Shock, Front Rh[08.1995 - 08.1997] JZS147..Q |
48510-39465 |
US $313.04 |
||
| replacement | |||||
|
48520
|
48520
48510-80157 Absorber Assy, Shock, Front Rh[08.1995 - 08.1997] JZS147..Q |
48510-80157 |
US $313.04 |
||
|
48603D
|
48603D
94187-11200
Nut
[10.1991 - 08.1997] JZS147..Q |
94187-11200 |
— | ||
| replacement | |||||
|
48603D
|
48603D
90177-12002 Nut[10.1991 - 08.1997] JZS147..Q |
90177-12002 |
US $1.44 |
||
|
48609E
|
48609E
94187-11200
Nut
[10.1991 - 08.1997] JZS147..Q |
94187-11200 |
— | ||
| replacement | |||||
|
48609E
|
48609E
90177-12002 Nut[10.1991 - 08.1997] JZS147..Q |
90177-12002 |
US $1.44 |
||
|
48680
|
48680
48609-30020 Support Sub-Assy, Front Suspension, Rh[08.1995 - 08.1997] JZS147..Q |
48609-30020 |
US $66.10 |
||
|
48680
|
48680
48609-30030 Support Assy, Front Suspension[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48609-30030 |
US $65.81 |
||
|
48680
|
48680
48680-30020 Support Assy, Front Suspension[10.1991 - 01.1993] JZS147..Q |
48680-30020 |
US $125.22 |
||
| replacements | |||||
|
48680
|
48680
48331-30120 Bumper, Front Spring, Rh[10.1991 - 01.1993] JZS147..Q |
48331-30120 |
from US $14.36 |
||
|
48680
|
48680
48609-30030 Support Assy, Front Suspension[10.1991 - 01.1993] JZS147..Q |
48609-30030 |
US $65.81 |
||
|
48680
|
48680
48680-30040 Support Assy, Front Suspension[01.1993 - 10.1993] JZS147..Q |
48680-30040 |
US $100.46 |
||
| replacements | |||||
|
48680
|
48680
48331-30120 Bumper, Front Spring, Rh[01.1993 - 10.1993] JZS147..Q |
48331-30120 |
from US $14.36 |
||
|
48680
|
48680
48609-30030 Support Assy, Front Suspension[01.1993 - 10.1993] JZS147..Q |
48609-30030 |
US $65.81 |
||
|
48680
|
48680
48680-30050 Support Assy, Front Suspension[10.1993 - 08.1995] JZS147..Q |
48680-30050 |
US $100.46 |
||
| replacements | |||||
|
48680
|
48680
48331-30120 Bumper, Front Spring, Rh[10.1993 - 08.1995] JZS147..Q |
48331-30120 |
from US $14.36 |
||
|
48680
|
48680
48609-30020 Support Sub-Assy, Front Suspension, Rh[10.1993 - 08.1995] JZS147..Q |
48609-30020 |
US $66.10 |
||
|
48681A
|
48681A
48681-30010 Gasket, Front Suspension Support, Rh[10.1991 - 01.1993] JZS147,UZS143 |
48681-30010 |
US $12.52 |
||
|
48681A
|
48681A
48681-30020 Gasket, Front Suspension Support[01.1993 - 08.1997] JZS147..Q |
48681-30020 |
US $13.76 |
||
|
48681B
|
48681B
48681-30010 Gasket, Front Suspension Support, Rh[10.1991 - 01.1993] JZS147,UZS143 |
48681-30010 |
US $12.52 |
||
|
48681B
|
48681B
48681-30020 Gasket, Front Suspension Support[01.1993 - 08.1997] JZS147..Q |
48681-30020 |
US $13.76 |
||
|
48810
|
48810
48810-30010 Link Assy, Front Stabilizer, Lh[08.1995 - 08.1997] JZS147 |
48810-30010 |
from US $119.88 |
||
|
48810
|
48810
48810-30020 Link Assy, Front Stabilizer, Lh[10.1991 - 08.1995] JZS147 |
48810-30020 |
US $107.74 |
||
| replacement | |||||
|
48810
|
48810
48810-30010 Link Assy, Front Stabilizer, Lh[10.1991 - 08.1995] JZS147 |
48810-30010 |
from US $119.88 |
||
|
48811
|
48811
48811-30390 Bar, Stabilizer, Front[10.1991 - 08.1995] JZS147 |
48811-30390 |
US $208.21 |
||
|
48811
|
48811
48811-30490
Bar, Stabilizer, Front
[08.1995 - 08.1997] JZS147 |
48811-30490 |
— | ||
|
48811
|
48811
48811-30500 Bar, Stabilizer, Front[08.1995 - 08.1996] JZS147..Q L ﾊﾟﾂｹ-ｼﾞ *(L) |
48811-30500 |
US $173.26 |
||
|
48815
|
48815
48815-30370 Bush, Front Stabilizer Bar, No.1[10.1991 - 01.1993] JZS147 |
48815-30370 |
US $9.03 |
||
| replacement | |||||
|
48815
|
48815
48815-30430 Bush, Front Stabilizer Bar, No.1[10.1991 - 01.1993] JZS147 |
48815-30430 |
from US $9.03 |
||
|
48815
|
48815
48815-30390 Bush, Front Stabilizer Bar, No.1[01.1993 - 08.1995] JZS147,UZS143 |
48815-30390 |
US $9.03 |
||
| replacement | |||||
|
48815
|
48815
48815-30430 Bush, Front Stabilizer Bar, No.1[01.1993 - 08.1995] JZS147,UZS143 |
48815-30430 |
from US $9.03 |
||
|
48815
|
48815
48815-30440
Bush, Front Stabilizer Bar, No.1
[08.1995 - 08.1997] JZS147 |
48815-30440 |
— | ||
|
48820B
|
48820B
48820-30030 Link Assy, Front Stabilizer, Rh[08.1995 - 08.1997] JZS147 |
48820-30030 |
from US $115.09 |
||
|
48820B
|
48820B
48820-30040 Link Assy, Front Stabilizer, Rh[10.1991 - 08.1995] JZS147 |
48820-30040 |
US $107.74 |
||
| replacement | |||||
|
48820B
|
48820B
48820-30030 Link Assy, Front Stabilizer, Rh[10.1991 - 08.1995] JZS147 |
48820-30030 |
from US $115.09 |
||
|
48824A
|
48824A
48824-30080 Bracket, Front Stabilizer, No.1 Rh[10.1991 - 10.1992] JZS147 |
48824-30080 |
US $11.50 |
||
| replacement | |||||
|
48824A
|
48824A
48824-30100
Bracket, Stabilizer, Front
[10.1991 - 10.1992] JZS147 |
48824-30100 |
— | ||
|
48824A
|
48824A
48824-30100
Bracket, Stabilizer, Front
[10.1992 - 08.1997] JZS147,UZS143 |
48824-30100 |
— | ||
|
48829A
|
48829A
48824-30080 Bracket, Front Stabilizer, No.1 Rh[10.1991 - 10.1992] JZS147 |
48824-30080 |
US $11.50 |
||
| replacement | |||||
|
48829A
|
48829A
48824-30100
Bracket, Stabilizer, Front
[10.1991 - 10.1992] JZS147 |
48824-30100 |
— | ||
|
48829A
|
48829A
48824-30100
Bracket, Stabilizer, Front
[10.1992 - 08.1997] JZS147,UZS143 |
48824-30100 |
— | ||
|
9010508274
|
9010508274
90105-08274 BOLT, WASHER BASED |
90105-08274 |
US $1.60 |
||
|
9010514087
|
9010514087
90105-14087 Bolt(For Front Shock Absorber Bracket Lower) |
90105-14087 |
US $6.40 |
||
|
9011908588
|
9011908588
90119-08588 New Genuine Part |
90119-08588 |
US $2.24 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.86 |
||
|
9017910174
|
9017910174
90179-10174 Nut(For Front Pneumatic Cylinder) |
90179-10174 |
US $1.44 |
||
|
9017912051
|
9017912051
90179-12051 Nut(For Front Stabilizer Link) |
90179-12051 |
US $1.92 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.50 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
||
