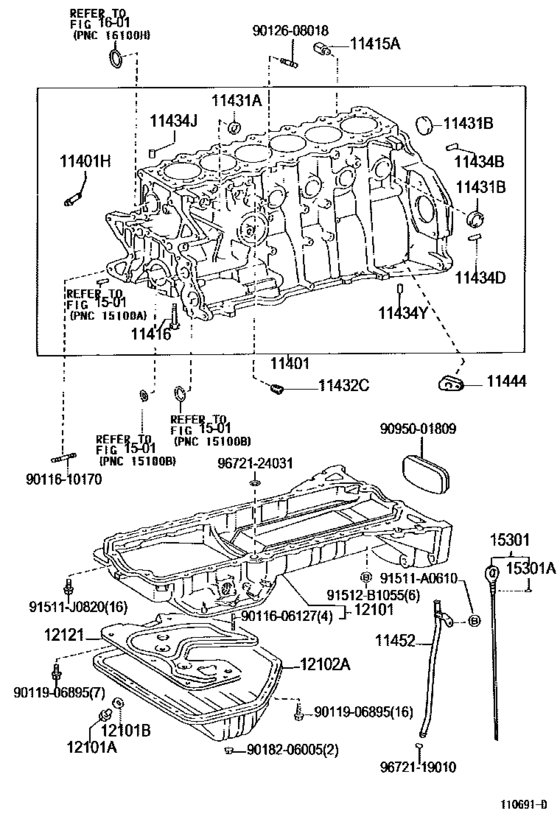

Cylinder Block ([08.1997 - ] (9708- )2JZGE) Diagram Toyota ARISTO
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- JZS160
- ENGINE
- 2JZ-GE
- TRANSMISSION
- ATM
- From
- 07.2000
- To
- 01.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-49667 Block Sub-Assy, Cylinder[08.1997 - 03.2001] 2JZGE..JZS160 |
11401-49667 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-49775 Block Sub-Assy, Cylinder[08.1997 - 03.2001] 2JZGE..JZS160 |
11401-49775 |
US $3,290.56 |
||
|
11401
|
11401
11401-49668 Block Sub-Assy, Cylinder[03.2001 -] 2JZGE..JZS160 |
11401-49668 |
US $3,276 |
||
| replacement | |||||
|
11401
|
11401
11401-49775 Block Sub-Assy, Cylinder[03.2001 -] 2JZGE..JZS160 |
11401-49775 |
US $3,290.56 |
||
|
11401H
|
11401H
90406-08003 Union(For Cylinder Block Llc Drain)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90406-08003 |
US $3.93 |
||
|
11415A
|
11415A
90910-09102 Plug, Water Drain Cock(For Cylinder Block)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90910-09102 |
US $8.21 |
||
|
11416
|
11416
90910-02104 Bolt(For Crankshaft Bearing Cap Set)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90910-02104 |
US $5.56 |
||
|
11431A
|
11431A
96411-42500 Plug, Tight, No.1[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
96411-42500 |
from US $2.95 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
96411-43500 |
from US $3.59 |
||
|
11432C
|
11432C
90344-53015 Plug, W/head Taper Screw, No.1[08.1997 - 01.2005] 2JZGE..JZS160..5FC |
90344-53015 |
US $5.38 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.99 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC 長さ＝１４，外径＝６ |
90250-06003 |
US $1.61 |
||
|
11434J
|
11434J
90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90253-14003 |
from US $1.31 |
||
|
11434Y
|
11434Y
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90250-10192 |
from US $0.99 |
||
|
11444
|
11444
11444-46010 Plug, Hole[06.2000 - 01.2005] 2JZGE..JZS160..5FC |
11444-46010 |
US $5.24 |
||
|
11452
|
11452
11452-46010
Guide, Oil Level Gage
[08.1997 - 01.2005] 2JZGE..JZS160..5FC |
11452-46010 |
— | ||
|
12101
|
12101
12111-46062 Pan Sub-Assy, Oil[06.1999 - 01.2005] 2JZGE..JZS160..5FC |
12111-46062 |
US $767.31 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
90430-12031 |
from US $0.84 |
||
|
12102A
|
12102A
12102-46040 Pan Sub-Assy, Oil, No.2[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
12102-46040 |
from US $152.55 |
||
|
12121
|
12121
12121-46010 Plate, Oil Pan Baffle, No.1[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
12121-46010 |
US $68.04 |
||
|
15301
|
15301
15301-46023 Gage Sub-Assy, Oil Level[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
15301-46023 |
from US $12.93 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[08.1997 - 01.2005] 2JZGTE..JZS161;2JZGE..JZS160..5FC |
96741-19005 |
from US $2.42 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
91512B1055
|
91512B1055
91512-B1055 BOLT FLANGE |
91512-B1055 |
from US $3.62 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.94 |
||
|
9011610170
|
9011610170
90116-10170 BOLT STUD |
90116-10170 |
US $7.35 |
||
|
9011906895
|
9011906895
90119-06895
BOLT WWASHER
|
90119-06895 |
— | ||
| replacement | |||||
|
9011906895
|
9011906895
90119-06755 BOLT WWASHER |
90119-06755 |
US $1.25 |
||
|
9012608018
|
9012608018
90126-08018 Bolt, Stud(For Egr Valve) |
90126-08018 |
US $7.16 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9095001809
|
9095001809
90950-01809 Plug, Semi Circular(For Chain Cover No.2) |
90950-01809 |
from US $9.32 |
||
|
9672119010
|
9672119010
96721-19010 Ring, O(For Oil Level Gage Guide) |
96721-19010 |
from US $1.60 |
||
|
9672124031
|
9672124031
96721-24031 Ring, O |
96721-24031 |
from US $2.24 |
||
| replacement | |||||
|
9672124031
|
9672124031
90301-A0032 Ring, O(For Oil Strainer) |
90301-A0032 |
US $7.32 |
||
