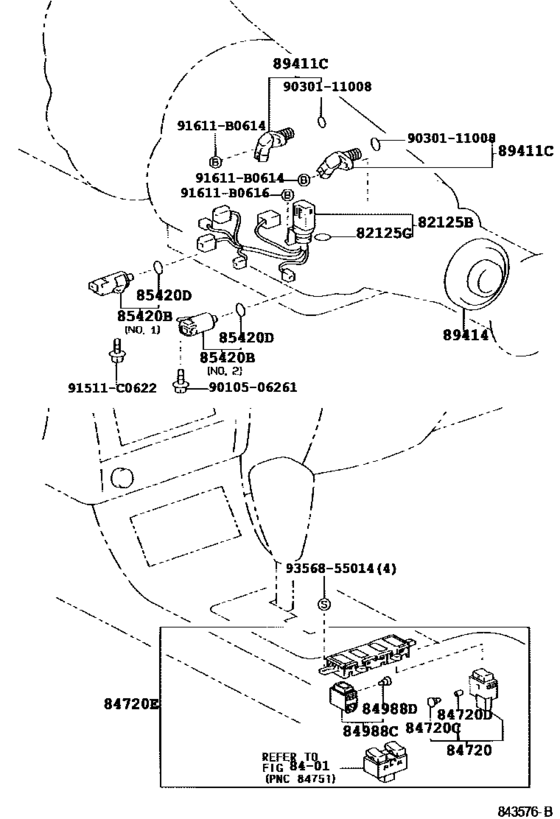

Overdrive & Electronic Controlled Transmission ([07.2000 - ] (0007- )JZS160) Diagram Toyota ARISTO
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- JZS160
- ENGINE
- 2JZ-GE
- TRANSMISSION
- ATM
- From
- 07.2000
- To
- 01.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125B
|
82125B
82125-30460 Wire, Transmission[07.2000 - 01.2005] JZS160 |
82125-30460 |
US $51.58 |
||
|
82125G
|
82125G
96721-24018 Ring, O[08.1997 -] JZS16# |
96721-24018 |
from US $3.78 |
||
|
84720
|
84720
84720-30330 Switch Assy, Pattern Select[08.1997 -] JZS16# |
84720-30330 |
US $59.40 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[08.1997 -] JZS16# １４Ｖ ０．５６Ｗ |
84999-10710 |
from US $6.16 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[08.1997 -] JZS16# |
84998-10670 |
US $4.12 |
||
|
84720E
|
84720E
84720-30230 Switch Assy, Pattern Select[08.1997 -] JZS16# ｱﾘ(ｼ-ﾄﾋ-ﾀ) |
84720-30230 |
US $100.46 |
||
|
84720E
|
84720E
84720-30240 Switch Assy, Pattern Select[08.1997 -] JZS16# |
84720-30240 |
US $80.08 |
||
|
84988C
|
84988C
84988-30070 Switch, Traction Control[08.1997 -] JZS16# |
84988-30070 |
US $57.51 |
||
|
84988D
|
84988D
90010-01039 Blub, Center Cluster Module Switch[11.1999 -] JZS16# |
90010-01039 |
from US $3.16 |
||
|
85420B
|
85420B
35250-50010 Solenoid Assy, Transmission, No.3[08.2001 - 01.2005] JZS160 ＮＯ．１，ＤＥＮＳＯ |
35250-50010 |
US $211.41 |
||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[08.2001 - 01.2005] JZS160 ＮＯ．２，ＤＥＮＳＯ |
35250-50030 |
from US $214.40 |
||
|
85420B
|
85420B
85420-30240 Valve, Solenoid(S2)[07.2000 - 08.2001] JZS160 ＮＯ．１，ＤＥＮＳＯ |
85420-30240 |
US $196.56 |
||
| replacement | |||||
|
85420B
|
85420B
35250-50010 Solenoid Assy, Transmission, No.3[07.2000 - 08.2001] JZS160 ＮＯ．１，ＤＥＮＳＯ |
35250-50010 |
US $211.41 |
||
|
85420B
|
85420B
85420-30260
Valve, Solenoid(S4)
[07.2000 - 08.2001] JZS160 ＮＯ．２，ＤＥＮＳＯ |
85420-30260 |
— | ||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[07.2000 - 08.2001] JZS160 ＮＯ．２，ＤＥＮＳＯ |
35250-50030 |
from US $214.40 |
||
|
85420B
|
85420B
85420-30270
Valve, Solenoid(S4)
[07.2000 - 08.2001] JZS160 ＮＯ．２，ＡＩＳＩＮ |
85420-30270 |
— | ||
| replacement | |||||
|
85420B
|
85420B
35250-50030 Valve, Solenoid(S4)[07.2000 - 08.2001] JZS160 ＮＯ．２，ＡＩＳＩＮ |
35250-50030 |
from US $214.40 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[08.1997 - 01.2005] JZS160..5FC |
90301-06004 |
from US $2.15 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[08.1997 - 01.2005] JZS16# |
89411-50010 |
from US $74.26 |
||
|
89414
|
89414
89414-30080 Rotor, Sensor[07.2000 - 01.2005] JZS160 |
89414-30080 |
US $20.27 |
||
|
91511C0622
|
91511C0622
91511-C0622 Strainer Bolt |
91511-C0622 |
US $1.08 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9010506261
|
9010506261
90105-06261 Bolt(For Manual Detent Spring) |
90105-06261 |
US $0.73 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.90 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
