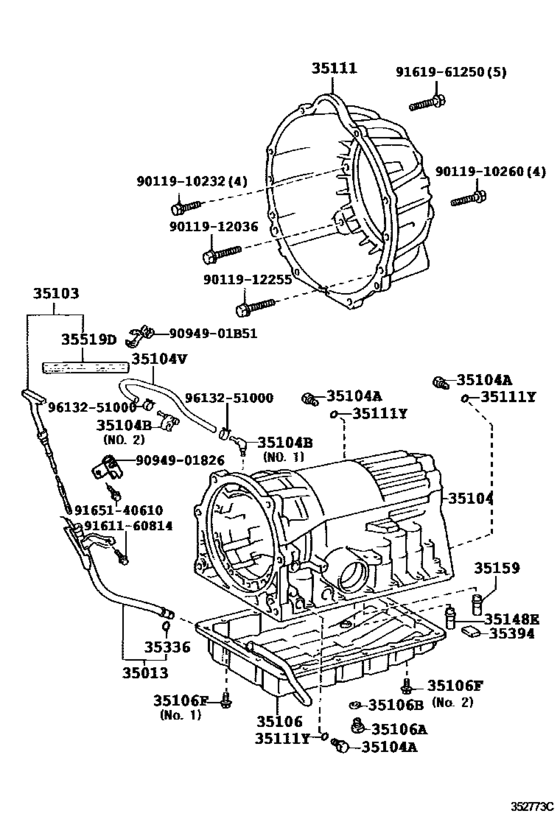

Transmission Case & Oil Pan (Atm) ([07.2000 - ] A650E (0007- )JZS160) Diagram Toyota ARISTO
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- JZS160
- ENGINE
- 2JZ-GE
- TRANSMISSION
- ATM
- From
- 07.2000
- To
- 01.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-30500 Tube Sub-Assy, Transmission Oil Filler[07.2000 -] JZS160 |
35013-30500 |
US $44.12 |
||
|
35103
|
35103
35103-30770 Gage Sub-Assy, Transmission Oil Level[07.2000 -] JZS160 |
35103-30770 |
US $15.58 |
||
|
35104
|
35104
35104-30200 Case Sub-Assy, Automatic Transmission[07.2000 - 01.2005] JZS160 |
35104-30200 |
US $963.87 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[07.2000 - 01.2005] JZS160 |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03098 Plug, Breather, No.1 (Atm)[08.1997 -] JZS16# ＮＯ．１ |
90930-03098 |
from US $7.20 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[08.1997 - 12.2000] JZS16# ＮＯ．２ |
90930-03149 |
from US $3.94 |
||
|
35104B
|
35104B
90930-03168 Plug, Breather, No.1 (Atm)[12.2000 -] JZS16# ＮＯ．２ |
90930-03168 |
US $6.45 |
||
|
35104V
|
35104V
90447-11036 Hose (For Breather Plug)[08.1997 -] JZS160 |
90447-11036 |
US $20.53 |
||
|
35106
|
35106
35106-30210 Pan Sub-Assy, Automatic Transmission Oil[07.2000 - 01.2005] JZS160 |
35106-30210 |
from US $83.54 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1997 - 01.2005] JZS161;JZS160..5FC |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[04.2003 -] JZS16# |
35178-30010 |
from US $1.77 |
||
|
35106B
|
35106B
35178-50010
Gasket, Drain Plug (Atm)
[08.1997 - 04.2003] JZS16# |
35178-50010 |
— | ||
| replacement | |||||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[08.1997 - 04.2003] JZS16# |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06513 Bolt (For Automatic Transmission Oil Pan)[07.2000 - 01.2005] JZS160 ＮＯ．１ |
90119-06513 |
US $1.61 |
||
|
35106F
|
35106F
90119-06866 Bolt (For Automatic Transmission Oil Pan)[07.2000 - 01.2005] JZS160 ＮＯ．２ |
90119-06866 |
US $1.97 |
||
|
35111
|
35111
35111-30150 Housing, Automatic Transmission[08.1997 -] JZS160 |
35111-30150 |
US $428.06 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[07.2000 - 01.2005] JZS160 |
90301-06196 |
from US $2.24 |
||
|
35148E
|
35148E
35148-30010 Gasket, Brake Drum, No.2[07.2000 - 01.2005] JZS160 |
35148-30010 |
US $15.72 |
||
|
35159
|
35159
35159-30020 Gasket, Brake Drum[07.2000 - 01.2005] JZS160 |
35159-30020 |
US $13.54 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1997 -] JZS16# |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1997 -] JZS160 |
35394-30011 |
from US $5.62 |
||
|
35519D
|
35519D
35519-20030 Label, Automatic Transmission Information[08.1999 -] JZS16# |
35519-20030 |
US $4.08 |
||
|
9094901B51
|
9094901B51
90949-01B51 Clamp(For Flexible Hose Clamp) |
90949-01B51 |
US $1.31 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910260
|
9011910260
90119-10260 Bolt (For Transmission Housing & Engine Setting) |
90119-10260 |
from US $2.11 |
||
|
9011912036
|
9011912036
90119-12036 Bolt (For Transmission Housing & Case Setting) |
90119-12036 |
US $1.89 |
||
|
9011912255
|
9011912255
90119-12255 Bolt (For Transmission Housing & Case Setting) |
90119-12255 |
US $2.04 |
||
|
9094901826
|
9094901826
90949-01826 New Genuine Part |
90949-01826 |
US $1.75 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.95 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
