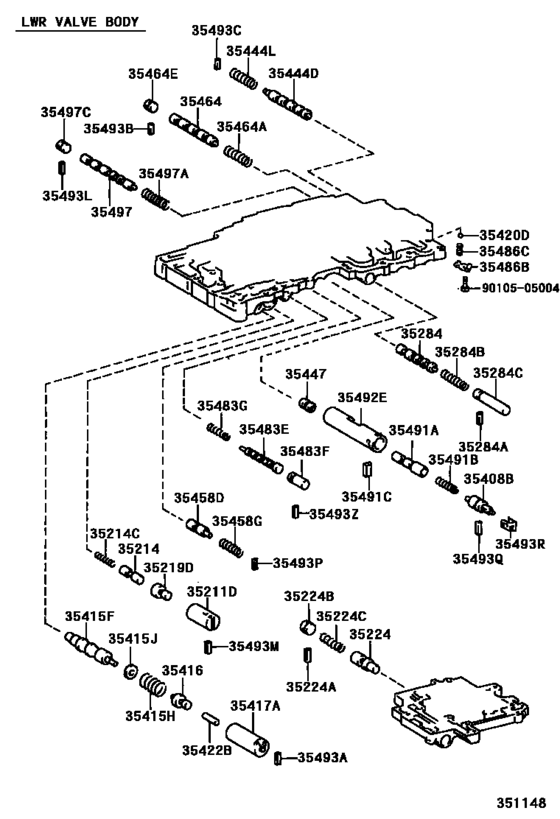

Valve Body & Oil Strainer (Atm) ([07.2000 - ] A650E (0007- )JZS160) Diagram Toyota ARISTO
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- JZS160
- ENGINE
- 2JZ-GE
- TRANSMISSION
- ATM
- From
- 07.2000
- To
- 01.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35211D
|
35211D
35211-50010 Sleeve, Lock Up Control Valve[08.1997 -] JZS16# |
35211-50010 |
US $6.12 |
||
|
35214
|
35214
35214-50010 Valve, Lock Up Control[08.1997 -] JZS16# |
35214-50010 |
US $11.88 |
||
|
35214C
|
35214C
90501-07111 Spring, Compression (For Lock Up Control Valve)[08.1997 -] JZS16# |
90501-07111 |
US $0.61 |
||
|
35219D
|
35219D
35219-50010 Plunger, Lock Up Control Valve[08.1997 -] JZS16# |
35219-50010 |
US $9.17 |
||
|
35224
|
35224
35224-30010
Valve, Reverse Control
[07.2000 - 01.2005] JZS160 |
35224-30010 |
— | ||
|
35224A
|
35224A
35493-30040 Seat(For Low-High Shift Timing Valve Plug)[07.2000 - 01.2005] JZS160 |
35493-30040 |
US $2.04 |
||
|
35224B
|
35224B
90339-05020 Plug (For Reverse Control Valve)[08.1997 -] JZS16# |
90339-05020 |
US $1.46 |
||
|
35224C
|
35224C
90501-06065 Spring, Compression (For Reverse Control Valve)[07.2000 - 01.2005] JZS160 |
90501-06065 |
US $1.75 |
||
|
35284
|
35284
35284-30010 Valve, Solenoid Relay[07.2000 - 01.2005] JZS160 |
35284-30010 |
US $12.67 |
||
|
35284A
|
35284A
35493-30110 Seat (For Transfer Solenoid Modulator Valve Plug)[07.2000 - 01.2005] JZS160 |
35493-30110 |
US $2.33 |
||
|
35284B
|
35284B
90501-07120 Spring, Compression (For Solenoid Relay Valve)[07.2000 - 01.2005] JZS160 |
90501-07120 |
US $4.22 |
||
|
35284C
|
35284C
90339-05030 Plug (For Solenoid Relay Valve)[07.2000 - 01.2005] JZS160 |
90339-05030 |
US $3.06 |
||
|
35408B
|
35408B
35408-50010 Plug Sub-Assy, Accumulator Control Valve[08.1997 -] JZS16# |
35408-50010 |
US $15.43 |
||
|
35415F
|
35415F
35415-30060
Valve, Primary Regulator
[07.2000 - 01.2005] JZS160 |
35415-30060 |
— | ||
|
35415H
|
35415H
90501-15022 Spring, Compression (For Primary Regulator Valve)[07.2000 - 01.2005] JZS160 |
90501-15022 |
US $2.18 |
||
|
35415J
|
35415J
90560-08099 Washer (For Primary Regulator Valve)[07.2000 - 01.2005] JZS160 |
90560-08099 |
US $0.87 |
||
|
35416
|
35416
35416-30060 Plunger, Primary Regulator Valve, No.1[07.2000 - 01.2005] JZS160 |
35416-30060 |
US $13.69 |
||
|
35417A
|
35417A
35417-30080 Sleeve, Primary Regulator Valve[07.2000 - 01.2005] JZS160 |
35417-30080 |
US $18.93 |
||
|
35420D
|
35420D
90360-08003 Ball (For Lower Valve Body)[07.2000 - 01.2005] JZS160 外径＝８．００，スチール |
90360-08003 |
US $2.04 |
||
|
35422B
|
35422B
35422-30020
Plunger, Primary Regulator Valve, No.2
[07.2000 - 01.2005] JZS160 |
35422-30020 |
— | ||
|
35444D
|
35444D
35444-30030
Valve, Release Control
[07.2000 - 01.2005] JZS160 |
35444-30030 |
— | ||
|
35444L
|
35444L
90501-08135 Spring, Compression (For Shift Valve Plug Seat)[07.2000 - 01.2005] JZS160 |
90501-08135 |
US $2.04 |
||
|
35447
|
35447
35447-14010 Plunger, Accumulator Control Valve[08.1997 - 01.2005] JZS161;JZS160..5FC |
35447-14010 |
US $6.99 |
||
|
35458D
|
35458D
35458-50010
Valve, Cut Back
[08.1997 -] JZS16# |
35458-50010 |
— | ||
|
35458G
|
35458G
90501-07099 Spring, Compression (For Cut Back Valve)[07.2000 - 01.2005] JZS160 |
90501-07099 |
US $0.73 |
||
|
35464
|
35464
35464-30050 Valve, 1-2 Shift[07.2000 - 01.2005] JZS160 |
35464-30050 |
US $13.69 |
||
|
35464A
|
35464A
90501-07122 Spring, Compression (For Shift Valve Plug Seat)[07.2000 - 01.2005] JZS160 |
90501-07122 |
US $4.80 |
||
|
35464E
|
35464E
90339-05019 Plug[07.2000 - 01.2005] JZS160 |
90339-05019 |
US $2.18 |
||
|
35483E
|
35483E
35483-30020
Valve, C-0 Control Relay
[07.2000 - 01.2005] JZS160 |
35483-30020 |
— | ||
|
35483F
|
35483F
90339-05031 Plug (For C-0 Control Relay Valve)[07.2000 - 01.2005] JZS160 |
90339-05031 |
US $3.06 |
||
|
35483G
|
35483G
90501-06062 Spring, Compression (For Cut Off Valve)[07.2000 - 01.2005] JZS160 |
90501-06062 |
US $1.31 |
||
|
35486B
|
35486B
35486-30030
Seat, Pressure Relief Valve Spring
[07.2000 - 01.2005] JZS160 |
35486-30030 |
— | ||
|
35486C
|
35486C
90501-12142 Spring (For Lower Valve Body)[07.2000 - 01.2005] JZS160 |
90501-12142 |
US $0.87 |
||
|
35491A
|
35491A
35491-30030
Valve, Accumulator Control, No.1
[07.2000 - 01.2005] JZS160 |
35491-30030 |
— | ||
|
35491B
|
35491B
90501-13048 Spring, Compression (For Accumulator Control Valve No.1)[07.2000 - 01.2005] JZS160 |
90501-13048 |
US $1.75 |
||
|
35491C
|
35491C
90282-03015 Key, Straight (For Throttle Valve Plug)[08.1997 -] JZS16# |
90282-03015 |
US $1.02 |
||
|
35492E
|
35492E
35492-14010 Sleeve, Accumulator Control Valve[08.1997 - 01.2005] JZS161;JZS160..5FC |
35492-14010 |
US $35.09 |
||
|
35493A
|
35493A
35493-50010 Seat, Primary Regulator Valve Plug[08.1997 -] JZS16# |
35493-50010 |
US $2.18 |
||
|
35493B
|
35493B
35493-30110 Seat (For Transfer Solenoid Modulator Valve Plug)[07.2000 - 01.2005] JZS160 |
35493-30110 |
US $2.33 |
||
|
35493C
|
35493C
35493-30130 Key, Straight[07.2000 - 01.2005] JZS160 |
35493-30130 |
US $3.20 |
||
|
35493L
|
35493L
35493-30110 Seat (For Transfer Solenoid Modulator Valve Plug)[07.2000 - 01.2005] JZS160 |
35493-30110 |
US $2.33 |
||
|
35493M
|
35493M
35493-50050 Seat, Throttle Valve Spring[07.2000 - 01.2005] JZS160 |
35493-50050 |
US $1.60 |
||
|
35493P
|
35493P
35493-30130 Key, Straight[07.2000 - 01.2005] JZS160 |
35493-30130 |
US $3.20 |
||
|
35493Q
|
35493Q
35493-50020 Seat, Accumulator Control Valve Plug, No.1[08.1997 -] JZS16# |
35493-50020 |
US $2.18 |
||
|
35493R
|
35493R
35493-50030 Seat, Accumulator Control Valve Plug, No.1[08.1997 -] JZS16# |
35493-50030 |
US $2.18 |
||
|
35493Z
|
35493Z
35493-30040 Seat(For Low-High Shift Timing Valve Plug)[07.2000 - 01.2005] JZS160 |
35493-30040 |
US $2.04 |
||
|
35497
|
35497
35497-30060
Valve, 3-4 Shift
[07.2000 - 01.2005] JZS160 |
35497-30060 |
— | ||
|
35497A
|
35497A
90501-08135 Spring, Compression (For Shift Valve Plug Seat)[07.2000 - 01.2005] JZS160 |
90501-08135 |
US $2.04 |
||
|
35497C
|
35497C
90339-05019 Plug[07.2000 - 01.2005] JZS160 |
90339-05019 |
US $2.18 |
||
|
9010505004
|
9010505004
90105-05004 New Genuine Part |
90105-05004 |
US $1.02 |
