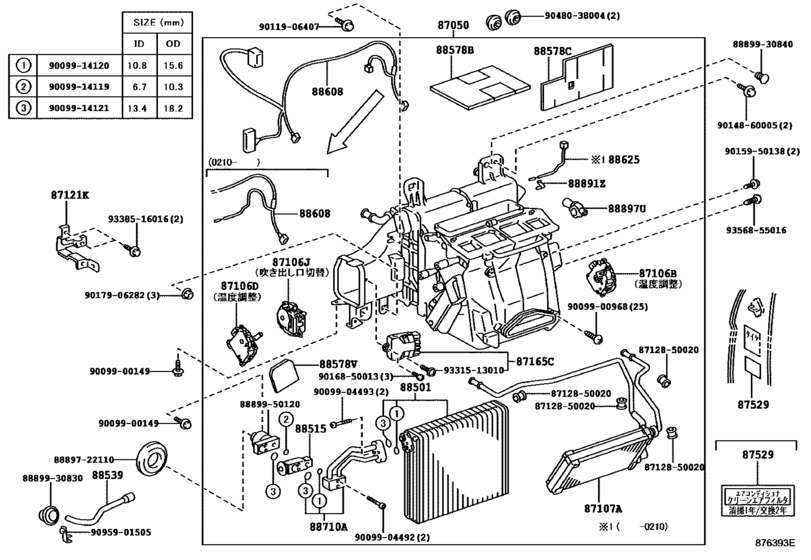

Heating & Air Conditioning - Cooler Unit ([08.2002 - ] (0208- )) Diagram Toyota ARISTO
- Year
- 1997 - 2005
- Sales region
- Japan
- Frame
- JZS161
- ENGINE
- 2JZ-GTE
- TRANSMISSION
- ATM
- From
- 08.1997
- To
- 01.2005
- Gear Shift Type
- 4FC
- Vehicle Model
- Aristo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-30030 Radiator Assy, Air Conditioner[08.1997 -] JZS161 |
87050-30030 |
US $1,820 |
||
|
87106B
|
87106B
87106-30340
Servo Sub-Assy, Damper(For Cooling Unit)
[08.1997 - 08.2003] JZS16# |
87106-30340 |
— | ||
| replacement | |||||
|
87106B
|
87106B
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[08.1997 - 08.2003] JZS16# |
87106-30341 |
from US $155.50 |
||
|
87106B
|
87106B
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[08.2003 -] JZS16# |
87106-30341 |
from US $155.50 |
||
|
87106D
|
87106D
87106-30350
Servo Sub-Assy, Damper, No.1
[08.1997 - 08.2003] JZS16# |
87106-30350 |
— | ||
| replacement | |||||
|
87106D
|
87106D
87106-30351 Servo Sub-Assy, Damper, No.1[08.1997 - 08.2003] JZS16# |
87106-30351 |
US $129.29 |
||
|
87106D
|
87106D
87106-30351 Servo Sub-Assy, Damper, No.1[08.2003 -] JZS16# |
87106-30351 |
US $129.29 |
||
|
87106J
|
87106J
87106-30360
Servo Sub-Assy, Damper(For Mode)
[08.1997 - 09.1997] JZS16# タイプ Ａ |
87106-30360 |
— | ||
|
87106J
|
87106J
87106-30361 Servo Sub-Assy, Damper(For Mode)[09.1997 - 01.2005] JZS16# タイプ Ｂ |
87106-30361 |
US $157.25 |
||
|
87107A
|
87107A
87107-30500
Unit Sub-Assy, Heater Radiator
[08.1997 - 03.1999] JZS16# |
87107-30500 |
— | ||
| replacements | |||||
|
87107A
|
87107A
87107-30510
Unit Sub-Assy, Heater Radiator
[08.1997 - 03.1999] JZS16# |
87107-30510 |
— | ||
|
87107A
|
87107A
87107-30520
Unit Sub-Assy, Heater Radiator
[08.1997 - 03.1999] JZS16# |
87107-30520 |
— | ||
|
87107A
|
87107A
87107-30530
Unit Sub-Assy, Heater Radiator
[08.1997 - 03.1999] JZS16# |
87107-30530 |
— | ||
|
87107A
|
87107A
87107-51010
Unit Sub-Assy, Heater Radiator
[08.1997 - 03.1999] JZS16# |
87107-51010 |
— | ||
|
87107A
|
87107A
87107-30520
Unit Sub-Assy, Heater Radiator
[03.1999 -] JZS161 |
87107-30520 |
— | ||
|
87121K
|
87121K
87121-53020
Bracket, Heater
[08.2002 -] JZS16# |
87121-53020 |
— | ||
|
87165C
|
87165C
87165-22040
Control, Blower Motor
[08.1997 - 03.2001] JZS16# |
87165-22040 |
— | ||
| replacement | |||||
|
87165C
|
87165C
87165-22050 Control, Blower Motor[08.1997 - 03.2001] JZS16# |
87165-22050 |
US $136.28 |
||
|
87165C
|
87165C
87165-22050 Control, Blower Motor[03.2001 - 01.2005] JZS16# |
87165-22050 |
US $136.28 |
||
|
87529
|
87529
87529-50020 Plate, Air Filter Caution[08.1997 -] JZS16# |
87529-50020 |
US $5.38 |
||
|
88501
|
88501
88501-3A020
Evaporator Sub-Assy, Cooler, No.1
[08.1997 - 03.2000] JZS16# |
88501-3A020 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-3A050
Evaporator Sub-Assy, Cooler, No.1
[08.1997 - 03.2000] JZS16# |
88501-3A050 |
— | ||
|
88501
|
88501
88501-3A050
Evaporator Sub-Assy, Cooler, No.1
[03.2000 - 01.2005] JZS16# |
88501-3A050 |
— | ||
|
88515
|
88515
88515-22260 Valve, Cooler Expansion[12.2003 - 01.2005] JZS16# |
88515-22260 |
US $163.20 |
||
|
88515
|
88515
88515-30690 Valve, Cooler Expansion[08.1997 - 11.2003] JZS16# |
88515-30690 |
US $139.78 |
||
| replacement | |||||
|
88515
|
88515
88515-22260 Valve, Cooler Expansion[08.1997 - 11.2003] JZS16# |
88515-22260 |
US $163.20 |
||
|
88539
|
88539
88539-30810
Hose, Cooler Unit Drain, No.1
[08.1997 -] JZS16# |
88539-30810 |
— | ||
|
88578B
|
88578B
88578-30760
Packing, Cooling Unit, No.1
[08.1997 -] JZS16# |
88578-30760 |
— | ||
|
88578C
|
88578C
88578-30770
Packing, Cooling Unit, No.2
[08.1997 -] JZS16# |
88578-30770 |
— | ||
|
88578V
|
88578V
88578-30790
Packing, Cooling Unit, No.3
[08.1997 -] JZS16# |
88578-30790 |
— | ||
|
88608
|
88608
88608-3A020
Harness Sub-Assy, Wiring Air Conditioner
[08.1997 - 11.1997] JZS16# タイプ Ａ |
88608-3A020 |
— | ||
|
88608
|
88608
88608-3A021
Harness Sub-Assy, Wiring Air Conditioner
[11.1997 - 10.2002] JZS16# タイプ Ｂ |
88608-3A021 |
— | ||
|
88608
|
88608
88608-3A022
Harness Sub-Assy, Wiring Air Conditioner
[10.2002 - 01.2005] JZS16# |
88608-3A022 |
— | ||
|
88625
|
88625
88625-3A120 Thermistor, Cooler, No.1[08.1997 - 10.2002] JZS16# |
88625-3A120 |
US $11.01 |
||
|
88710A
|
88710A
88710-3A140 Tube Assy, Air Conditioner[08.1997 -] JZS16# |
88710-3A140 |
US $94.64 |
||
|
88891Z
|
88891Z
88891-20240
Cover, Cooler, No.1
[08.1997 -] JZS16# |
88891-20240 |
— | ||
|
88897U
|
88897U
88897-22100
Aspirator
[08.2002 -] JZS16# |
88897-22100 |
— | ||
|
8712850020
|
8712850020
87128-50020
Grommet, Heater
|
87128-50020 |
— | ||
|
8889722110
|
8889722110
88897-22110
Grommet, (For Cooler Pipe)
|
88897-22110 |
— | ||
|
8889930830
|
8889930830
88899-30830
Cover, Evaporator
|
88899-30830 |
— | ||
|
8889930840
|
8889930840
88899-30840
Plate, Cover
|
88899-30840 |
— | ||
|
8889950120
|
8889950120
88899-50120
Cover, Evaporator
|
88899-50120 |
— | ||
|
9009900149
|
9009900149
90099-00149
New Genuine Part
|
90099-00149 |
— | ||
|
9009900968
|
9009900968
90099-00968
Screw(For Air Conditioner Unit)
|
90099-00968 |
— | ||
|
9009904492
|
9009904492
90099-04492 BOLT |
90099-04492 |
US $2.06 |
||
|
9009904493
|
9009904493
90099-04493 New Genuine Part |
90099-04493 |
US $2.89 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH
O RING
|
90099-14119-TH |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
US $3.14 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
US $3.32 |
||
|
9011906407
|
9011906407
90119-06407 New Genuine Part |
90119-06407 |
US $2.15 |
||
|
9014860005
|
9014860005
90148-60005 New Genuine Part |
90148-60005 |
US $1.46 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048038004
|
9048038004
90480-38004
New Genuine Part
|
90480-38004 |
— | ||
|
9095901505
|
9095901505
90959-01505 New Genuine Part |
90959-01505 |
US $5.53 |
||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.61 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
US $1.25 |
||
