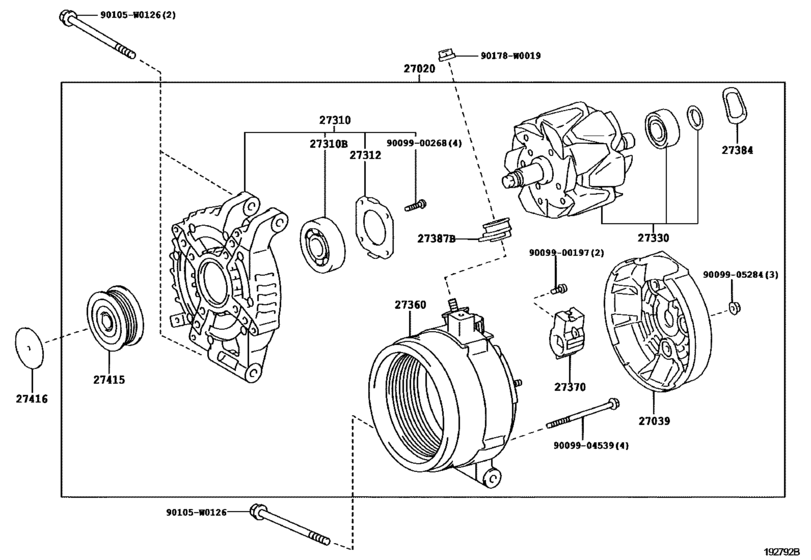

Alternator ([06.2007 - ] 12V 100A (0706- )1ADFTV) Diagram Toyota AURIS/ COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ADE150
- grade
- RS
- ENGINE
- 1ADFTV
- Model
- AURIS/ AURIS Hybrid
- From
- 06.2007
- To
- 01.2010
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0G011
Alternator Assy
[03.2009 - 01.2010] 1ADFTV..ADE150 12V 100A |
27060-0G011 |
— | ||
|
27020
|
27020
27060-0R011
Alternator Assy
[06.2007 - 03.2009] 1ADFTV..ADE150 12V 100A |
27060-0R011 |
— | ||
|
27039
|
27039
27039-26170
Cover, Alternator Rear End
[06.2007 - 07.2007] 1ADFTV..ADE150 |
27039-26170 |
— | ||
|
27039
|
27039
27039-27090
Cover, Alternator Rear End
[07.2007 - 03.2009] 1ADFTV..ADE150 |
27039-27090 |
— | ||
|
27310
|
27310
27310-27090
Frame Assy, Drive End, Alternator
[06.2007 - 03.2009] 1ADFTV..ADE150 |
27310-27090 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[06.2007 - 03.2009] 1ADFTV..ADE150 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[06.2007 - 03.2009] 1ADFTV..ADE150 |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[06.2007 - 03.2009] 1ADFTV..ADE150 |
27330-30070 |
— | ||
|
27360
|
27360
27360-26160
Coil Assy, Alternator
[06.2007 - 03.2009] 1ADFTV..ADE150 |
27360-26160 |
— | ||
|
27360
|
27360
27360-27090
Coil Assy, Alternator
[03.2009 - 01.2010] 1ADFTV..ADE150 |
27360-27090 |
— | ||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[06.2007 - 03.2009] 1ADFTV..ADE150 |
27370-58460 |
from US $16.25 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[06.2007 - 03.2009] 1ADFTV..ADE150 |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[06.2007 - 03.2009] 1ADFTV..ADE150 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-26010 Pulley, Alternator W/clutchALTERNATOR W/CLUTCH [06.2007 - 03.2009] 1ADFTV..ADE150 |
27415-26010 |
from US $66.11 |
||
|
27416
|
27416
27416-27010 Cap, Alternator Pulley[06.2007 - 03.2009] 1ADFTV..ADE150 |
27416-27010 |
US $4.80 |
||
|
90105W0126
|
90105W0126
90105-W0126
New Genuine Part
|
90105-W0126 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
