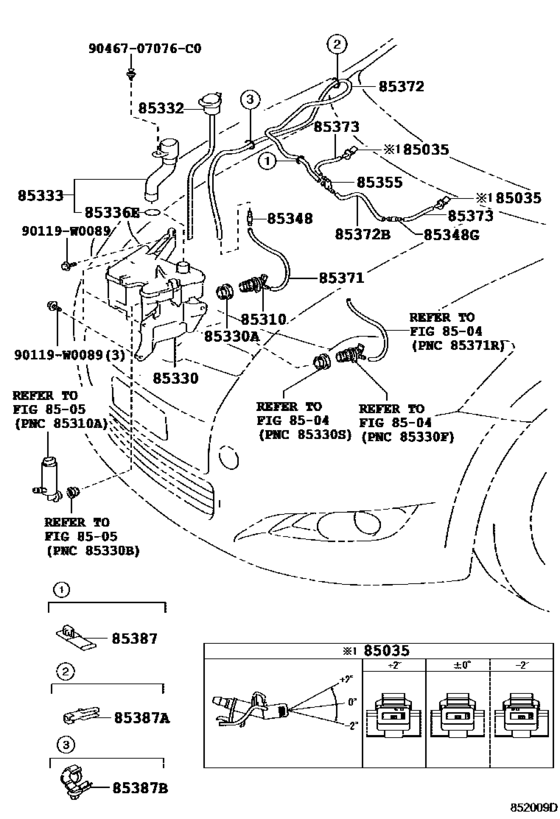

Windshield Washer ([06.2007 - 01.2010] W(HEADLAMP CLEANER) (0706-1001)ZRE152..RX ; (0706-1001)ADE150,ZRE151 ..RS,RX) Diagram Toyota AURIS/ COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ADE150
- grade
- RS
- ENGINE
- 1ADFTV
- Model
- AURIS/ AURIS Hybrid
- From
- 06.2007
- To
- 01.2010
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-12330 Nozzle Sub-Assy, Washer[06.2007 - 03.2009] ADE150 ANGLE 0 |
85381-12330 |
from US $7.51 |
||
|
85035
|
85035
85381-12340
Nozzle Sub-Assy, Washer
[06.2007 - 03.2009] ADE150 ANGLE -2 |
85381-12340 |
— | ||
|
85035
|
85035
85381-12350 Nozzle Sub-Assy, Washer[06.2007 - 03.2009] ADE150 ANGLE +2 |
85381-12350 |
from US $7.51 |
||
|
85035
|
85035
85381-30110 Nozzle Sub-Assy, Washer[09.2009 - 01.2010] ZRE151..RS,RT;ADE150,NRE150,ZRE152 ANGLE -2 |
85381-30110 |
US $14.06 |
||
|
85035
|
85035
85381-30150 Nozzle Sub-Assy, Washer[09.2009 - 01.2010] ZRE151..RS,RT;ADE150,NRE150,ZRE152 ANGLE 0 |
85381-30150 |
US $7.37 |
||
|
85310
|
85310
85330-02030 Motor And Pump Assy, Windshield WasherWINDSHIELD WASHER [06.2007 - 03.2009] ADE150 |
85330-02030 |
from US $102 |
||
|
85330
|
85330
85315-02230
Jar Assy, Windshield Washer
[06.2007 - 03.2009] ADE150 |
85315-02230 |
— | ||
|
85330A
|
85330A
90069-20005 Bush, Windshield Washer Jar[06.2007 - 03.2009] ADE150 |
90069-20005 |
from US $0.96 |
||
|
85332
|
85332
85356-02060 Cap, Windshield Washer JarWINDSHIELD WASHER JAR [06.2007 - 03.2009] ADE150 |
85356-02060 |
US $9.12 |
||
|
85333
|
85333
85359-02060
Filter, Windshield Washer Jar
[06.2007 - 03.2009] ADE150 |
85359-02060 |
— | ||
|
85336E
|
85336E
90069-38005 Packing, Windshield Washer Inlet HoseWINDSHIELD WASHER INLET HOSE [06.2007 - 03.2009] ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
90069-38005 |
US $1.49 |
||
|
85348
|
85348
85375-05050 Joint, Windshield Washer Hose, No.1[06.2007 - 03.2009] ADE150 |
85375-05050 |
US $2.80 |
||
|
85348G
|
85348G
85375-05050 Joint, Windshield Washer Hose, No.1[06.2007 - 03.2009] ADE150 |
85375-05050 |
US $2.80 |
||
|
85355
|
85355
85376-02240
Valve, Windshield Washer Hose
[06.2007 - 03.2009] ADE150 |
85376-02240 |
— | ||
|
85371
|
85371
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2[06.2007 - 03.2009] ADE150; ADE150..RX HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH |
90069-16009 |
US $4.40 |
||
|
85372
|
85372
90069-16010 Hose, Windshield Washer (From Joint To Joint), No.1[06.2007 - 03.2009] ADE150 |
90069-16010 |
US $14.36 |
||
|
85372B
|
85372B
90069-16009 Hose, Windshield Washer (From Joint To Joint), No.2[06.2007 - 03.2009] ADE150 |
90069-16009 |
US $4.40 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2007 - 03.2009] ADE150 *H,L=125 |
90099-33080 |
US $9.43 |
||
|
85387
|
85387
82711-1E020 Clamp, Wiring Harness[06.2007 - 03.2009] ADE150 |
82711-1E020 |
US $1.60 |
||
|
85387A
|
85387A
85387-02240 Clamp, Washer, No.2WASHER, NO.2 [06.2007 - 03.2009] ADE150 |
85387-02240 |
US $5.68 |
||
|
85387B
|
85387B
82711-1E350 Clamp, Wiring Harness[06.2007 - 03.2009] ADE150 |
82711-1E350 |
from US $2.15 |
||
| replacement | |||||
|
85387B
|
85387B
82711-06050 Clamp, Door Scuff Plate, No.2[06.2007 - 03.2009] ADE150 |
82711-06050 |
US $6.47 |
||
|
90119W0089
|
90119W0089
90119-W0089
New Genuine Part
|
90119-W0089 |
— | ||
|
9046707076C0
|
9046707076C0
90467-07076-C0 Clip, Radiator Grille |
90467-07076-C0 |
from US $0.88 |
||
