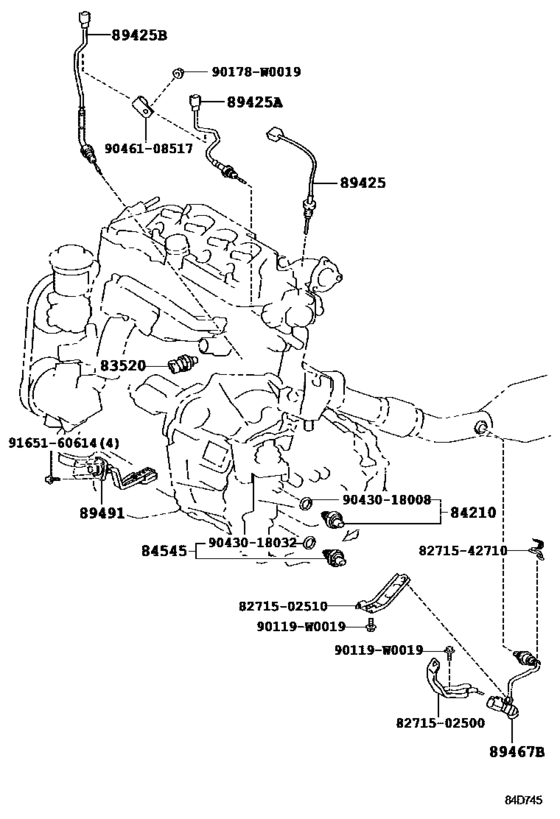

Switch & Relay & Computer ([10.2012 - 05.2015] ENGINE & TRANSMISSION (1210-1505)ADE186) Diagram Toyota AURIS/ COROLLA
- Year
- 2012 - 2015
- Sales region
- Europe
- Frame
- ADE186
- body
- HB
- ENGINE
- 1ADFTV
- TRANSMISSION
- MTM
- Model
- AURIS/ AURIS Hybrid
- From
- 10.2012
- To
- 05.2015
- Gear Shift Type
- 6F
- No.of Doors
- 5D
- Model Mark
- N
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83520
|
83520
83520-60060 Gage Assy, Oil Pressure Sender[10.2012 - 05.2015] ADE186,NDE180 |
83520-60060 |
from US $37.54 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.2012 - 05.2015] ADE186,NDE180,NRE180,ZRE185..MTM |
84210-52050 |
from US $20.67 |
||
|
84545
|
84545
84545-52010 Switch, Neutral Position[10.2012 - 05.2015] ADE186; NDE180,NRE180..LHD..6F START & STOP SYSTEM PACKAGE |
84545-52010 |
US $46.66 |
||
|
89425
|
89425
89425-20400
Sensor, Exhaust Gas Temperature
[10.2012 - 05.2015] ADE186 |
89425-20400 |
— | ||
|
89425A
|
89425A
89425-20380
Sensor, Exhaust Gas Temperature
[10.2012 - 05.2015] ADE186 |
89425-20380 |
— | ||
|
89425B
|
89425B
89425-20390
Sensor, Exhaust Gas Temperature, No.2
[10.2012 - 05.2015] ADE186 |
89425-20390 |
— | ||
|
89467B
|
89467B
89467-20100
Sensor, Air Fuel Ratio
[10.2012 - 05.2015] ADE186 |
89467-20100 |
— | ||
|
89491
|
89491
89491-20140
Sensor, Engine Oil Level
[10.2012 - 05.2015] ADE186 |
89491-20140 |
— | ||
|
90119W0019
|
90119W0019
90119-W0019
BOLT WWASHER
|
90119-W0019 |
— | ||
| replacement | |||||
|
90119W0019
|
90119W0019
90119-A0182 New Genuine Part |
90119-A0182 |
US $2.48 |
||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
8271502500
|
8271502500
82715-02500 Bracket,wiring Harness Clamp |
82715-02500 |
US $7.28 |
||
|
8271502510
|
8271502510
82715-02510 Bracket,wiring Harness Clamp |
82715-02510 |
US $7.28 |
||
|
8271542710
|
8271542710
82715-42710 Bracket,wiring Harness Clamp |
82715-42710 |
US $2.80 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9046108517
|
9046108517
90461-08517 New Genuine Part |
90461-08517 |
US $2.18 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
