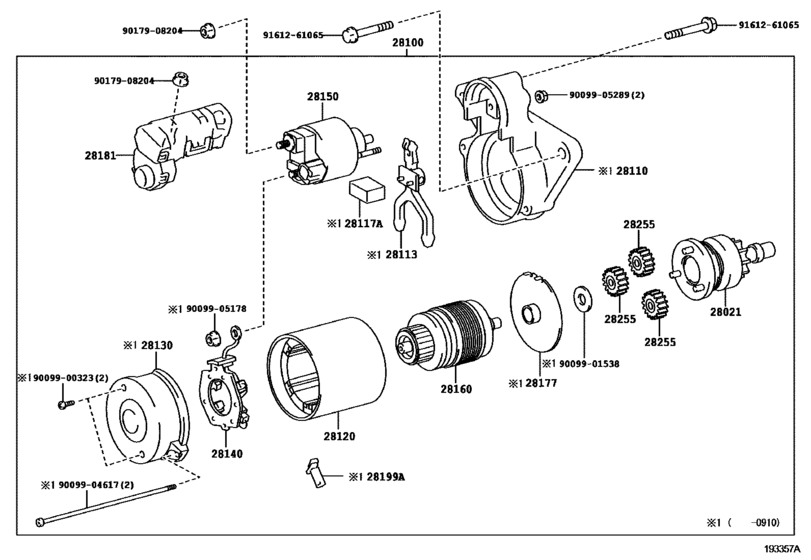

Starter ([12.2008 - ] 12V 1.6KW (0812- )1NDTV) Diagram Toyota AURIS/ COROLLA
- Year
- 2008 - 2009
- Sales region
- Europe
- Frame
- NDE150
- grade
- TERRA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- AURIS/ COROLLA
- From
- 12.2008
- To
- 10.2009
- Gear Shift Type
- 6FS
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-33090 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [12.2008 - 10.2009] 1NDTV..NDE150 |
28021-33090 |
US $75.71 |
||
|
28021
|
28021
28021-33100 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28021-33100 |
US $85.90 |
||
|
28100
|
28100
28100-33110 Starter Assy[12.2008 - 10.2009] 1NDTV..NDE150 12V 1.6KW |
28100-33110 |
US $885.25 |
||
|
28100
|
28100
28100-33120 Starter Assy[12.2008 - 10.2009] 1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC; 1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC |
28100-33120 |
US $1,135.68 |
||
| replacement | |||||
|
28100
|
28100
28100-33121 Starter Assy[12.2008 - 10.2009] 1NDTV..NDE150..LHD 12V 2.0KW,COLD AREA SPEC; 1NDTV..NDE150 12V 2.0KW,SUB COLD AREA SPEC |
28100-33121 |
US $1,135.68 |
||
|
28110
|
28110
28110-33110 Housing Assy, Starter DriveSTARTER DRIVE [12.2008 - 10.2009] 1NDTV..NDE150 |
28110-33110 |
US $66.98 |
||
|
28110
|
28110
28110-33120 Housing Assy, Starter DriveSTARTER DRIVE [12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28110-33120 |
US $77.17 |
||
|
28113
|
28113
28113-37050 Lever, Starter Pinion DriveSTARTER PINION DRIVE [12.2008 - 10.2009] 1NDTV..NDE150 |
28113-37050 |
US $11.94 |
||
|
28117A
|
28117A
28117-37050
Seal, Rubber
[12.2008 - 10.2009] 1NDTV..NDE150 |
28117-37050 |
— | ||
|
28120
|
28120
28120-33110
Yoke Assy, Starter
[12.2008 - 10.2009] 1NDTV..NDE150 |
28120-33110 |
— | ||
|
28120
|
28120
28120-38020
Yoke Assy, Starter
[12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28120-38020 |
— | ||
|
28130
|
28130
28130-33110 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [12.2008 - 10.2009] 1NDTV..NDE150 |
28130-33110 |
US $37.42 |
||
|
28130
|
28130
28130-33120 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28130-33120 |
US $37.42 |
||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [12.2008 - 10.2009] 1NDTV..NDE150 |
28140-37050 |
US $29.39 |
||
|
28150
|
28150
28150-37020
Switch Assy, Magnet Starter
[12.2008 - 10.2009] 1NDTV..NDE150;1ADFTV..ADE150..DCRL |
28150-37020 |
— | ||
|
28160
|
28160
28160-33090
Armature Assy, Starter
[12.2008 - 10.2009] 1NDTV..NDE150 |
28160-33090 |
— | ||
|
28160
|
28160
28160-38020 Armature Assy, Starter[12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28160-38020 |
US $211.12 |
||
|
28177
|
28177
28177-37050
Plate(For Starter Armature)
[12.2008 - 10.2009] 1NDTV..NDE150 |
28177-37050 |
— | ||
|
28177
|
28177
28177-38020
Plate(For Starter Armature)
[12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28177-38020 |
— | ||
|
28181
|
28181
28181-33010 Terminal, StarterSTARTER [12.2008 - 10.2009] 1NDTV..NDE150 |
28181-33010 |
US $31.30 |
||
|
28199A
|
28199A
28199-33110
Protector, Dust Starter
[12.2008 - 10.2009] 1NDTV..NDE150 |
28199-33110 |
— | ||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[12.2008 - 10.2009] 1NDTV..NDE150..LHD COLD AREA SPEC; 1NDTV..NDE150 SUB COLD AREA SPEC |
28199-46080 |
US $2.97 |
||
|
28255
|
28255
28255-33090
Gear, Planet
[12.2008 - 10.2009] 1NDTV..NDE150 |
28255-33090 |
— | ||
|
9009900323
|
9009900323
90099-00323
Screw, Starter
|
90099-00323 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009904617
|
9009904617
90099-04617
New Genuine Part
|
90099-04617 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
