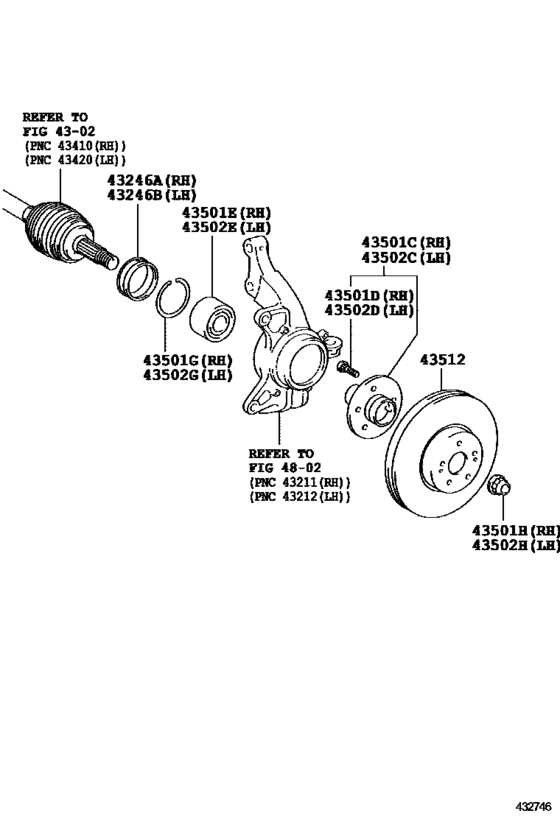

Front Axle Hub ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-73010 Deflector, Front Wheel Bearing Dust, No.1 RhFRONT WHEEL BEARING DUST, NO.1 RH [10.2012 - 10.2015] AVX40,GSX40 |
43246-73010 |
US $13.92 |
||
|
43246B
|
43246B
43246-73010 Deflector, Front Wheel Bearing Dust, No.1 RhFRONT WHEEL BEARING DUST, NO.1 RH [10.2012 - 10.2015] AVX40,GSX40 |
43246-73010 |
US $13.92 |
||
|
43501C
|
43501C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
43502-AA021 |
— | ||
|
43501D
|
43501D
90942-02049 Bolt, Hub[10.2012 - 10.2015] AVX40,GSX40 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[10.2012 - 10.2015] AVX40,GSX40 |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90080-36193
Bearing (For Front Axle Hub Rh)
[10.2012 - 10.2015] AVX40,GSX40 |
90080-36193 |
— | ||
|
43501G
|
43501G
90520-77001 Ring, Snap[10.2012 - 10.2015] AVX40,GSX40 |
90520-77001 |
from US $3.18 |
||
|
43501H
|
43501H
90080-17238 Nut (For Rear Axle Shaft Rh)[10.2012 - 10.2015] AVX40,GSX40 |
90080-17238 |
US $22.50 |
||
| replacement | |||||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[10.2012 - 10.2015] AVX40,GSX40 |
90177-22001 |
from US $2.42 |
||
|
43502C
|
43502C
43502-AA021
Hub Sub-Assy, Front Axle, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
43502-AA021 |
— | ||
|
43502D
|
43502D
90942-02049 Bolt, Hub[10.2012 - 10.2015] AVX40,GSX40 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[10.2012 - 10.2015] AVX40,GSX40 |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90080-36193
Bearing (For Front Axle Hub Rh)
[10.2012 - 10.2015] AVX40,GSX40 |
90080-36193 |
— | ||
|
43502G
|
43502G
90520-77001 Ring, Snap[10.2012 - 10.2015] AVX40,GSX40 |
90520-77001 |
from US $3.18 |
||
|
43502H
|
43502H
90080-17238 Nut (For Rear Axle Shaft Rh)[10.2012 - 10.2015] AVX40,GSX40 |
90080-17238 |
US $22.50 |
||
| replacement | |||||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[10.2012 - 10.2015] AVX40,GSX40 |
90177-22001 |
from US $2.42 |
||
|
43512
|
43512
43512-06150 Disc, Front[10.2012 - 10.2015] AVX40,GSX40 |
43512-06150 |
from US $157.35 |
||
