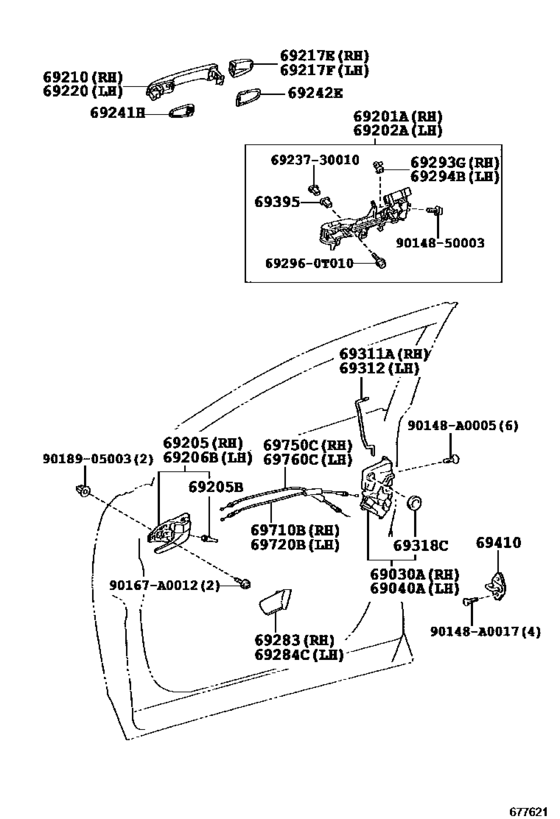

Front Door Lock & Handle ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-07020
Lock Assy, Front Door W/motor, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69030-07020 |
— | ||
|
69040A
|
69040A
69040-07020
Lock Assy, Front Door W/motor, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
69040-07020 |
— | ||
|
69201A
|
69201A
69201-0T010 Frame Sub-Assy, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [10.2012 - 10.2015] AVX40,GSX40 |
69201-0T010 |
US $57.80 |
||
|
69202A
|
69202A
69202-0T010
Frame Sub-Assy, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
69202-0T010 |
— | ||
|
69205
|
69205
69205-07020-C0
Handle Sub-Assy, Front Door Inside, Rh
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
69205-07020-C0 |
— | ||
|
69205B
|
69205B
90080-54005
Cushion(For Front Door Inside Handle)
[10.2012 - 10.2015] AVX40,GSX40 |
90080-54005 |
— | ||
|
69206B
|
69206B
69206-07020-C0
Handle Sub-Assy, Front Door Inside, Lh
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
69206-07020-C0 |
— | ||
|
69210
|
69210
69210-0T020-A0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.2012 - 10.2015] AVX40,GSX40 WHITE PEARL CS.,070 |
69210-0T020-A0 |
US $127.10 |
||
|
69210
|
69210
69210-0T020-B0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2014] AVX40,GSX40 SILVER ME.,1F7 |
69210-0T020-B0 |
— | ||
|
69210
|
69210
69210-0T020-B1
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 GRAY ME.,1G3 |
69210-0T020-B1 |
— | ||
|
69210
|
69210
69210-0T020-B5
Handle Assy, Front Door, Outside Rh
[10.2014 - 10.2015] AVX40,GSX40 DK. STEEL MC.,1H2 |
69210-0T020-B5 |
— | ||
|
69210
|
69210
69210-0T020-B6
Handle Assy, Front Door, Outside Rh
[10.2014 - 10.2015] AVX40,GSX40 SILVER ME.,1J9 |
69210-0T020-B6 |
— | ||
|
69210
|
69210
69210-0T020-C1 Handle Assy, Front Door, Outside Rh[10.2012 - 10.2015] AVX40,GSX40 ATTITUDE BLACK MC.,218 |
69210-0T020-C1 |
US $116.48 |
||
|
69210
|
69210
69210-0T020-D2
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 BLACKISH RED MC.,3R0 |
69210-0T020-D2 |
— | ||
|
69210
|
69210
69210-0T020-D3
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 DK.RED M.M.,3T0 |
69210-0T020-D3 |
— | ||
|
69210
|
69210
69210-0T020-F0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 LT.YELLOW M.M.,5B2 |
69210-0T020-F0 |
— | ||
|
69210
|
69210
69210-0T020-G0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2014] AVX40,GSX40 OLIVE M.M.,6T7 |
69210-0T020-G0 |
— | ||
|
69210
|
69210
69210-0T020-J1
Handle Assy, Front Door, Outside Rh
[10.2013 - 10.2015] AVX40,GSX40 DK.BLUE M.M.,8W6 |
69210-0T020-J1 |
— | ||
|
69210
|
69210
69210-0T020-J3
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2013] AVX40,GSX40 DK.BLUE MC.,8S6 |
69210-0T020-J3 |
— | ||
|
69217E
|
69217E
69250-0T040-A0
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2015] AVX40,GSX40 WHITE PEARL CS.,070 |
69250-0T040-A0 |
— | ||
|
69217E
|
69217E
69250-0T040-B0
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2014] AVX40,GSX40 SILVER ME.,1F7 |
69250-0T040-B0 |
— | ||
|
69217E
|
69217E
69250-0T040-B1
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2015] AVX40,GSX40 GRAY ME.,1G3 |
69250-0T040-B1 |
— | ||
|
69217E
|
69217E
69250-0T040-B5
Cover, Front Door Outside Handle, Rh
[10.2014 - 10.2015] AVX40,GSX40 DK. STEEL MC.,1H2 |
69250-0T040-B5 |
— | ||
|
69217E
|
69217E
69250-0T040-B6
Cover, Front Door Outside Handle, Rh
[10.2014 - 10.2015] AVX40,GSX40 SILVER ME.,1J9 |
69250-0T040-B6 |
— | ||
|
69217E
|
69217E
69250-0T040-C1 Cover, Front Door Outside Handle, Rh[10.2012 - 10.2015] AVX40,GSX40 ATTITUDE BLACK MC.,218 |
69250-0T040-C1 |
US $17.47 |
||
|
69217E
|
69217E
69250-0T040-D2
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2015] AVX40,GSX40 BLACKISH RED MC.,3R0 |
69250-0T040-D2 |
— | ||
|
69217E
|
69217E
69250-0T040-D3
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2015] AVX40,GSX40 DK.RED M.M.,3T0 |
69250-0T040-D3 |
— | ||
|
69217E
|
69217E
69250-0T040-F0
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2015] AVX40,GSX40 LT.YELLOW M.M.,5B2 |
69250-0T040-F0 |
— | ||
|
69217E
|
69217E
69250-0T040-G0
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2014] AVX40,GSX40 OLIVE M.M.,6T7 |
69250-0T040-G0 |
— | ||
|
69217E
|
69217E
69250-0T040-J1
Cover, Front Door Outside Handle, Rh
[10.2013 - 10.2015] AVX40,GSX40 DK.BLUE M.M.,8W6 |
69250-0T040-J1 |
— | ||
|
69217E
|
69217E
69250-0T040-J3
Cover, Front Door Outside Handle, Rh
[10.2012 - 10.2013] AVX40,GSX40 DK.BLUE MC.,8S6 |
69250-0T040-J3 |
— | ||
|
69217F
|
69217F
69250-0T030-A0
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 WHITE PEARL CS.,070 |
69250-0T030-A0 |
— | ||
|
69217F
|
69217F
69250-0T030-B0
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2014] AVX40,GSX40 SILVER ME.,1F7 |
69250-0T030-B0 |
— | ||
|
69217F
|
69217F
69250-0T030-B1
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 GRAY ME.,1G3 |
69250-0T030-B1 |
— | ||
|
69217F
|
69217F
69250-0T030-B5
Cover, Front Door Outside Handle, Lh
[10.2014 - 10.2015] AVX40,GSX40 DK. STEEL MC.,1H2 |
69250-0T030-B5 |
— | ||
|
69217F
|
69217F
69250-0T030-B6
Cover, Front Door Outside Handle, Lh
[10.2014 - 10.2015] AVX40,GSX40 SILVER ME.,1J9 |
69250-0T030-B6 |
— | ||
|
69217F
|
69217F
69250-0T030-C1 Cover, Front Door Outside Handle, Lh[10.2012 - 10.2015] AVX40,GSX40 ATTITUDE BLACK MC.,218 |
69250-0T030-C1 |
US $9.76 |
||
|
69217F
|
69217F
69250-0T030-D2
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 BLACKISH RED MC.,3R0 |
69250-0T030-D2 |
— | ||
|
69217F
|
69217F
69250-0T030-D3
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 DK.RED M.M.,3T0 |
69250-0T030-D3 |
— | ||
|
69217F
|
69217F
69250-0T030-F0
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2015] AVX40,GSX40 LT.YELLOW M.M.,5B2 |
69250-0T030-F0 |
— | ||
|
69217F
|
69217F
69250-0T030-G0
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2014] AVX40,GSX40 OLIVE M.M.,6T7 |
69250-0T030-G0 |
— | ||
|
69217F
|
69217F
69250-0T030-J1
Cover, Front Door Outside Handle, Lh
[10.2013 - 10.2015] AVX40,GSX40 DK.BLUE M.M.,8W6 |
69250-0T030-J1 |
— | ||
|
69217F
|
69217F
69250-0T030-J3
Cover, Front Door Outside Handle, Lh
[10.2012 - 10.2013] AVX40,GSX40 DK.BLUE MC.,8S6 |
69250-0T030-J3 |
— | ||
|
69220
|
69220
69210-0T020-A0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [10.2012 - 10.2015] AVX40,GSX40 WHITE PEARL CS.,070 |
69210-0T020-A0 |
US $127.10 |
||
|
69220
|
69220
69210-0T020-B0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2014] AVX40,GSX40 SILVER ME.,1F7 |
69210-0T020-B0 |
— | ||
|
69220
|
69220
69210-0T020-B1
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 GRAY ME.,1G3 |
69210-0T020-B1 |
— | ||
|
69220
|
69220
69210-0T020-B5
Handle Assy, Front Door, Outside Rh
[10.2014 - 10.2015] AVX40,GSX40 DK. STEEL MC.,1H2 |
69210-0T020-B5 |
— | ||
|
69220
|
69220
69210-0T020-B6
Handle Assy, Front Door, Outside Rh
[10.2014 - 10.2015] AVX40,GSX40 SILVER ME.,1J9 |
69210-0T020-B6 |
— | ||
|
69220
|
69220
69210-0T020-C1 Handle Assy, Front Door, Outside Rh[10.2012 - 10.2015] AVX40,GSX40 ATTITUDE BLACK MC.,218 |
69210-0T020-C1 |
US $116.48 |
||
|
69220
|
69220
69210-0T020-D2
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 BLACKISH RED MC.,3R0 |
69210-0T020-D2 |
— | ||
|
69220
|
69220
69210-0T020-D3
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 DK.RED M.M.,3T0 |
69210-0T020-D3 |
— | ||
|
69220
|
69220
69210-0T020-F0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2015] AVX40,GSX40 LT.YELLOW M.M.,5B2 |
69210-0T020-F0 |
— | ||
|
69220
|
69220
69210-0T020-G0
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2014] AVX40,GSX40 OLIVE M.M.,6T7 |
69210-0T020-G0 |
— | ||
|
69220
|
69220
69210-0T020-J1
Handle Assy, Front Door, Outside Rh
[10.2013 - 10.2015] AVX40,GSX40 DK.BLUE M.M.,8W6 |
69210-0T020-J1 |
— | ||
|
69220
|
69220
69210-0T020-J3
Handle Assy, Front Door, Outside Rh
[10.2012 - 10.2013] AVX40,GSX40 DK.BLUE MC.,8S6 |
69210-0T020-J3 |
— | ||
|
69241H
|
69241H
69241-07010
Pad, Rear Door Outside Handle, Front
[10.2012 - 10.2015] AVX40,GSX40 |
69241-07010 |
— | ||
|
69242E
|
69242E
69242-07010 Pad, Rear Door Outside Handle, Front[10.2012 - 10.2015] AVX40,GSX40 |
69242-07010 |
US $0.80 |
||
|
69283
|
69283
69283-08010-C0
Plug, Front Door Inside Handle Bezel, Rh
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
69283-08010-C0 |
— | ||
|
69284C
|
69284C
69284-08010-C0 Plug, Front Door Inside Handle Bezel, Lh[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
69284-08010-C0 |
US $6.94 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[10.2012 - 10.2015] AVX40,GSX40 |
69293-12030 |
from US $2.09 |
||
|
69294B
|
69294B
69293-12040 Snap, Front Door Outside Handle[10.2012 - 10.2015] AVX40,GSX40 |
69293-12040 |
from US $2 |
||
|
69311A
|
69311A
69311-07020
Rod, Front Door Lock Open, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69311-07020 |
— | ||
|
69312
|
69312
69312-07020
Rod, Front Door Lock Open, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
69312-07020 |
— | ||
|
69318C
|
69318C
69318-04010
Seal, Door Lock Wiring Harness, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69318-04010 |
— | ||
|
69395
|
69395
69239-0T010
Bush(For Rear Door Outside Handle)
[10.2012 - 10.2015] AVX40,GSX40 |
69239-0T010 |
— | ||
|
69410
|
69410
69410-02020 Plate Assy, Front Door Lock Striker[10.2012 - 10.2015] AVX40,GSX40 |
69410-02020 |
US $15 |
||
|
69710B
|
69710B
69710-07010
Cable Assy, Front Door Lock Remote Control, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69710-07010 |
— | ||
|
69720B
|
69720B
69710-07010
Cable Assy, Front Door Lock Remote Control, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69710-07010 |
— | ||
|
69750C
|
69750C
69750-07010
Cable Assy, Front Door Inside Locking, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69750-07010 |
— | ||
|
69760C
|
69760C
69750-07010
Cable Assy, Front Door Inside Locking, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69750-07010 |
— | ||
|
90148A0005
|
90148A0005
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
90148A0017
|
90148A0017
90148-A0017
New Genuine Part
|
90148-A0017 |
— | ||
|
90167A0012
|
90167A0012
90167-A0012
New Genuine Part
|
90167-A0012 |
— | ||
|
692960T010
|
692960T010
69296-0T010 Screw, Door Inside Handle |
69296-0T010 |
US $1.07 |
||
|
6923730010
|
6923730010
69237-30010 Nut, Front Door Handle |
69237-30010 |
US $2.56 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.70 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
