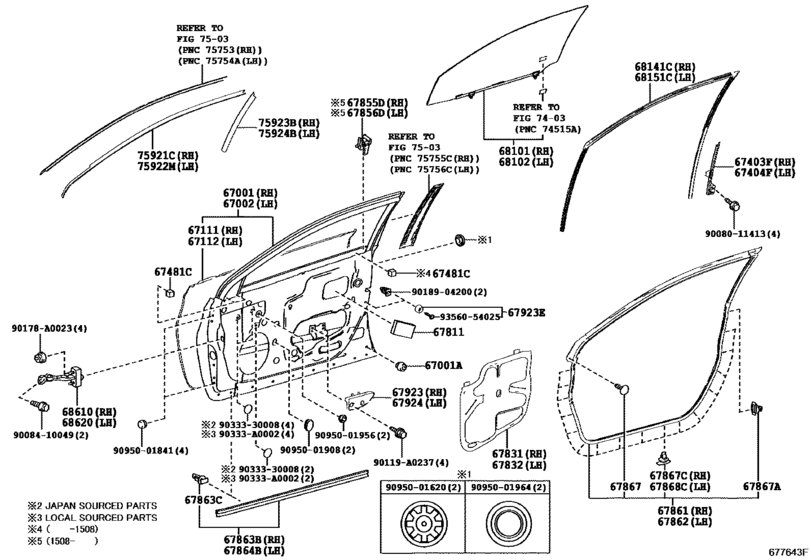

Front Door Panel & Glass ([10.2012 - ] DOOR PANEL (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-07040
Panel Sub-Assy, Front Door, Rh
[10.2012 - 07.2015] AVX40,GSX40 |
67001-07040 |
— | ||
| replacement | |||||
|
67001
|
67001
67001-07041 Panel Sub-Assy, Front Door, Rh[10.2012 - 07.2015] AVX40,GSX40 |
67001-07041 |
US $986.68 |
||
|
67001
|
67001
67001-07041 Panel Sub-Assy, Front Door, Rh[07.2015 - 10.2015] AVX40,GSX40 |
67001-07041 |
US $986.68 |
||
|
67001A
|
67001A
90084-54012
Cushion, Front Door Panel
[10.2012 - 10.2015] AVX40,GSX40 (L) |
90084-54012 |
— | ||
|
67001A
|
67001A
90541-09124 Cushion, Luggage Compartment Door[10.2012 - 10.2015] AVX40,GSX40 (J) |
90541-09124 |
from US $1.60 |
||
|
67002
|
67002
67002-07040
Panel Sub-Assy, Front Door, Lh
[10.2012 - 07.2015] AVX40,GSX40 |
67002-07040 |
— | ||
| replacement | |||||
|
67002
|
67002
67002-07041
Panel Sub-Assy, Front Door, Lh
[10.2012 - 07.2015] AVX40,GSX40 |
67002-07041 |
— | ||
|
67002
|
67002
67002-07041
Panel Sub-Assy, Front Door, Lh
[07.2015 - 10.2015] AVX40,GSX40 |
67002-07041 |
— | ||
|
67111
|
67111
67111-07020
Panel, Front Door, Outer Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67111-07020 |
— | ||
|
67112
|
67112
67112-07020 Panel, Front Door, Outer Lh[10.2012 - 10.2015] AVX40,GSX40 |
67112-07020 |
US $244.53 |
||
|
67403F
|
67403F
67403-07010
Frame Sub-Assy, Front Door, Rear Lower Rh
[10.2012 - 05.2015] AVX40,GSX40 |
67403-07010 |
— | ||
| replacement | |||||
|
67403F
|
67403F
67403-07011
Frame Sub-Assy, Front Door, Rear Lower Rh
[10.2012 - 05.2015] AVX40,GSX40 |
67403-07011 |
— | ||
|
67403F
|
67403F
67403-07011
Frame Sub-Assy, Front Door, Rear Lower Rh
[06.2015 - 10.2015] AVX40,GSX40 |
67403-07011 |
— | ||
|
67404F
|
67404F
67404-07010
Frame Sub-Assy, Front Door, Rear Lower Lh
[10.2012 - 05.2015] AVX40,GSX40 |
67404-07010 |
— | ||
| replacement | |||||
|
67404F
|
67404F
67404-07011
Frame Sub-Assy, Front Door, Rear Lower Lh
[10.2012 - 05.2015] AVX40,GSX40 |
67404-07011 |
— | ||
|
67404F
|
67404F
67404-07011
Frame Sub-Assy, Front Door, Rear Lower Lh
[06.2015 - 10.2015] AVX40,GSX40 |
67404-07011 |
— | ||
|
67481C
|
67481C
67481-07010
Silencer, Quarter Vent
[08.2015 - 10.2015] AVX40,GSX40 |
67481-07010 |
— | ||
|
67811
|
67811
67811-AA040
Pad, Front Door Silencer
[10.2012 - 10.2015] AVX40,GSX40 |
67811-AA040 |
— | ||
|
67831
|
67831
67831-07060
Cover, Front Door Service Hole, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67831-07060 |
— | ||
|
67832
|
67832
67832-07040
Cover, Front Door Service Hole, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
67832-07040 |
— | ||
|
67855D
|
67855D
67855-07010
Protector, Front Door Panel, Rh
[08.2015 - 10.2015] AVX40,GSX40 |
67855-07010 |
— | ||
|
67856D
|
67856D
67856-07010 Protector, Front Door Panel, Lh[08.2015 - 10.2015] AVX40,GSX40 |
67856-07010 |
US $3.43 |
||
|
67861
|
67861
67861-07010 Weatherstrip, Front Door, Rh[10.2012 - 10.2015] AVX40,GSX40 |
67861-07010 |
US $115.13 |
||
|
67862
|
67862
67862-07010 Weatherstrip, Front Door, Lh[10.2012 - 10.2015] AVX40,GSX40 |
67862-07010 |
US $113.45 |
||
|
67863B
|
67863B
67863-07010
Weatherstrip, Front Door, No.2 Rh
[10.2012 - 08.2015] AVX40,GSX40 |
67863-07010 |
— | ||
|
67863B
|
67863B
67863-07011
Weatherstrip, Front Door, No.2 Rh
[08.2015 - 10.2015] AVX40,GSX40 |
67863-07011 |
— | ||
|
67863B
|
67863B
67863-07012
Weatherstrip, Front Door, No.2 Rh
[10.2015 -] AVX40,GSX40 |
67863-07012 |
— | ||
|
67863C
|
67863C
67867-06120
Clip(For Front Door No.2 Weatherstrip)
[10.2015 -] AVX40,GSX40 |
67867-06120 |
— | ||
|
67863C
|
67863C
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.2012 - 08.2015] AVX40,GSX40 |
67867-12150 |
from US $1.60 |
||
|
67863C
|
67863C
67867-50050 Retainer, Rh(For Front Door No.2 Weatherstrip)[08.2015 - 10.2015] AVX40,GSX40 |
67867-50050 |
US $1.60 |
||
|
67864B
|
67864B
67863-07010
Weatherstrip, Front Door, No.2 Rh
[10.2012 - 08.2015] AVX40,GSX40 |
67863-07010 |
— | ||
|
67864B
|
67864B
67863-07011
Weatherstrip, Front Door, No.2 Rh
[08.2015 - 10.2015] AVX40,GSX40 |
67863-07011 |
— | ||
|
67864B
|
67864B
67863-07012
Weatherstrip, Front Door, No.2 Rh
[10.2015 -] AVX40,GSX40 |
67863-07012 |
— | ||
|
67867
|
67867
67869-22010 Clip, Door Glass Weatherstrip(For Front Door)[10.2012 - 10.2015] AVX40,GSX40 |
67869-22010 |
US $1.60 |
||
|
67867A
|
67867A
90467-04034 Clip[10.2012 - 10.2015] AVX40,GSX40 |
90467-04034 |
US $0.96 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.2012 - 10.2015] AVX40,GSX40 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[10.2012 - 10.2015] AVX40,GSX40 |
67867-12150 |
from US $1.60 |
||
|
67923
|
67923
67923-06110
Cushion, Front Door Stiffener, No.1
[10.2012 - 10.2015] AVX40,GSX40 |
67923-06110 |
— | ||
|
67923E
|
67923E
67923-24030 Cushion, Front Door Stiffener, No.1[10.2012 - 10.2015] AVX40,GSX40 |
67923-24030 |
from US $6.34 |
||
|
67924
|
67924
67924-06040
Cushion, Front Door Stiffener, No.2
[10.2012 - 10.2015] AVX40,GSX40 |
67924-06040 |
— | ||
|
68101
|
68101
68101-07030
Glass Sub-Assy, Front Door, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
68101-07030 |
— | ||
|
68102
|
68102
68102-07030
Glass Sub-Assy, Front Door, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
68102-07030 |
— | ||
|
68141C
|
68141C
68141-07020
Run, Front Door Glass, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
68141-07020 |
— | ||
|
68151C
|
68151C
68151-07020
Run, Front Door Glass, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
68151-07020 |
— | ||
|
68610
|
68610
68610-07020
Check Assy, Front Door
[10.2012 - 10.2015] AVX40,GSX40 |
68610-07020 |
— | ||
|
68620
|
68620
68620-07020 Check Assy, Front Door, Lh[10.2012 - 10.2015] AVX40,GSX40 |
68620-07020 |
US $84.71 |
||
|
75921C
|
75921C
75985-07010
Tape, Black Out, No.1 Rh
[10.2012 - 10.2015] AVX40,GSX40 |
75985-07010 |
— | ||
|
75922M
|
75922M
75986-07010 Tape, Black Out, No.1 Lh[10.2012 - 10.2015] AVX40,GSX40 |
75986-07010 |
US $23.69 |
||
|
75923B
|
75923B
75975-07010 Tape, Black Out, No.2 Rh[10.2012 - 10.2015] AVX40,GSX40 |
75975-07010 |
US $9.83 |
||
|
75924B
|
75924B
75976-07010 Tape, Black Out, No.2 Lh[10.2012 - 10.2015] AVX40,GSX40 |
75976-07010 |
US $9.44 |
||
|
90119A0237
|
90119A0237
90119-A0237
New Genuine Part
|
90119-A0237 |
— | ||
|
90178A0023
|
90178A0023
90178-A0023
Nut, Wire Adjusting, No.2
|
90178-A0023 |
— | ||
|
90333A0002
|
90333A0002
90333-A0002
New Genuine Part
|
90333-A0002 |
— | ||
|
9008011413
|
9008011413
90080-11413
New Genuine Part
|
90080-11413 |
— | ||
|
9008410049
|
9008410049
90084-10049
New Genuine Part
|
90084-10049 |
— | ||
|
9018904200
|
9018904200
90189-04200 GROMMET SCREW |
90189-04200 |
from US $0.80 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.76 |
||
|
9095001908
|
9095001908
90950-01908 PLUG HOLE |
90950-01908 |
US $2.88 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
|
9095001964
|
9095001964
90950-01964 PLUG HOLE |
90950-01964 |
from US $1.76 |
||
|
9356054025
|
9356054025
93560-54025 SCREW |
93560-54025 |
US $0.52 |
||
