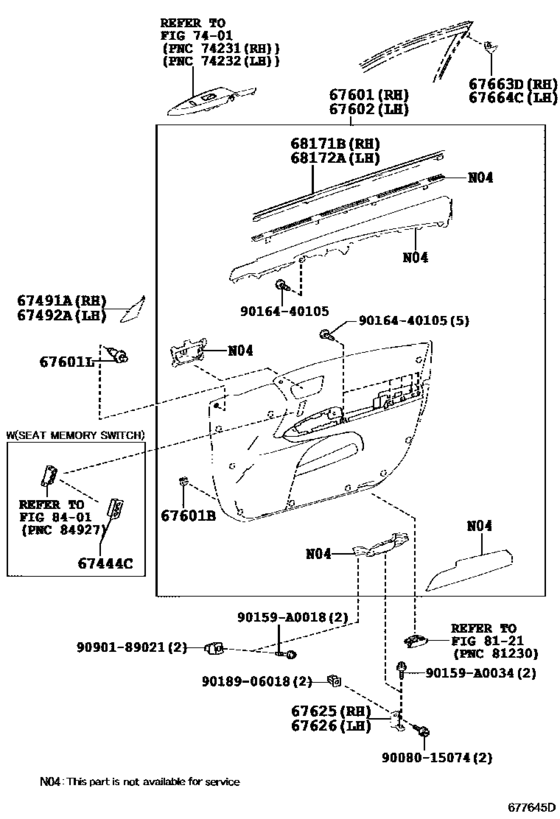

Front Door Panel & Glass ([10.2012 - ] DOOR TRIM (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67444C
|
67444C
84764-07010-A0
Plate, Front Door Inside Panel, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO FLAXEN,TRIM0#; AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY),FLAXEN,TRIM0# |
84764-07010-A0 |
— | ||
|
67444C
|
67444C
84764-07010-B0
Plate, Front Door Inside Panel, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO LT.GRAY,TRIM1#; AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY),LT.GRAY,TRIM1# |
84764-07010-B0 |
— | ||
|
67444C
|
67444C
84764-07010-C0
Plate, Front Door Inside Panel, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLETO BLACK,TRIM2#; AVX40,GSX40..XLE,XLEPR WITH(SEAT HEATER & SEAT MEMORY),BLACK,TRIM2# |
84764-07010-C0 |
— | ||
|
67491A
|
67491A
67491-07010
Garnish, Front Door Lower Frame Bracket, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67491-07010 |
— | ||
|
67492A
|
67492A
67492-07010
Garnish, Front Door Lower Frame Bracket, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
67492-07010 |
— | ||
|
67601
|
67601
67610-07080-C7
Board Sub-Assy, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67610-07080-C7 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07130-C0
Board Sub-Assy, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67610-07130-C0 |
— | ||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07080-C8
Board Sub-Assy, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67610-07080-C8 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07130-C1 Board Sub-Assy, Front Door Trim, Rh[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67610-07130-C1 |
US $448.07 |
||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07080-C9
Board Sub-Assy, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67610-07080-C9 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07130-C2
PANEL ASSY DOOR
[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67610-07130-C2 |
— | ||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07081-C7
Board Sub-Assy, Front Door Trim, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67610-07081-C7 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07150-C0
Board Sub-Assy, Front Door Trim, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67610-07150-C0 |
— | ||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07081-C8
Board Sub-Assy, Front Door Trim, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67610-07081-C8 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07150-C1
Board Sub-Assy, Front Door Trim, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67610-07150-C1 |
— | ||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07081-C9
Board Sub-Assy, Front Door Trim, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67610-07081-C9 |
— | ||
| replacements | |||||
|
67601
|
67601
67610-07150-C2
New Genuine Part
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67610-07150-C2 |
— | ||
|
67601
|
67601
67855-07010
Protector, Front Door Panel, Rh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67855-07010 |
— | ||
|
67601
|
67601
67610-07130-C0
Board Sub-Assy, Front Door Trim, Rh
[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/BLACK,TRIM2#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/BLACK,TRIM2# |
67610-07130-C0 |
— | ||
|
67601
|
67601
67610-07130-C1 Board Sub-Assy, Front Door Trim, Rh[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/CAFFE,TRIM0#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/CAFFE,TRIM0# |
67610-07130-C1 |
US $448.07 |
||
|
67601
|
67601
67610-07130-C3
Board Sub-Assy, Front Door Trim, Rh
[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/DK GRAY,TRIM1#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/DK GRAY,TRIM1# |
67610-07130-C3 |
— | ||
|
67601
|
67601
67610-07150-C0
Board Sub-Assy, Front Door Trim, Rh
[10.2015 -] AVX40,GSX40..LIMD BLACK/BLACK,TRIM2# |
67610-07150-C0 |
— | ||
|
67601
|
67601
67610-07150-C1
Board Sub-Assy, Front Door Trim, Rh
[10.2015 -] AVX40,GSX40..LIMD BLACK/CAFFE,TRIM0# |
67610-07150-C1 |
— | ||
|
67601
|
67601
67610-07150-C3
Board Sub-Assy, Front Door Trim, Rh
[10.2015 -] AVX40,GSX40..LIMD BLACK/DK GRAY,TRIM1# |
67610-07150-C3 |
— | ||
|
67601B
|
67601B
67773-0E020 Clip, Rear Window Side Garnish[10.2012 - 10.2015] AVX40,GSX40 |
67773-0E020 |
US $1.60 |
||
|
67601L
|
67601L
90467-A0016-C0
Clip, Radiator Grille
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
90467-A0016-C0 |
— | ||
|
67602
|
67602
67620-07091-C7
Board Sub-Assy, Front Door Trim, Lh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67620-07091-C7 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07190-C0
Board Sub-Assy, Front Door Trim, Lh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67620-07190-C0 |
— | ||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM2#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM2# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07091-C8
Board Sub-Assy, Front Door Trim, Lh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67620-07091-C8 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07190-C1
Board Sub-Assy, Front Door Trim, Lh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67620-07190-C1 |
— | ||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM0#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM0# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07091-C9
Board Sub-Assy, Front Door Trim, Lh
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67620-07091-C9 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07190-C2
PANEL ASSY DOOR
[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67620-07190-C2 |
— | ||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2014 - 10.2015] GSX40..LIMD KOREA SPEC&AUDIO-AVN(KOREA SPEC) & 11SPEAKER,TRIM1#; AVX40,GSX40..LIMD AUDIO-AVN & 11SPEAKER,TRIM1# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07120-C7
Board Sub-Assy, Front Door Trim, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67620-07120-C7 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07121-C7
Board Sub-Assy, Front Door Trim, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67620-07121-C7 |
— | ||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM2# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07120-C8
Board Sub-Assy, Front Door Trim, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67620-07120-C8 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07121-C8 Board Sub-Assy, Front Door Trim, Lh[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67620-07121-C8 |
US $392.89 |
||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM0# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07120-C9
Board Sub-Assy, Front Door Trim, Lh
[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67620-07120-C9 |
— | ||
| replacements | |||||
|
67602
|
67602
67620-07121-C9
PANEL ASSY DOOR
[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67620-07121-C9 |
— | ||
|
67602
|
67602
67856-07010 Protector, Front Door Panel, Lh[10.2012 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
67856-07010 |
US $3.43 |
||
|
67602
|
67602
67620-07121-20
Board Sub-Assy, Front Door Trim, Lh
[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/DK GRAY,TRIM1#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/DK GRAY,TRIM1# |
67620-07121-20 |
— | ||
|
67602
|
67602
67620-07121-C7
Board Sub-Assy, Front Door Trim, Lh
[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/AMBER,TRIM2#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/AMBER,TRIM2# |
67620-07121-C7 |
— | ||
|
67602
|
67602
67620-07121-C8 Board Sub-Assy, Front Door Trim, Lh[10.2015 -] GSX40..LIMD AUDIO-AVN(KOREA SPEC) & 11SPEAKER,BLACK/CAFFE,TRIM0#; AVX40,GSX40..LIMD AUDIO-*DA & 9SPEAKER,BLACK/CAFFE,TRIM0# |
67620-07121-C8 |
US $392.89 |
||
|
67602
|
67602
67620-07190-C0
Board Sub-Assy, Front Door Trim, Lh
[10.2015 -] AVX40,GSX40..LIMD BLACK/BLACK,TRIM2# |
67620-07190-C0 |
— | ||
|
67602
|
67602
67620-07190-C1
Board Sub-Assy, Front Door Trim, Lh
[10.2015 -] AVX40,GSX40..LIMD BLACK/CAFFE,TRIM0# |
67620-07190-C1 |
— | ||
|
67602
|
67602
67620-07190-C3
Board Sub-Assy, Front Door Trim, Lh
[10.2015 -] AVX40,GSX40..LIMD BLACK/DK GRAY,TRIM1# |
67620-07190-C3 |
— | ||
|
67625
|
67625
67625-07010
Bracket, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67625-07010 |
— | ||
|
67626
|
67626
67625-07010
Bracket, Front Door Trim, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67625-07010 |
— | ||
|
67663D
|
67663D
67663-06060
Garnish, Door Frame, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67663-06060 |
— | ||
|
67663D
|
67663D
67663-06240
Garnish, Door Frame, Rh
[10.2015 -] AVX40,GSX40 |
67663-06240 |
— | ||
|
67664C
|
67664C
67663-06240
Garnish, Door Frame, Rh
[10.2015 -] AVX40,GSX40 |
67663-06240 |
— | ||
|
67664C
|
67664C
67664-06060
Garnish, Door Frame, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
67664-06060 |
— | ||
|
68171B
|
68171B
68171-07010
Weatherstrip, Front Door Glass, Inner Rh
[10.2012 - 10.2015] AVX40,GSX40 |
68171-07010 |
— | ||
| replacements | |||||
|
68171B
|
68171B
67855-07010
Protector, Front Door Panel, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
67855-07010 |
— | ||
|
68171B
|
68171B
68171-07011
Weatherstrip, Front Door Glass, Inner Rh
[10.2012 - 10.2015] AVX40,GSX40 |
68171-07011 |
— | ||
|
68171B
|
68171B
68171-07011
Weatherstrip, Front Door Glass, Inner Rh
[10.2015 -] AVX40,GSX40 |
68171-07011 |
— | ||
|
68172A
|
68172A
68172-07010
Weatherstrip, Front Door Glass, Inner Lh
[10.2012 - 10.2015] AVX40,GSX40 |
68172-07010 |
— | ||
| replacements | |||||
|
68172A
|
68172A
67856-07010 Protector, Front Door Panel, Lh[10.2012 - 10.2015] AVX40,GSX40 |
67856-07010 |
US $3.43 |
||
|
68172A
|
68172A
68172-07011
Weatherstrip, Front Door Glass, Inner Lh
[10.2012 - 10.2015] AVX40,GSX40 |
68172-07011 |
— | ||
|
68172A
|
68172A
68172-07011
Weatherstrip, Front Door Glass, Inner Lh
[10.2015 -] AVX40,GSX40 |
68172-07011 |
— | ||
|
90159A0018
|
90159A0018
90159-A0018
New Genuine Part
|
90159-A0018 |
— | ||
|
90159A0034
|
90159A0034
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9008015074
|
9008015074
90080-15074 New Genuine Part |
90080-15074 |
US $0.73 |
||
|
9016440105
|
9016440105
90164-40105 SCREW BINDING |
90164-40105 |
US $1.12 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9090189021
|
9090189021
90901-89021 GROMMET SCREW |
90901-89021 |
from US $3.20 |
||
