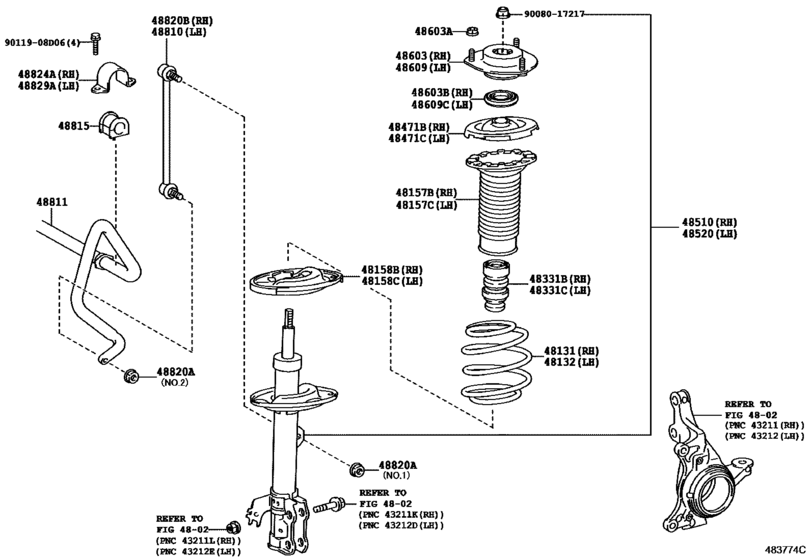

Front Spring & Shock Absorber ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-07100
Spring, Front Coil, Rh
[10.2012 - 10.2014] AVX40,GSX40 |
48131-07100 |
— | ||
|
48131
|
48131
48131-07101
Spring, Front Coil, Rh
[10.2014 - 10.2015] AVX40,GSX40 |
48131-07101 |
— | ||
|
48131
|
48131
48131-07120
Spring, Front Coil, Rh
[10.2015 -] AVX40,GSX40..LIMD,XLE,XLEPR |
48131-07120 |
— | ||
|
48132
|
48132
48132-07010
Spring, Front Coil, Lh
[10.2012 - 10.2014] AVX40,GSX40 |
48132-07010 |
— | ||
|
48132
|
48132
48132-07011
Spring, Front Coil, Lh
[10.2014 - 10.2015] AVX40,GSX40 |
48132-07011 |
— | ||
|
48132
|
48132
48132-07030
Spring, Front Coil, Lh
[10.2015 -] AVX40,GSX40..LIMD,XLE,XLEPR |
48132-07030 |
— | ||
|
48157B
|
48157B
48157-06082
Insulator, Front Coil Spring, Upper Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48157-06082 |
— | ||
|
48157B
|
48157B
48157-07020
Insulator, Front Coil Spring, Upper Rh
[10.2015 -] AVX40,GSX40 |
48157-07020 |
— | ||
|
48157C
|
48157C
48157-06082
Insulator, Front Coil Spring, Upper Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48157-06082 |
— | ||
|
48157C
|
48157C
48157-07020
Insulator, Front Coil Spring, Upper Rh
[10.2015 -] AVX40,GSX40 |
48157-07020 |
— | ||
|
48158B
|
48158B
48158-06070 Insulator, Front Coil Spring, Lower Rh[10.2012 - 10.2015] AVX40,GSX40 |
48158-06070 |
US $25.58 |
||
|
48158B
|
48158B
48158-06071
Insulator, Front Coil Spring, Lower Rh
[10.2015 -] AVX40,GSX40 |
48158-06071 |
— | ||
|
48158C
|
48158C
48158-06080
Insulator, Front Coil Spring, Lower Lh
[10.2012 - 10.2015] AVX40,GSX40 |
48158-06080 |
— | ||
|
48158C
|
48158C
48158-06081
Insulator, Front Coil Spring, Lower Lh
[10.2015 -] AVX40,GSX40 |
48158-06081 |
— | ||
|
48331B
|
48331B
48331-06050
Bumper, Front Spring, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48331-06050 |
— | ||
|
48331B
|
48331B
48331-07010 Bumper, Front Spring, Rh[10.2015 -] AVX40,GSX40 |
48331-07010 |
US $15.46 |
||
|
48331C
|
48331C
48331-06050
Bumper, Front Spring, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48331-06050 |
— | ||
|
48331C
|
48331C
48331-07010 Bumper, Front Spring, Rh[10.2015 -] AVX40,GSX40 |
48331-07010 |
US $15.46 |
||
|
48471B
|
48471B
48471-0E011
Seat, Front Coil Spring, Upper Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48471-0E011 |
— | ||
|
48471C
|
48471C
48471-0E011
Seat, Front Coil Spring, Upper Rh
[10.2012 - 10.2015] AVX40,GSX40 |
48471-0E011 |
— | ||
|
48510
|
48510
48510-09898 Absorber Assy, Shock, Front Rh[10.2012 - 10.2015] AVX40;GSX40..XLEPR MARK 48510-07100 |
48510-09898 |
US $236.07 |
||
|
48510
|
48510
48510-8Z299
Absorber Assy, Shock, Front Rh
[10.2015 -] AVX40;GSX40..XLEPR MARK 48510-07120 |
48510-8Z299 |
— | ||
|
48520
|
48520
48520-09894 Absorber Assy, Shock, Front Lh[10.2012 - 10.2015] AVX40;GSX40..XLEPR MARK 48520-07100 |
48520-09894 |
US $208.88 |
||
|
48520
|
48520
48520-8Z156
Absorber Assy, Shock, Front Lh
[10.2015 -] AVX40;GSX40..XLEPR MARK 48520-07120 |
48520-8Z156 |
— | ||
|
48603
|
48603
48609-06270 Support Sub-Assy, Front Suspension, Rh[10.2012 - 10.2015] AVX40,GSX40 |
48609-06270 |
US $114.68 |
||
|
48603A
|
48603A
90178-A0004
Nut(For Front Suspension Support)
[10.2012 - 10.2015] AVX40,GSX40 |
90178-A0004 |
— | ||
|
48603B
|
48603B
90903-63014 Bearing(For Front Suspension Support)[10.2012 - 10.2015] AVX40,GSX40 |
90903-63014 |
from US $32.07 |
||
|
48609
|
48609
48609-06270 Support Sub-Assy, Front Suspension, Rh[10.2012 - 10.2015] AVX40,GSX40 |
48609-06270 |
US $114.68 |
||
|
48609C
|
48609C
90903-63014 Bearing(For Front Suspension Support)[10.2012 - 10.2015] AVX40,GSX40 |
90903-63014 |
from US $32.07 |
||
|
48810
|
48810
48820-06090
Link Assy, Front Stabilizer, Lh
[09.2014 - 10.2015] AVX40,GSX40 (L) |
48820-06090 |
— | ||
|
48810
|
48810
48820-07030
Link Assy, Front Stabilizer, Lh
[10.2015 -] AVX40,GSX40 |
48820-07030 |
— | ||
|
48810
|
48810
48820-33040 Link Assy, Front Stabilizer[10.2012 - 09.2014] AVX40,GSX40 |
48820-33040 |
from US $53.84 |
||
|
48811
|
48811
48811-06250
Bar, Stabilizer, Front
[05.2013 - 09.2013] AVX40,GSX40 |
48811-06250 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-06251
Bar, Stabilizer, Front
[05.2013 - 09.2013] AVX40,GSX40 |
48811-06251 |
— | ||
|
48811
|
48811
48811-06251
Bar, Stabilizer, Front
[10.2013 - 10.2015] AVX40,GSX40 |
48811-06251 |
— | ||
|
48811
|
48811
48811-06260
Bar, Stabilizer, Front
[10.2012 - 05.2013] AVX40,GSX40 |
48811-06260 |
— | ||
| replacement | |||||
|
48811
|
48811
48811-06251
Bar, Stabilizer, Front
[10.2012 - 05.2013] AVX40,GSX40 |
48811-06251 |
— | ||
|
48815
|
48815
48815-06140 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [10.2012 - 10.2015] AVX40,GSX40 |
48815-06140 |
US $10.08 |
||
|
48820A
|
48820A
90080-17222
Nut(For Front Stabilizer Link)
[10.2012 - 10.2015] AVX40,GSX40 NO.1 |
90080-17222 |
— | ||
|
48820A
|
48820A
90080-17224
Nut(For Front Stabilizer Link)
[10.2012 - 10.2015] AVX40,GSX40 NO.2 |
90080-17224 |
— | ||
|
48820B
|
48820B
48820-06090
Link Assy, Front Stabilizer, Lh
[09.2014 - 10.2015] AVX40,GSX40 (L) |
48820-06090 |
— | ||
|
48820B
|
48820B
48820-07030
Link Assy, Front Stabilizer, Lh
[10.2015 -] AVX40,GSX40 |
48820-07030 |
— | ||
|
48820B
|
48820B
48820-33040 Link Assy, Front Stabilizer[10.2012 - 09.2014] AVX40,GSX40 |
48820-33040 |
from US $53.84 |
||
|
48824A
|
48824A
48824-06020
Bracket, Stabilizer, Front
[10.2012 - 10.2015] AVX40,GSX40 |
48824-06020 |
— | ||
|
48829A
|
48829A
48824-06020
Bracket, Stabilizer, Front
[10.2012 - 10.2015] AVX40,GSX40 |
48824-06020 |
— | ||
|
9011908D06
|
9011908D06
90119-08D06 BOLT W-WASHER |
90119-08D06 |
US $1.76 |
||
|
9008017217
|
9008017217
90080-17217
Nut(For Front Support To Front Shock Absorber Rh)
|
90080-17217 |
— | ||
