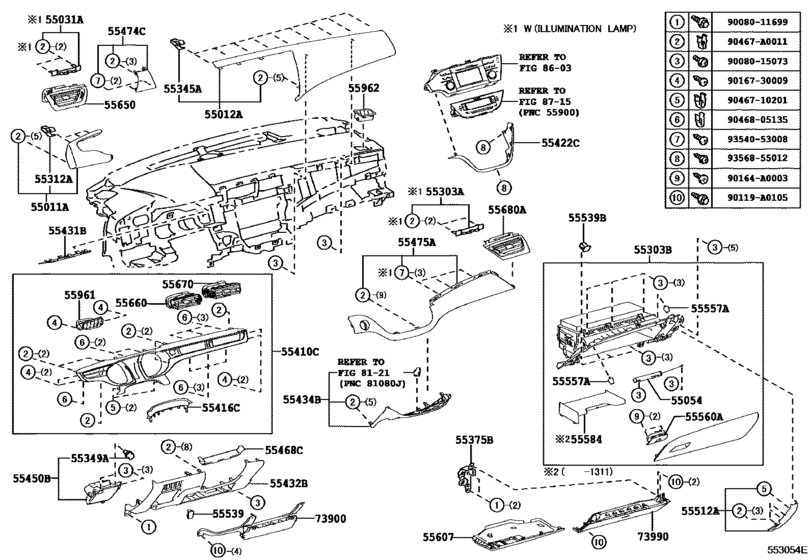

Instrument Panel & Glove Compartment ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55011A
|
55011A
55011-07010-A2
Garnish Sub-Assy, Instrument Panel, No.1
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM0# |
55011-07010-A2 |
— | ||
|
55011A
|
55011A
55011-07010-B1
Garnish Sub-Assy, Instrument Panel, No.1
[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM1# |
55011-07010-B1 |
— | ||
|
55011A
|
55011A
55011-07010-B4
Garnish Sub-Assy, Instrument Panel, No.1
[10.2015 -] AVX40,GSX40..LIMD LT GRAY,TRIM1# |
55011-07010-B4 |
— | ||
|
55011A
|
55011A
55011-07010-C2
Garnish Sub-Assy, Instrument Panel, No.1
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLE,XLEPR BLACK,TRIM2# |
55011-07010-C2 |
— | ||
|
55012A
|
55012A
55012-07010-A2
Garnish Sub-Assy, Instrument Panel, No.2
[10.2012 - 10.2015] AVX40,GSX40..LIMD FLAXEN,TRIM0# |
55012-07010-A2 |
— | ||
|
55012A
|
55012A
55012-07010-B1
Garnish Sub-Assy, Instrument Panel, No.2
[10.2012 - 10.2015] AVX40,GSX40..LIMD LT GRAY,TRIM1# |
55012-07010-B1 |
— | ||
|
55012A
|
55012A
55012-07010-B4
Garnish Sub-Assy, Instrument Panel, No.2
[10.2015 -] AVX40,GSX40..LIMD LT GRAY,TRIM1# |
55012-07010-B4 |
— | ||
|
55012A
|
55012A
55012-07010-C2
Garnish Sub-Assy, Instrument Panel, No.2
[10.2012 - 10.2015] AVX40,GSX40..LIMD,XLE,XLEPR BLACK,TRIM2# |
55012-07010-C2 |
— | ||
|
55031A
|
55031A
55031-07010
Stay Sub-Assy, Instrument Panel, No.1
[10.2013 - 10.2015] AVX40,GSX40..LIMD |
55031-07010 |
— | ||
|
55054
|
55054
55054-07010
Stopper Sub-Assy, Glove Compartment Door
[10.2012 - 10.2015] AVX40,GSX40 |
55054-07010 |
— | ||
|
55303A
|
55303A
55032-07010
Stay Sub-Assy, Instrument Panel
[10.2013 - 10.2015] AVX40,GSX40..LIMD |
55032-07010 |
— | ||
|
55303B
|
55303B
55303-07030-C0
Panel Sub-Assy, Instrument, Lower
[11.2012 - 11.2013] AVX40 BLACK,TRIM0#,1#,2# |
55303-07030-C0 |
— | ||
|
55303B
|
55303B
55303-07032-C0
Panel Sub-Assy, Instrument, Lower
[11.2013 - 01.2014] AVX40 BLACK,TRIM0#,1#,2# |
55303-07032-C0 |
— | ||
|
55303B
|
55303B
55303-07033-C0
Panel Sub-Assy, Instrument, Lower
[02.2014 - 10.2015] AVX40 BLACK,TRIM0#,1#,2# |
55303-07033-C0 |
— | ||
|
55312A
|
55312A
90467-13082-A0 Clip, Instrument Panel[10.2012 - 10.2015] AVX40,GSX40 MELLOW WHITE |
90467-13082-A0 |
from US $1.07 |
||
|
55345A
|
55345A
90467-13082-A0 Clip, Instrument Panel[10.2012 - 10.2015] AVX40,GSX40 MELLOW WHITE |
90467-13082-A0 |
from US $1.07 |
||
|
55349A
|
55349A
58959-60060 Cushion, Instrument Panel[10.2012 - 10.2015] AVX40,GSX40 |
58959-60060 |
from US $1.44 |
||
|
55375B
|
55375B
55375-06210
Bracket, Instrument Panel Lower Mounting, No.2
[10.2012 - 10.2015] AVX40,GSX40 |
55375-06210 |
— | ||
|
55410C
|
55410C
55410-07010-C1
Panel Assy, Instrument Cluster Finish
[10.2012 - 05.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07010-C1 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-07040-C0
Panel Assy, Instrument Cluster Finish
[10.2012 - 05.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07040-C0 |
— | ||
|
55410C
|
55410C
55410-07011-C1
Panel Assy, Instrument Cluster Finish
[06.2013 - 10.2014] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07011-C1 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-07040-C0
Panel Assy, Instrument Cluster Finish
[06.2013 - 10.2014] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07040-C0 |
— | ||
|
55410C
|
55410C
55410-07030-C0
Panel Assy, Instrument Cluster Finish
[10.2014 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07030-C0 |
— | ||
| replacement | |||||
|
55410C
|
55410C
55410-07031-C0
Panel Assy, Instrument Cluster Finish
[10.2014 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07031-C0 |
— | ||
|
55410C
|
55410C
55410-07031-C0
Panel Assy, Instrument Cluster Finish
[01.2017 -] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55410-07031-C0 |
— | ||
|
55416C
|
55416C
55416-07020-C1
Retainer, Instrument Cluster Finish Panel
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55416-07020-C1 |
— | ||
|
55422C
|
55422C
55422-07050
Panel, Instrument Cluster Finish, Center Upper
[10.2012 - 10.2015] AVX40,GSX40 |
55422-07050 |
— | ||
|
55431B
|
55431B
55431-07050-C0
Panel, Instrument Panel Finish, Upper
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55431-07050-C0 |
— | ||
|
55432B
|
55432B
55432-07040-C0
Panel, Instrument Panel Finish, Lower
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55432-07040-C0 |
— | ||
|
55432B
|
55432B
55432-07060-C0
Panel, Instrument Panel Finish, Lower
[10.2015 -] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55432-07060-C0 |
— | ||
|
55434B
|
55434B
55434-07040-C0
Panel, Instrument Panel Finish, Lower Center
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55434-07040-C0 |
— | ||
|
55450B
|
55450B
55450-07010-C0
Box Assy, Coin
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55450-07010-C0 |
— | ||
|
55450B
|
55450B
55450-07011-C0
Box Assy, Coin
[02.2017 -] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55450-07011-C0 |
— | ||
|
55468C
|
55468C
55468-07030
Seal, Instrument Cluster Finish Panel, No.1
[10.2012 - 10.2015] AVX40,GSX40 |
55468-07030 |
— | ||
|
55474C
|
55474C
55474-07050-C0
Garnish, Instrument Cluster Finish Panel, No.1
[10.2012 - 10.2013] AVX40,GSX40 BLACK,TRIM1# |
55474-07050-C0 |
— | ||
| replacement | |||||
|
55474C
|
55474C
55474-07051-C0
Garnish, Instrument Cluster Finish Panel, No.1
[10.2012 - 10.2013] AVX40,GSX40 BLACK,TRIM1# |
55474-07051-C0 |
— | ||
|
55474C
|
55474C
55474-07050-E2
Garnish, Instrument Cluster Finish Panel, No.1
[10.2012 - 10.2013] AVX40,GSX40 BROWN,TRIM0#,2# |
55474-07050-E2 |
— | ||
| replacement | |||||
|
55474C
|
55474C
55474-07051-E2
Garnish, Instrument Cluster Finish Panel, No.1
[10.2012 - 10.2013] AVX40,GSX40 BROWN,TRIM0#,2# |
55474-07051-E2 |
— | ||
|
55474C
|
55474C
55474-07051-C0
Garnish, Instrument Cluster Finish Panel, No.1
[10.2013 - 10.2015] AVX40,GSX40 BLACK,TRIM1# |
55474-07051-C0 |
— | ||
|
55474C
|
55474C
55474-07051-E2
Garnish, Instrument Cluster Finish Panel, No.1
[10.2013 - 10.2015] AVX40,GSX40..LIMD,XLE,XLEPR BROWN,TRIM0#,2# |
55474-07051-E2 |
— | ||
|
55474C
|
55474C
55474-07080-E0
Garnish, Instrument Cluster Finish Panel, No.1
[10.2015 -] AVX40,GSX40..LIMD,XLE,XLEPR BROWN,TRIM0#,1#,2# |
55474-07080-E0 |
— | ||
|
55475A
|
55475A
55475-07070-C0
Garnish, Instrument Cluster Finish Panel, No.2
[10.2012 - 10.2013] AVX40,GSX40..LIMD BLACK,TRIM1# |
55475-07070-C0 |
— | ||
|
55475A
|
55475A
55475-07070-E1 Garnish, Instrument Cluster Finish Panel, No.2[10.2012 - 10.2013] AVX40,GSX40..LIMD BROWN,TRIM0#,2# |
55475-07070-E1 |
US $142.88 |
||
|
55475A
|
55475A
55475-07080-C0
Garnish, Instrument Cluster Finish Panel, No.2
[10.2013 - 10.2015] AVX40,GSX40..LIMD BLACK,TRIM1# |
55475-07080-C0 |
— | ||
|
55475A
|
55475A
55475-07080-E1
Garnish, Instrument Cluster Finish Panel, No.2
[10.2013 - 10.2015] AVX40,GSX40..LIMD BROWN,TRIM0#,2# |
55475-07080-E1 |
— | ||
|
55475A
|
55475A
55475-07100-E0
Garnish, Instrument Cluster Finish Panel, No.2
[10.2015 -] AVX40,GSX40..LIMD BROWN,TRIM0#,1#,2# |
55475-07100-E0 |
— | ||
|
55512A
|
55512A
55312-07020-C0
Plate, Glove Compartment
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55312-07020-C0 |
— | ||
|
55539
|
55539
55539-06090-C0
Cover, Spare Switch Hole
[10.2015 -] AVX40,GSX40 BLACK,TRIM0#,1#,2#; GSX40..LIMD KOREA SPEC&CRUISE CONTROL-WITH&HEADLAMP-LED,BLACK,TRIM0#,1#,2#; GSX40..LIMD KOREA SPEC&HEADLAMP-LED,BLACK,TRIM0#,1#,2# |
55539-06090-C0 |
— | ||
|
55539
|
55539
55539-52060-C0 Cover, Spare Switch Hole[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55539-52060-C0 |
from US $3.53 |
||
|
55539B
|
55539B
55539-0E010
Cover, Spare Switch Hole
[10.2012 - 10.2015] AVX40,GSX40 |
55539-0E010 |
— | ||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [10.2012 - 10.2015] AVX40,GSX40 |
55557-60050 |
from US $0.82 |
||
|
55560A
|
55560A
55560-06010-C0
Lock Assy, Glove Compartment Door
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55560-06010-C0 |
— | ||
|
55584
|
55584
55584-07010
Holder, Map
[10.2012 - 11.2013] AVX40,GSX40 |
55584-07010 |
— | ||
|
55607
|
55607
55607-06101
Cover Sub-Assy, Instrument Panel Under, No.2
[11.2012 - 10.2015] AVX40 |
55607-06101 |
— | ||
|
55650
|
55650
55650-07040
Register Assy, Instrument Panel, No.1
[10.2012 - 10.2015] AVX40,GSX40 |
55650-07040 |
— | ||
|
55660
|
55660
55660-07040
Register Assy, Instrument Panel, No.2
[10.2012 - 10.2015] AVX40,GSX40 |
55660-07040 |
— | ||
|
55670
|
55670
55670-07030
Register Assy, Instrument Panel, No.3
[10.2012 - 10.2015] AVX40,GSX40 |
55670-07030 |
— | ||
|
55680A
|
55680A
55680-07040 Register Assy, Instrument Panel, No.4[10.2012 - 10.2015] AVX40,GSX40 |
55680-07040 |
US $154.21 |
||
|
55961
|
55961
55961-07030
Nozzle, Side Defroster, No.1
[10.2012 - 10.2015] AVX40,GSX40 |
55961-07030 |
— | ||
|
55962
|
55962
55962-07030-C0
Nozzle, Side Defroster, No.2
[10.2012 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
55962-07030-C0 |
— | ||
|
73900
|
73900
73900-06020-C0
Air Bag Assy, Instrument Panel, Lower No.1
[10.2012 - 01.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73900-06020-C0 |
— | ||
| replacement | |||||
|
73900
|
73900
73900-06021-C0
Air Bag Assy, Instrument Panel, Lower No.1
[10.2012 - 01.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73900-06021-C0 |
— | ||
|
73900
|
73900
73900-06021-C0
Air Bag Assy, Instrument Panel, Lower No.1
[02.2013 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73900-06021-C0 |
— | ||
|
73990
|
73990
73990-07010-C0
Air Bag Assy, Instrument Panel, Lower No.2
[10.2012 - 01.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73990-07010-C0 |
— | ||
| replacement | |||||
|
73990
|
73990
73990-07011-C0
Air Bag Assy, Instrument Panel, Lower No.2
[10.2012 - 01.2013] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73990-07011-C0 |
— | ||
|
73990
|
73990
73990-07011-C0
Air Bag Assy, Instrument Panel, Lower No.2
[02.2013 - 10.2015] AVX40,GSX40 BLACK,TRIM0#,1#,2# |
73990-07011-C0 |
— | ||
|
90119A0105
|
90119A0105
90119-A0105
New Genuine Part
|
90119-A0105 |
— | ||
|
90164A0003
|
90164A0003
90164-A0003
New Genuine Part
|
90164-A0003 |
— | ||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9016730009
|
9016730009
90167-30009 SCREW PAN TAPPING |
90167-30009 |
US $0.73 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.03 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9354053008
|
9354053008
93540-53008 New Genuine Part |
93540-53008 |
US $0.70 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
